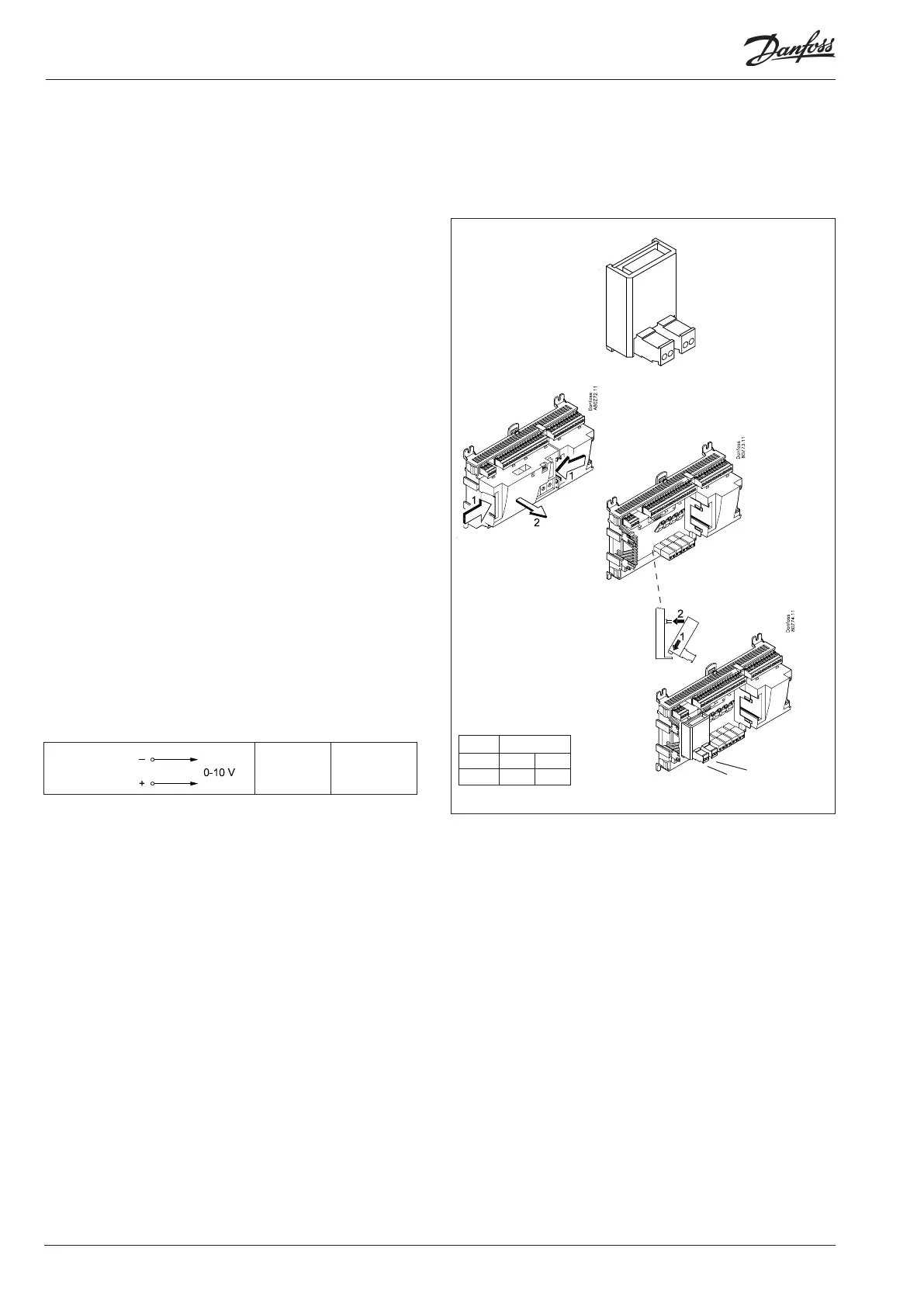

26 Capacity controller RS8HE202 © Danfoss 2017-07 AK-PC 781A
Extension module AK-OB 110
AO1
AO2
AO
AO 0 - 10 V
Module
1
Point 24 25
Type AO1 AO2
Function
The module contains two analog voltage outputs of 0 – 10 V.
Supply voltage
The supply voltage to the module comes from the controller
module.
Placing
The module is placed on the PC board in the controller module.
Point
The two outputs have points 24 and 25. They are shown on the
earlier page where the controller is also mentioned.
Max. load
I < 2.5 mA
R > 4 kohm
