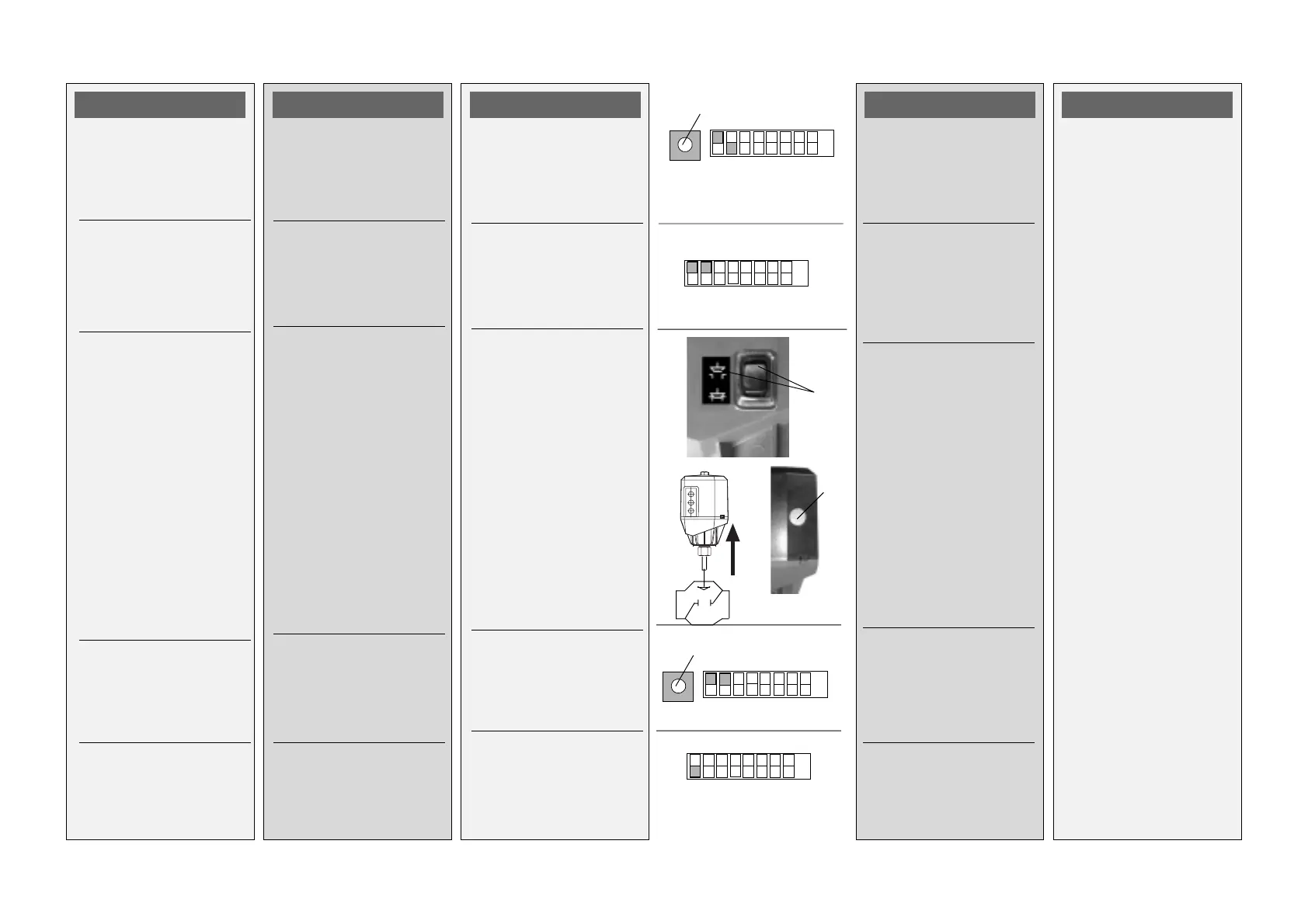

AME (-H) 110, 113
DEUTSCH
3. Taster drücken
Endlage “Ventil ZU” ist
eingestellt
Endlage “Ventil AUF”
einstellen
1. Schalter 1 und 2
einstellen
2.Taster drücken bis
das Ventil ganz
geöffnet ist und die.
Laufrichtungsanzeige
zum Stillstand kommt
3. Taster drücken
Endlage “Ventil AUF” ist
eingestellt
4. Schalter 1 auf
Standardeinstellung
stellen
ON
OFF
1 2
ON
OFF
1
2
ON
OFF
1
2
ON
OFF
1
ENGLISH
3. Press pushbutton .
The final position “Valve
CLOSED” is set.
Setting the final position
“Valve OPEN”
1. Set switches 1 and 2 .
2.Press pushbutton
until the valve is
completely open and the
direction indicator
stops.
3. Press pushbutton .
The final position “Valve
OPEN” is set.
4. Set switch 1 to standard
mode
.
FRANCAIS
3. Presser la touche
La position fin de course
«vanne fermée» est
réglée
Régler la position fin de
course «vanne ouverte»
1.Régler les interrupteurs
1 et 2
2. Presser la touche
jusqu’à ce que la vanne
soit totalement
ouverte et l’indicateur de
sens de fonctionnement
soit arrêté
3. Presser la touche
La position fin de
course «vanne ouverte»
est réglée
4. Positionner l’interrupteur
1 sur réglage standard
POLSKI
3. Nacisn¹æ przycisk
Pozycja krañcowa
Zawór zamkniêty
zosta³a nastawiona.
Ustawienie pozycji
krañcowej Zawór
otwarty
1. Ustaw prze³¹cznik 1i 2
2. Naciskaæ przycisk do
ca³kowitego otwarcia
zaworu i zatrzymania
wskanika poziomu
3. Nacisn¹æ przycisk
Pozycja krañcowa
Zawór otwarty zosta³a
nastawiona.
4. Nastawiæ prze³¹cznik 1
na tryb standardowy
.
