Mounting
31

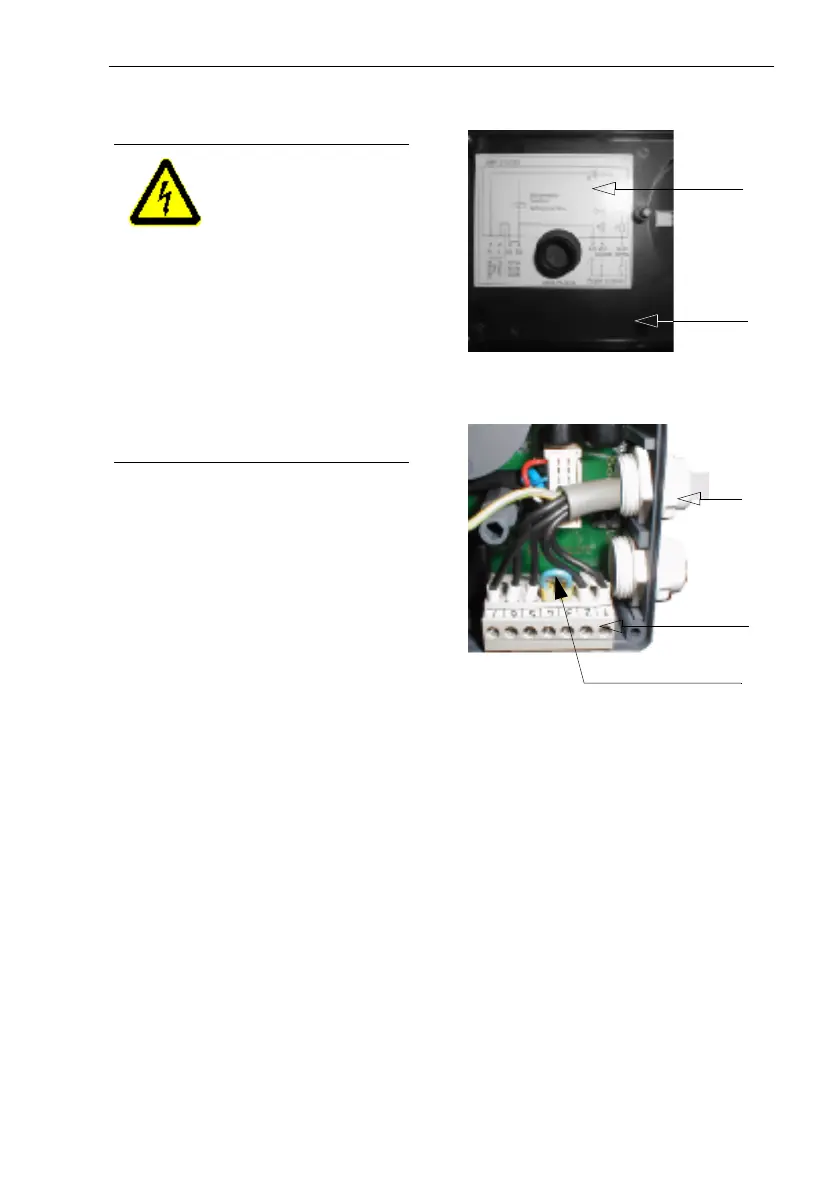

5.3 Electrical Connection
DANGER: High Voltage !
Danger to life or injury in case of
unqualified handling.
It is absolutely necessary to dis-
connect power supply prior to con-
necting lines.
Electrical connection must only be
performed by qualified personnel.
1. Dismount cover
1,
see section 5.2, item 3,
2. Check power supply.
It must comply with the data
given on the rating plate and
on the connection diagram
2.
3. Pierce cable gland
3 correctly
in order to comply with the
protection class.
4. Guide line through and con-
nect in accordance with the
connection diagram (see next
page)
to terminals 4.
5. When connecting STB, STW,
SDB to the terminals 3 and 4,
remove cable
5.
6. Only mount cover
1 after
having completed the stroke
settings (section 6) and the
adjustments necessary for
AME210, 213 (section 7).
2
3
4
1
5
To Next Page
