Danfoss AMV213

Adjustments AME210, AME213
38

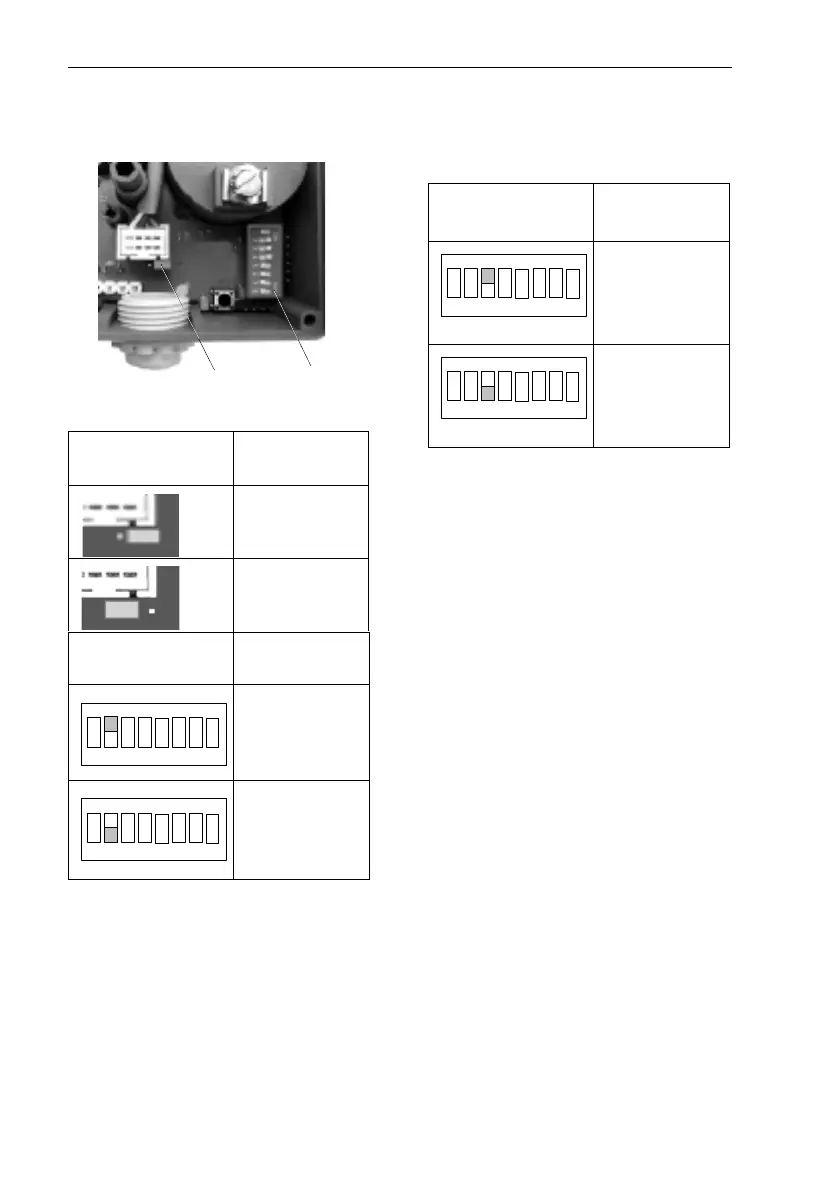

7.2 Input Signal Settings 7.3 Output Signal Settings
The output signal 0(2) - 10 V is pro-
portional to the positioning stroke.
S1
Input
signal
0(4) - 20 mA
0(2) - 10 V
S2
Offset
input signal
0 - 20 mA
0 - 10 V
4 - 20 mA
2 - 10 V
S1 S2
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
S2
Offset out-
put signal
0 - 10 V
2 - 10 V
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
