FC 300 Design Guide
Application Examples

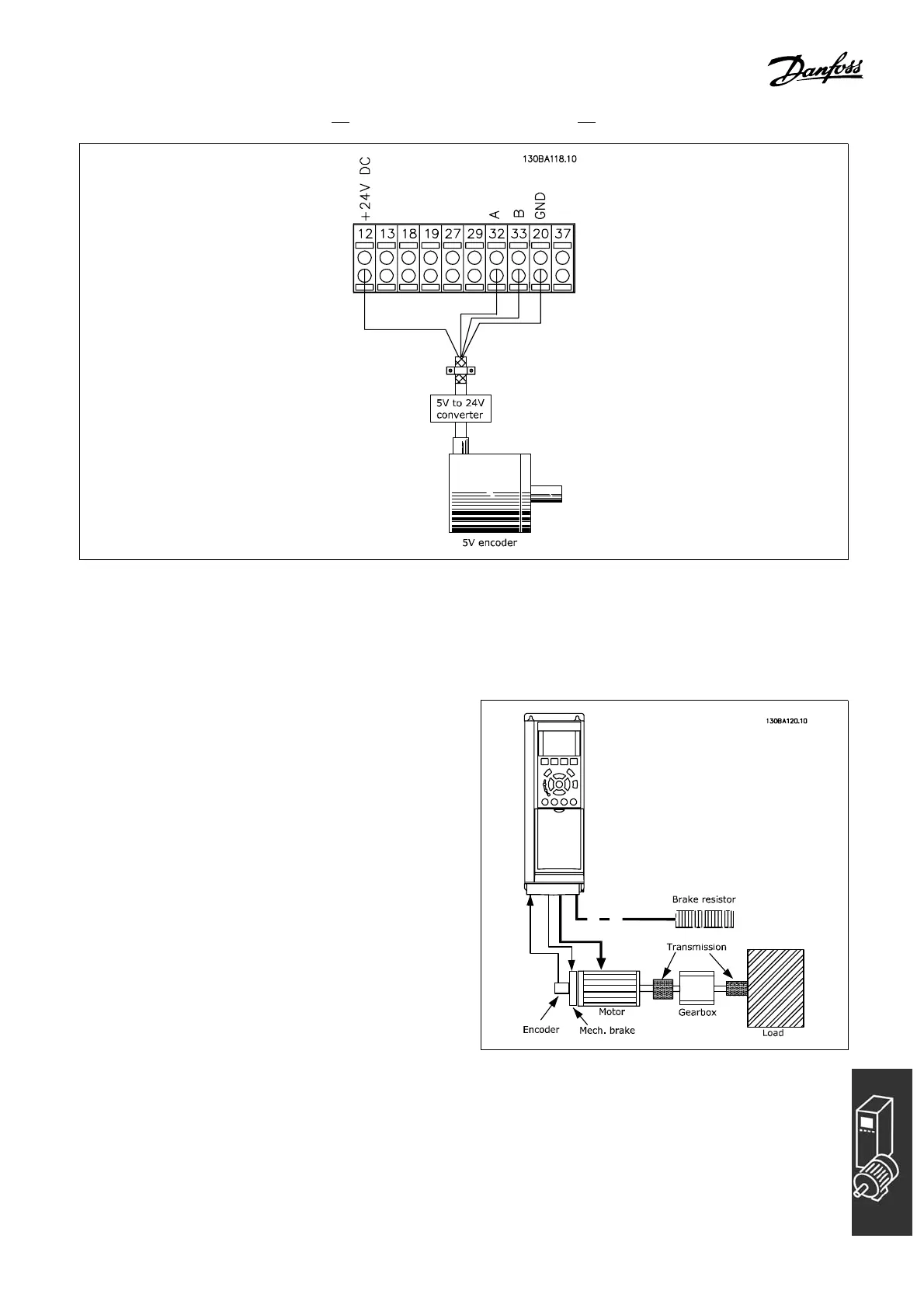

Encoders with 5 VDC supply must have a converter for 5 V → 24 V
Note:
The inverted channels cannot be used in FC 302 Firmware version 1.0x
The Z channel is not used in FC 302.
" Closed Loop Drive System
A drive syst em consist u sually of more elements as:
• Motor
• Add
(Gearbox)
(Mechanical B rake)
• FC 302 AutomationDrive
• Encoder as feedback system
• Brake resistor for dynamic braking
• Transmission
• Load
Basic Set-up for FC 302 Closed Loop Speed Control
Applicat
ions demanding mechanical brake control will usually need a brake resistor.
115
MG.33.B3.22 - VLT is a registered Danfoss trademark
