Danfoss D9h Design Guide

FC 300 Design Guide
How to Select Your VLT

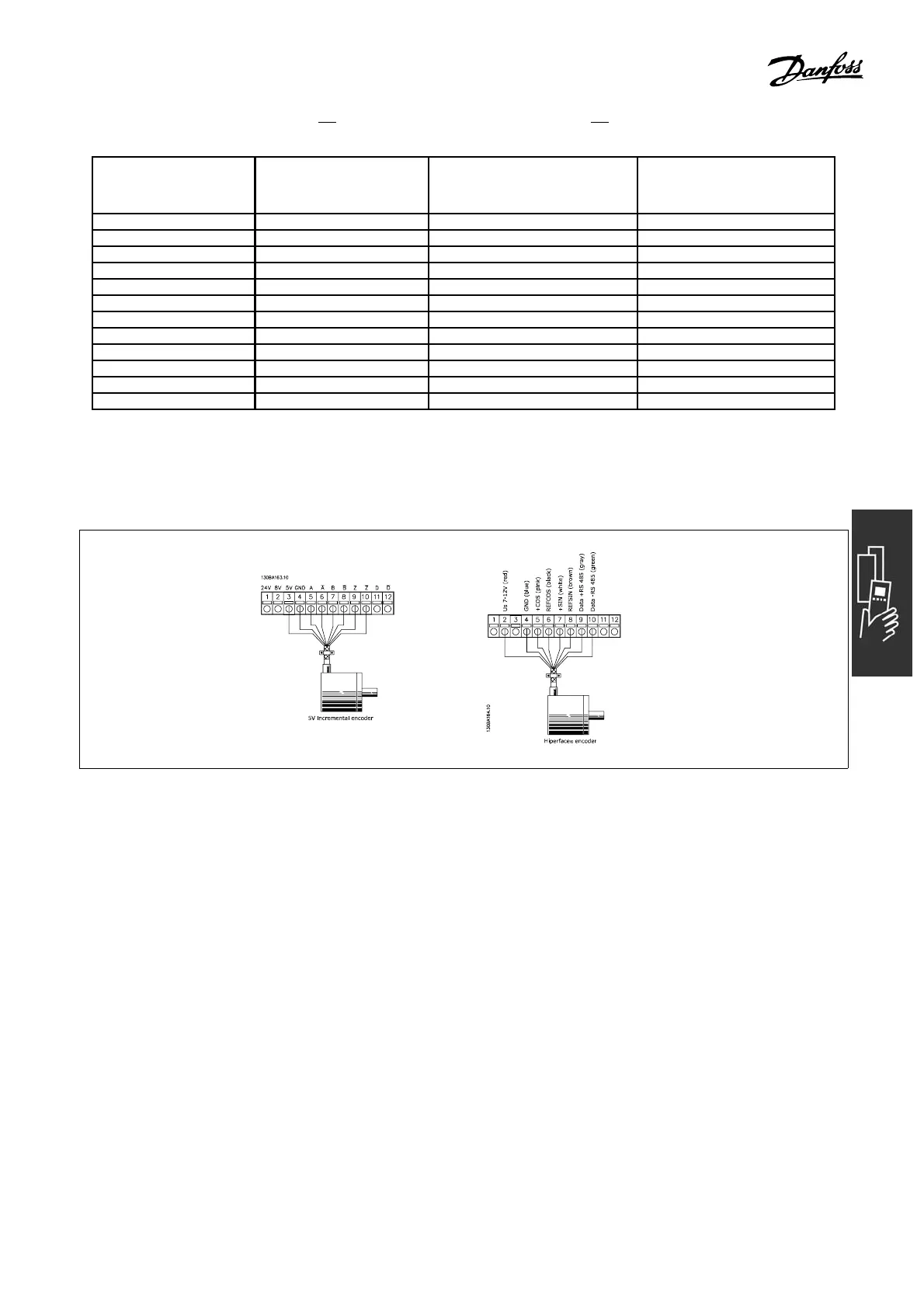

Connector
Designation
X31
Incremental Encoder SinCos Encoder
Hiperface
Description
1 NC 24 V Output
2 NC 8VOutput
3 5VCC 5VOutput
4 GND GND
5 Ainput +COS Ainput
6 Ainvinput REFCOS Ainvinput
7 Binput +SIN Binput
8 Binvinput REFSIN Binvinput
9 Zinput +Data RS-485 Z input OR +Data RS-485
10 Zinvinput -Data RS-485 Z input OR -Data RS-485
11 NC NC Future use
12 NC NC Future use
Max. 5V on X31.5-12
65
MG.33.B3.22 - VLT is a registered Danfoss trademark
