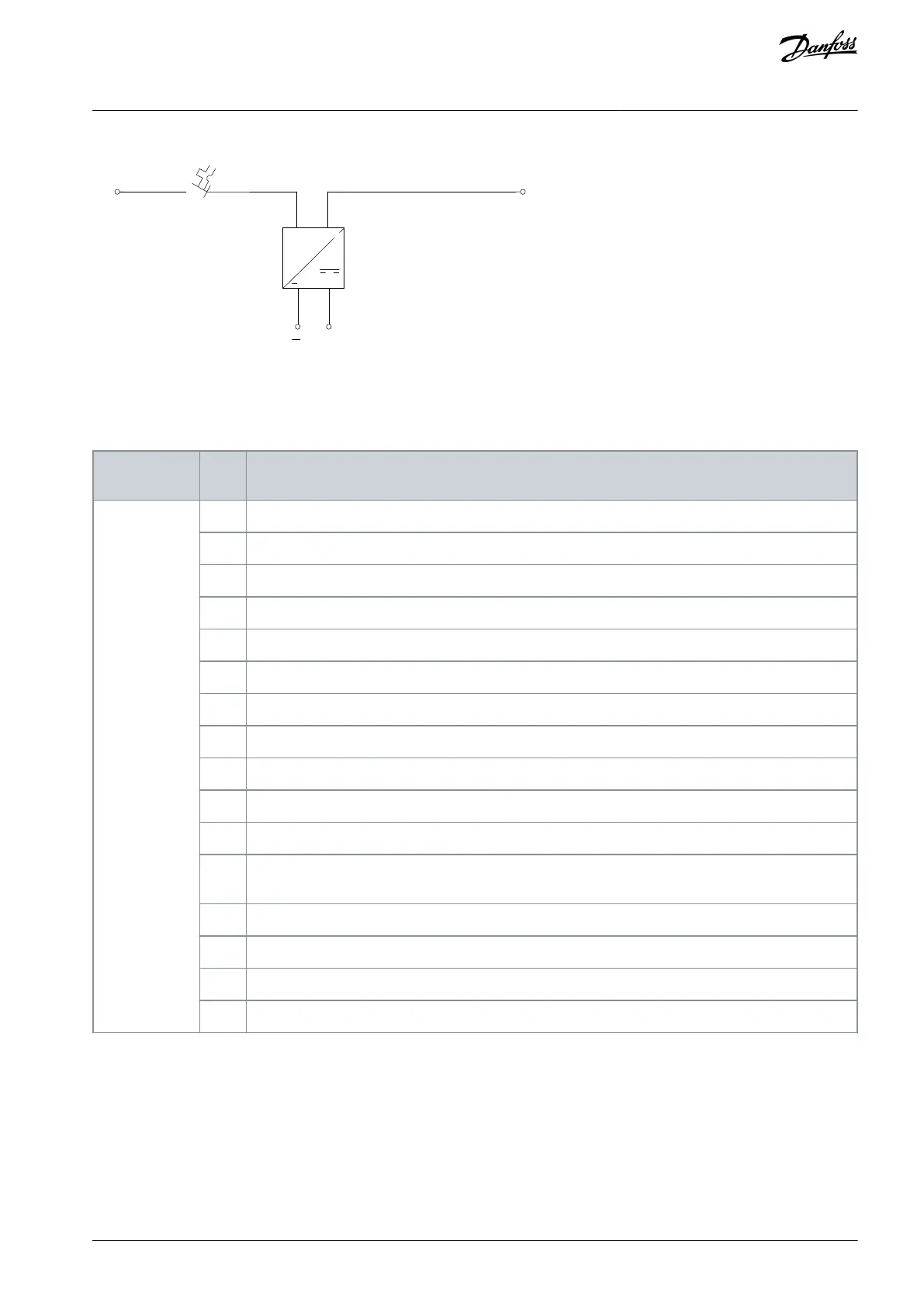

Illustration 51: 24 V DC External Supply Terminals
5.7.6.4 AC Customer Socket
Table 59: Auxiliary Function Type Codes
AC socket + cabinet light
AC socket + cabinet light + extended I/O terminals
AC socket + cabinet light + cabinet heater
AC socket + cabinet light + motor heater control
AC socket + cabinet light + insulation monitor
AC socket + cabinet light + extended I/O terminals + cabinet heater
AC socket + cabinet light + extended I/O terminals + motor heater control
AC socket + cabinet light + extended I/O terminals + insulation monitor
AC socket + cabinet light + extended I/O terminals + cabinet heater + motor heater control
AC socket + cabinet light + extended I/O terminals + cabinet heater + insulation monitor
AC socket + cabinet light + extended I/O terminals + motor heater control + insulation monitor
AC socket + cabinet light + extended I/O terminals + cabinet heater + motor heater control + insula-
tion monitor
AC socket + cabinet light + cabinet heater + motor heater control
AC socket + cabinet light + cabinet heater + insulation monitor
AC socket + cabinet light + cabinet heater + motor heater control + insulation monitor
AC socket + cabinet light + motor heater control + insulation monitor
The customer socket provides a supply for measurement tools, equipment, or a computer. The socket type is CEE 7/3 ("Schuko",
Type F) or NEMA 5-15 grounded (Type B). The default voltage is 230 V AC (IEC variant) and 115 V AC (UL variant). When using an
external supply, the maximum output power is 450 VA (IEC variant) and 230 VA (UL variant). When using a transformer supply, the
maximum output power is 200 VA for both variants.
