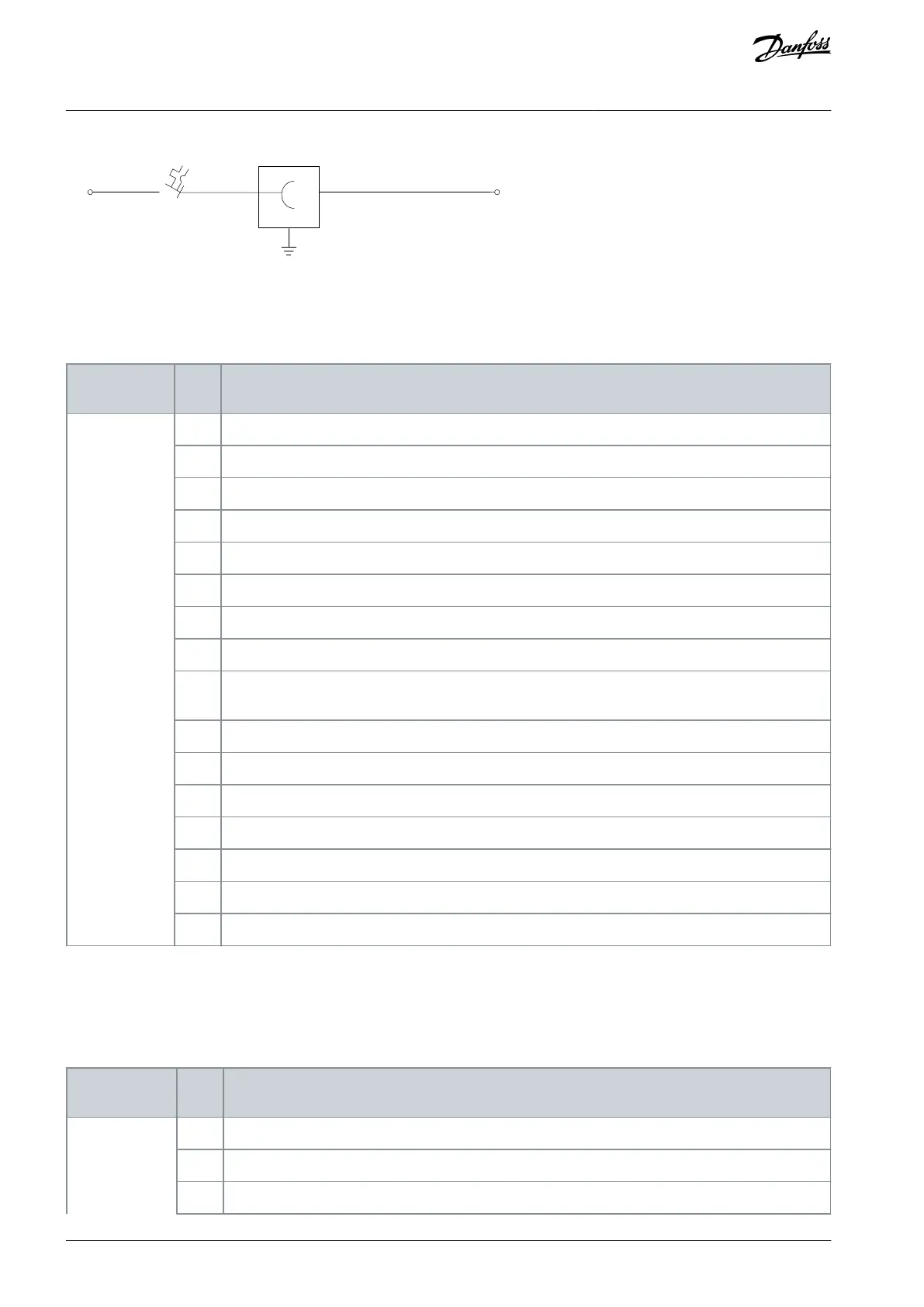

Illustration 52: AC Customer Socket Terminals
5.7.6.5 Extended I/O Terminals
Table 60: Auxiliary Function Type Codes
AC socket+cabinet light + extended I/O terminals
AC socket+cabinet light + extended I/O terminals + cabinet heater
AC socket+cabinet light + extended I/O terminals + motor heater control
AC socket+cabinet light + extended I/O terminals + insulation monitor
AC socket+cabinet light + extended I/O terminals + cabinet heater + motor heater control
AC socket+cabinet light + extended I/O terminals + cabinet heater + insulation monitor
AC socket+cabinet light + extended I/O terminals + motor heater control + insulation monitor
AC socket+cabinet light + extended I/O terminals + cabinet heater + motor heater control + insulation
monitor
Extended I/O terminals + cabinet heater
Extended I/O terminals + motor heater control
Extended I/O terminals + insulation monitor
Extended I/O terminals + cabinet heater + motor heater control
Extended I/O terminals + cabinet heater + insulation monitor
Extended I/O terminals + cabinet heater + motor heater control + insulation monitor
Extended I/O terminals + motor heater control + insulation monitor
The extended I/O terminal option includes 25 control terminals (-XDW) in the control compartment for use by the customer. If the
enclosed drive is configured with any option C1 card, the -XDW terminal block is used for the option C1 card wiring.
5.7.6.6 Cabinet Heater
Table 61: Auxiliary Function Type Codes
AC socket + cabinet light + cabinet heater
AC socket + cabinet light + extended I/O terminals + cabinet heater
AQ262139143212en-000301 / 130R087994 | Danfoss A/S © 2021.10
Electrical Installation
VLT® AutomationDrive FC 302
Operating Guide
