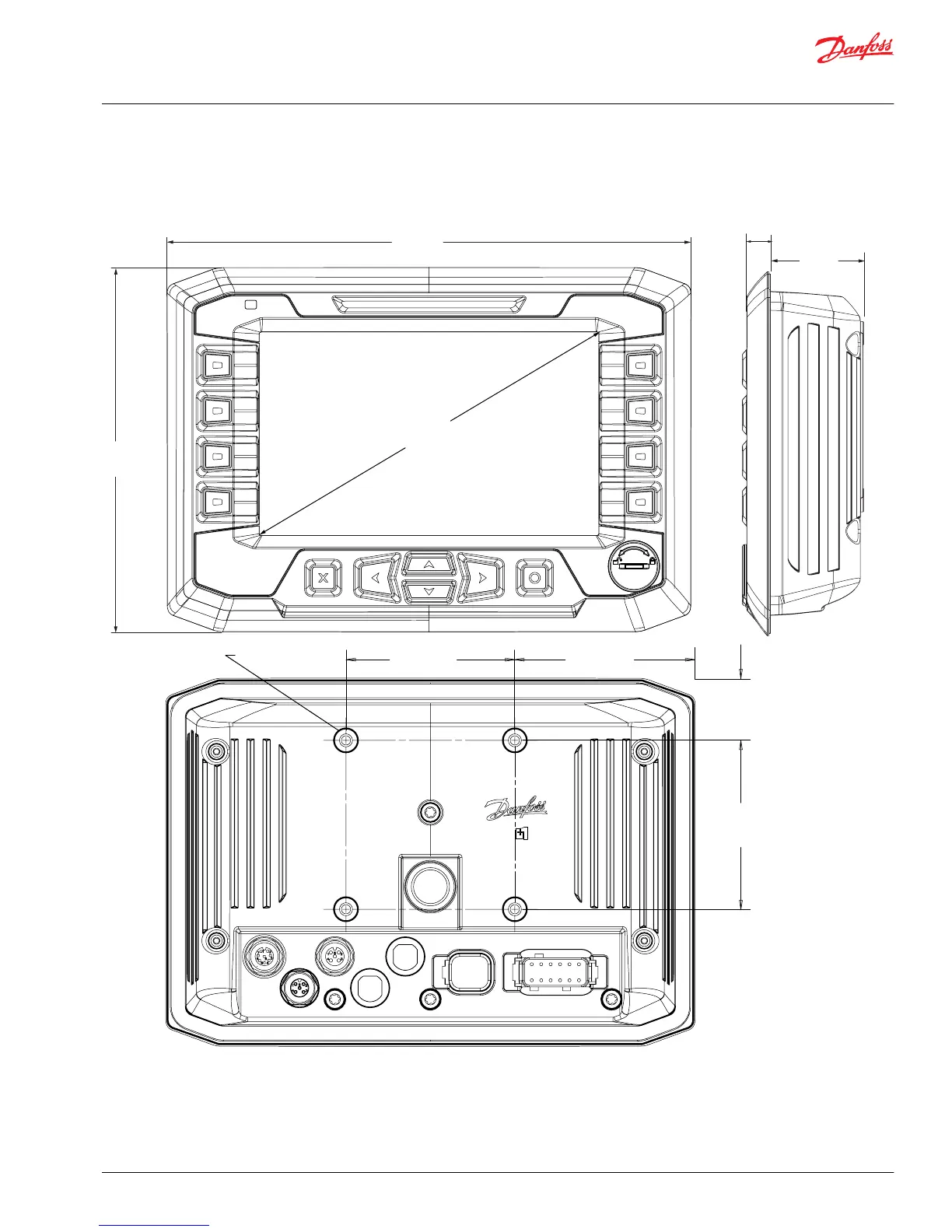

DP700, DP710, DP720 dimensions
millimeters [inches]
75.00 ± 0.50
[2.95 ± 0.02]
80.08 ± 0.50
[3.15 ± 0.02]
75.00 ± 0.50
[2.95 ± 0.02]
27.60 ± 0.50
[1.09 ± 0.02]
4X M4
P200189
235.20
[ 9.26]
163.50
[ 6.44]
9.90
[0.39]
42.60
[1.68]
177.80 [ 7.00] REF
T
e
c
h
n
i
c
a
l
I
n
f
o
r
m
a
t
i
o
n
D
P
7
X
X
S
e
r
i
e
s
D
i
s
p
l
a
y
s
Installation
©
Danfoss | November 2016
L1315553
|
BC00000223en-US0504 | 21
20
22
Table of Contents
Default Chapter
3
Table of Contents
3
DP7XX Reference Literature
5
Technical Information (TI)
5
Data Sheet (DS)
5
API Specifications (API)
5
PLUS+1 ® GUIDE User Manual
5
Latest Version of Technical Literature
5
User Liability and Safety Statements
6
OEM Responsibility
6
Display Options
7
Plus+1 ® Guide
7
Linux
7
Ordering Information
8
Product Naming Convention
8
Related Products
9
Connector Bag Assemblies
9
Connection Tools
9
Mounting Kit
10
Software
10
Inputs/Outputs
11
Inputs
11
Digital/Analog
11
Multifunction
12
Encoder
13
Outputs
13
Digital Output
13
Usb
13
Video
14
Real Time Clock (RTC)
14
Controller Area Network (CAN) Specifications
15
CAN Shield/Analog Inputs
15
Analog Input
15
CAN Communication
15
Gateway Channels
15
Memory
17
NV Memory
17
FRAM Memory
17
Vault Memory
17
Product Ratings
18
Electrical
18
Environmental
18
Testing Criteria
19
Maintenance Guidelines
20
LCD Module
20
LCD Press and Hold Feature
20
Installation
21
DP700, DP710, DP720 Dimensions
21
DP730 Dimensions
22
Two Mounting Options
23
Flush Mounting Option
23
Stand-Alone on Post Mounting Option
23
DP700, DP710, DP720 Connectors Pin Assignments
24
DP730 Connectors Pin Assignments
25
Machine Wiring Guidelines
26
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
