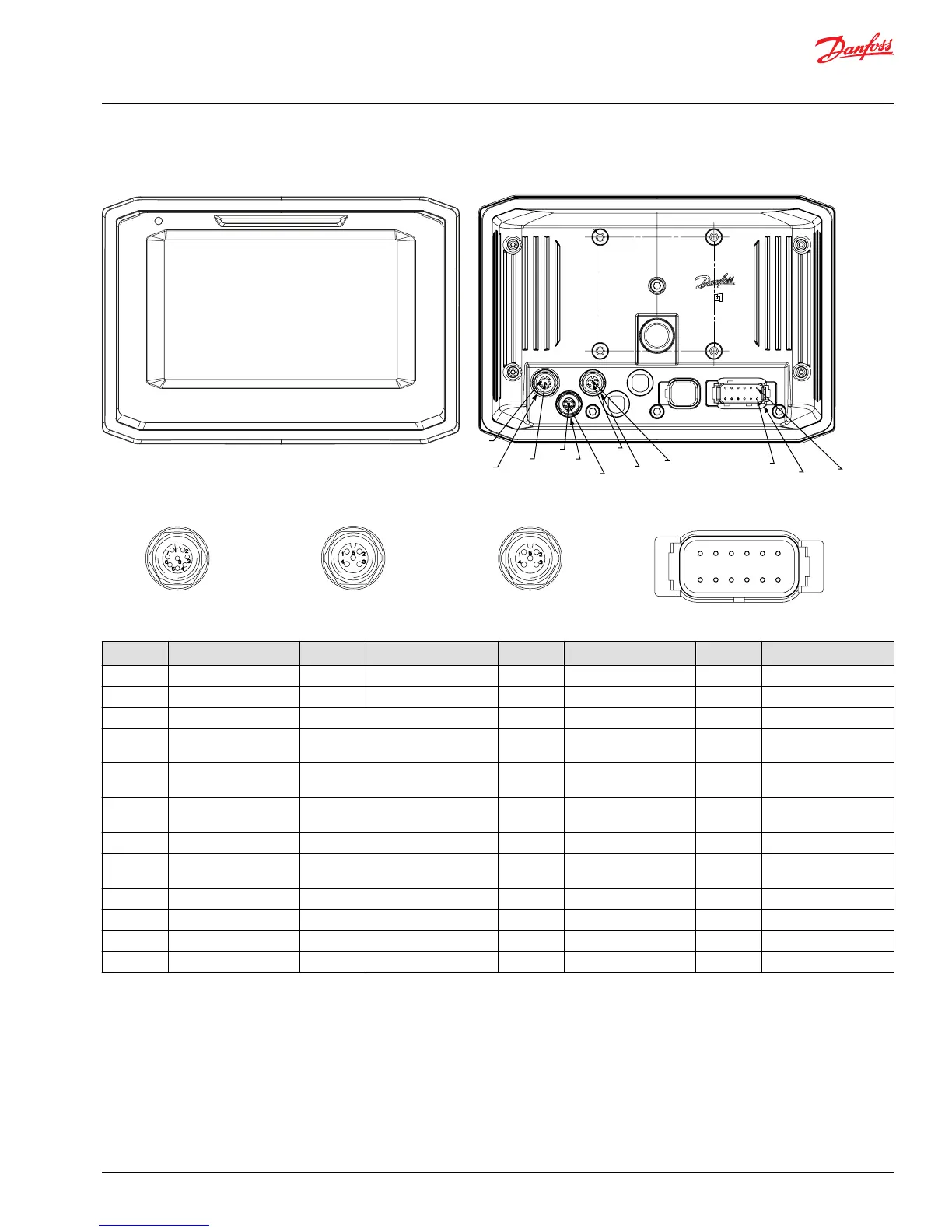

DP730 connectors pin assignments
C1
C4
C3
C5
C5-P8
C3-P5
C3-P1
C4-P5
C1-P1
C4-P1
C1-P12
C5-P1
USB
P200 191
C3 M12 5-pin
C4 M12 5-pinC5 M12 8-pin
P200154
C1 Deutsch® DTM06 12-pin
C5 pin Function C4 pin Function C3 pin Function C1 pin Function
C5-P1 USB device Vbus C4-P1 Video power ground C3-P1 Video power ground C1-P1 Power ground -
C5-P2 USB device D- C4-P2 Video power supply C3-P2 Video power supply C1-P2 Power supply +
C5-P3 USB device D+ C4-P3 Video signal input 2 C3-P3 Video signal input 1 C1-P3 CAN0 High +
C5-P4 USB device GND C4-P4 Video signal input
ground
C3-P4 Video signal input
ground
C1-P4 CAN0 Low -
C5-P5 USB host GND/RS232
GND
C4-P5 NC C3-P5 NC C1-P5 CAN shield/AIN
C5-P6 USB host D+/RS232
RxD
C1-P6 CAN1 High +/(AIN/DIN)
C5-P7 USB host D-/RS232 TxD C1-P7 CAN1 Low -/(AIN/DIN)
C5-P8 USB host Vbus C1-P8 Sensor power/(AIN/
DIN)
C1-P9 Sensor ground
C1-P10 Multifunction-input
C1-P11 Multifunction-input
C1-P12 DOUT
Technical Information
DP7XX Series Displays
Installation
©
Danfoss | November 2016 L1315553 | BC00000223en-US0504 | 25
