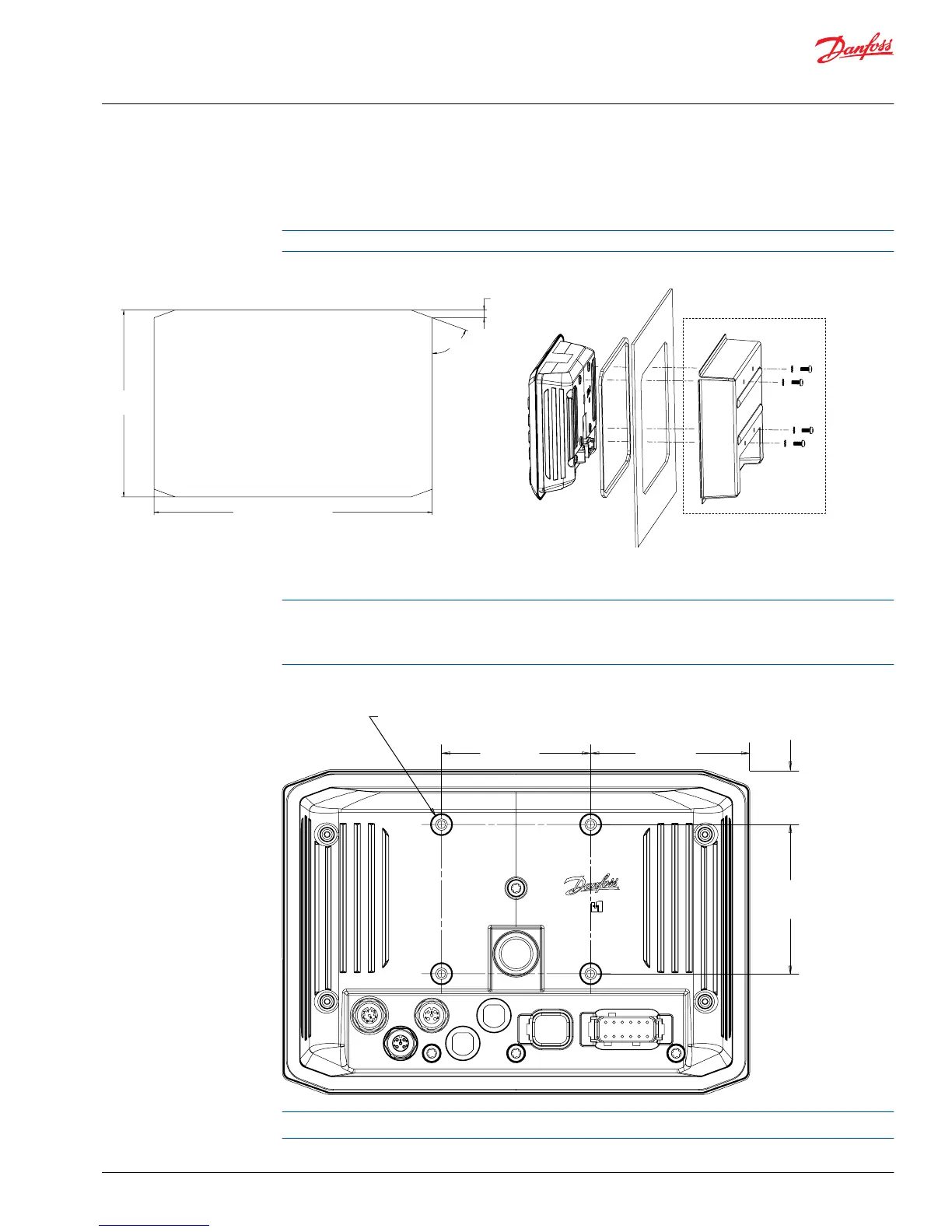

Two mounting options
Flush mounting option
Use the Danfoss panel mounting kit (Danfoss part number 11144800) to flush-mount into a dashboard.
Panel cutout
4X M4
219.2 ± 0.5 [8.63 ± 0.02]
147.2 ± 0.5
[5.8 ± 0.02]
4 x 70˚ ± 1˚
4X 6 ± 0.25
[0.24 ± 0.01]
kwa1402426015888
Stand-alone on post mounting option
Mount according to VESA (Video Electronics Standards Association) Mount Standards The VESA hole
pattern for these displays is: 75.00 mm x 75.00 mm (02.95 in x 02.95 in). There are four holes for four M4
screws, 0.7 mm (0.3 in) thread x 12 mm (0.47 in) maximum depth.
millimeters [inches]
75.00 ± 0.50
[2.95 ± 0.02]
80.08 ± 0.50
[3.15 ± 0.02]
75.00 ± 0.50
[2.95 ± 0.02]
27.60 ± 0.50
[1.09 ± 0.02]
4X M4
P200158
Disconnect your machine's battery power before connecting power and signal cables to the display.
Technical Information
DP7XX Series Displays
Installation
©
Danfoss | November 2016 L1315553 | BC00000223en-US0504 | 23
