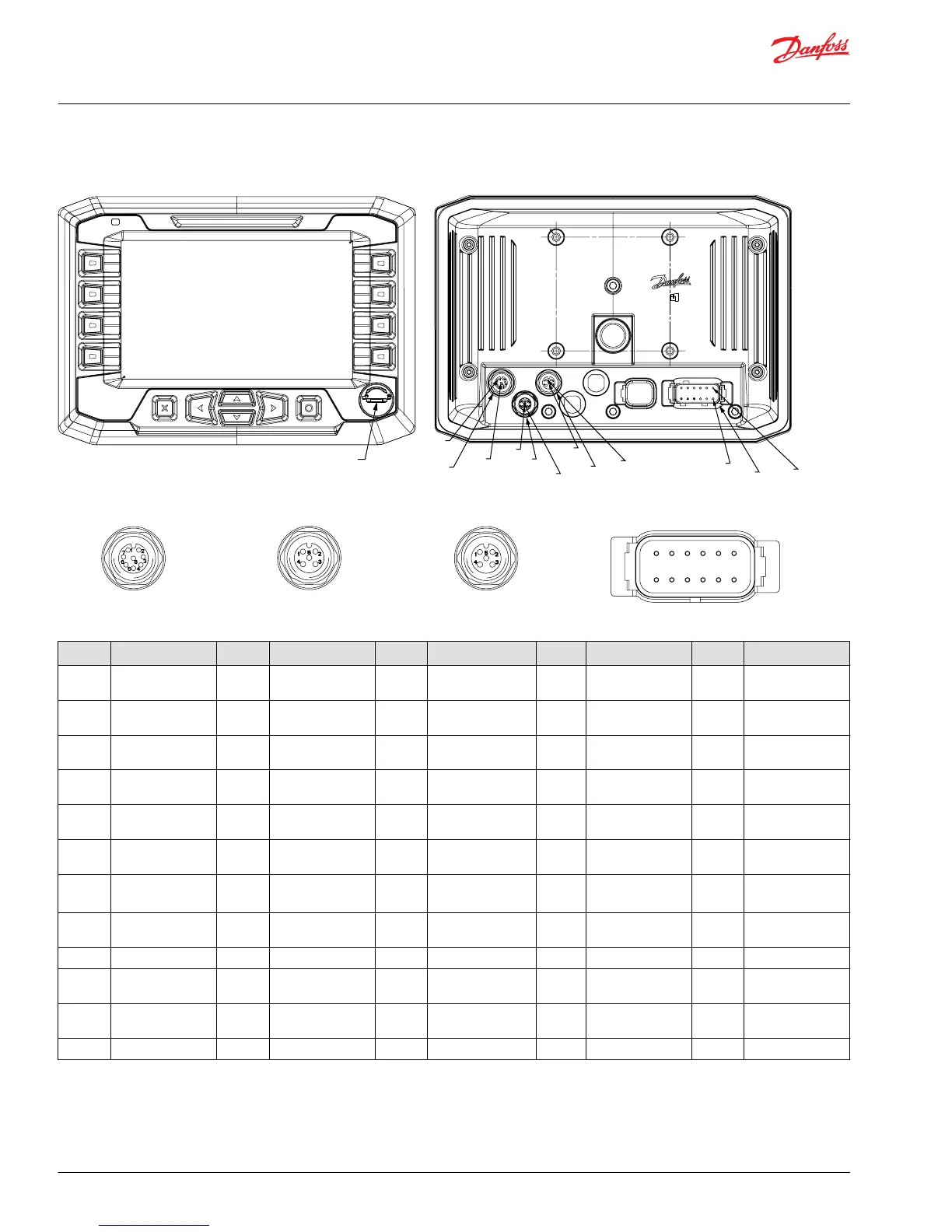

DP700, DP710, DP720 connectors pin assignments
C1
C4
C3
C5
C5-P8
C3-P5
C3-P1
C4-P5
C1-P1
C4-P1
C1-P12
C5-P1
USB
P200 190
C6
USB
C3 M12 5-pin
C4 M12 5-pinC5 M12 8-pin
P200154
C1 Deutsch® DTM06 12-pin
C6 pin Function C5 pin Function C3 pin Function C4 pin Function C1 pin Function
C6-P1 USB host VBus C5-P1 USB device Vbus C3-P1 Video power
ground
C4-P1 Video power
ground
C1-P1 Power ground -
C6-P2 USB host D- C5-P2 USB device D- C3-P2 Video power
supply
C4-P2 Video power
supply
C1-P2 Power supply +
C6-P3 USB host D+ C5-P3 USB device D+ C3-P3 C4-P3 Video signal input
2
C1-P3 CAN0 High +
C6-P4 USB host GND C5-P4 USB device GND C3-P4 Video signal input
ground
C4-P4 Video signal input
ground
C1-P4 CAN0 Low -
C5-P5 USB host GND/
RS232 GND
C3-P5 NC C4-P5 NC C1-P5 AIN/CAN Shield
C5-P6 USB host D+/
RS232 RxD
C1-P6 CAN1 High +/
(AIN/DIN)
C5-P7 USB host D-/RS232
TxD
C1-P7 CAN1 Low -/(AIN/
DIN)
C5-P8 USB host Vbus
C1-P8 Sensor power/
(AIN/DIN)
C1-P9 Sensor ground
C1-P10 Multifunction-
input
C1-P11 Multifunction-
input
C1-P12 DOUT
Technical Information
DP7XX Series Displays
Installation
24 |
©
