Danfoss ECtemp Touch User Manual

Danfoss ECtemp Touch
Installation Guide8

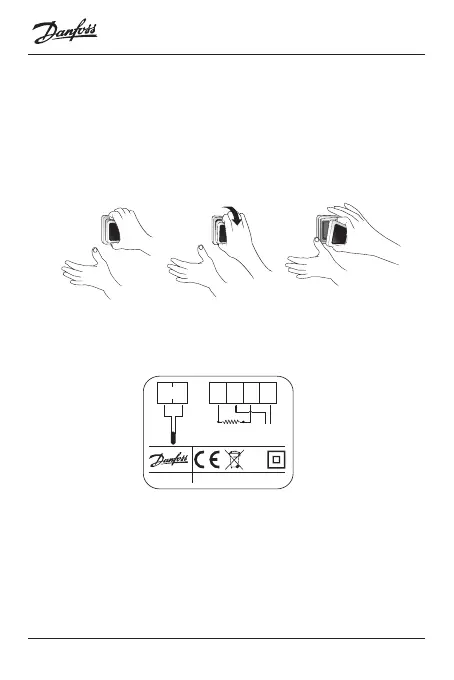

Follow the steps below to mount the thermostat:
1. Open the thermostat:
Important: Do NOT press on the display screen when
removing the front part.
Press your ngers under the side of the front part and
pull toward you:
2. Connect the thermostat according to the connection
diagram.
The screen of the heating cable must be connected to
the earth conductor of the power supply cable by
using a separate connector.
Note: Always install the oor sensor in a conduit in the
oor.
N
IP21
T30
Dtouch
Mains
220-240V
50-60 Hz
Maximum
Load 16 (1) A
Sensor
Standby maximum 0.4W
L
L
L
O
A
D
NTC N
L
O
A
D

Danfoss ECtemp Touch Specifications

General

Temperature sensor	Yes
Control type	Touch
Product color	White
Memory function	-
International Protection (IP) code	IP21
Voltage	220 - 240 V
Power source	AC
Temperature control range	5 - 45 °C

Weight and Dimensions

Depth	24 mm
Package depth	140 mm
Package width	95 mm
Package height	85 mm
Package weight	24 g
