Carefully detach the display module. The module must be •
pulled straight out to avoid damaging the 8-pin connector
plug on the back of the module!
Frame
Carefully detach the frame.•
4.3 Connecting cables

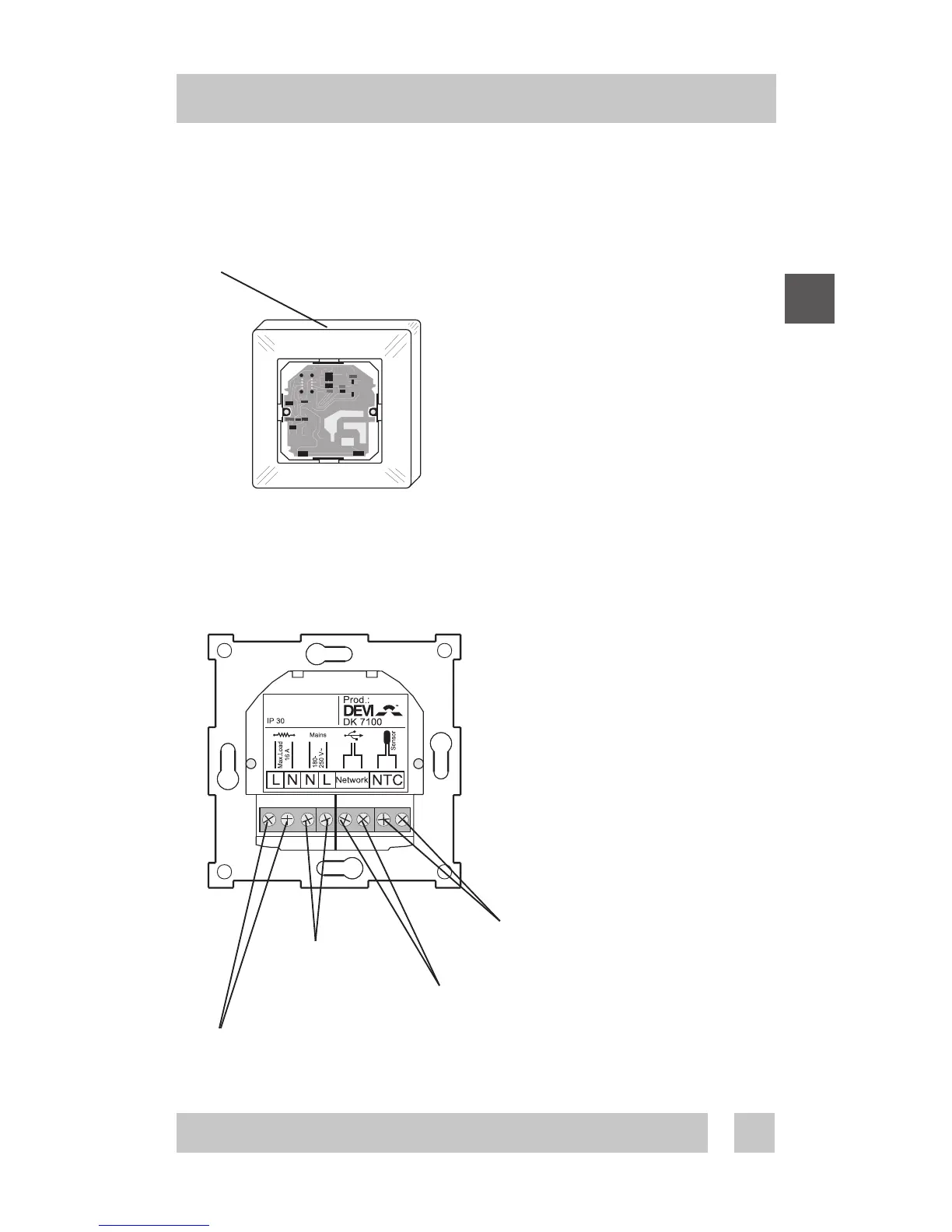

Connect the cables as shown below.•
Devireg™ 550
Mains supply
180-250 V
50/60 Hz
Heating element
Max. load 16 Amp.
Network
connection
EFIT 550 ONLY
NTC sensor
Installation manual
