Danfoss erc 112 User Guide

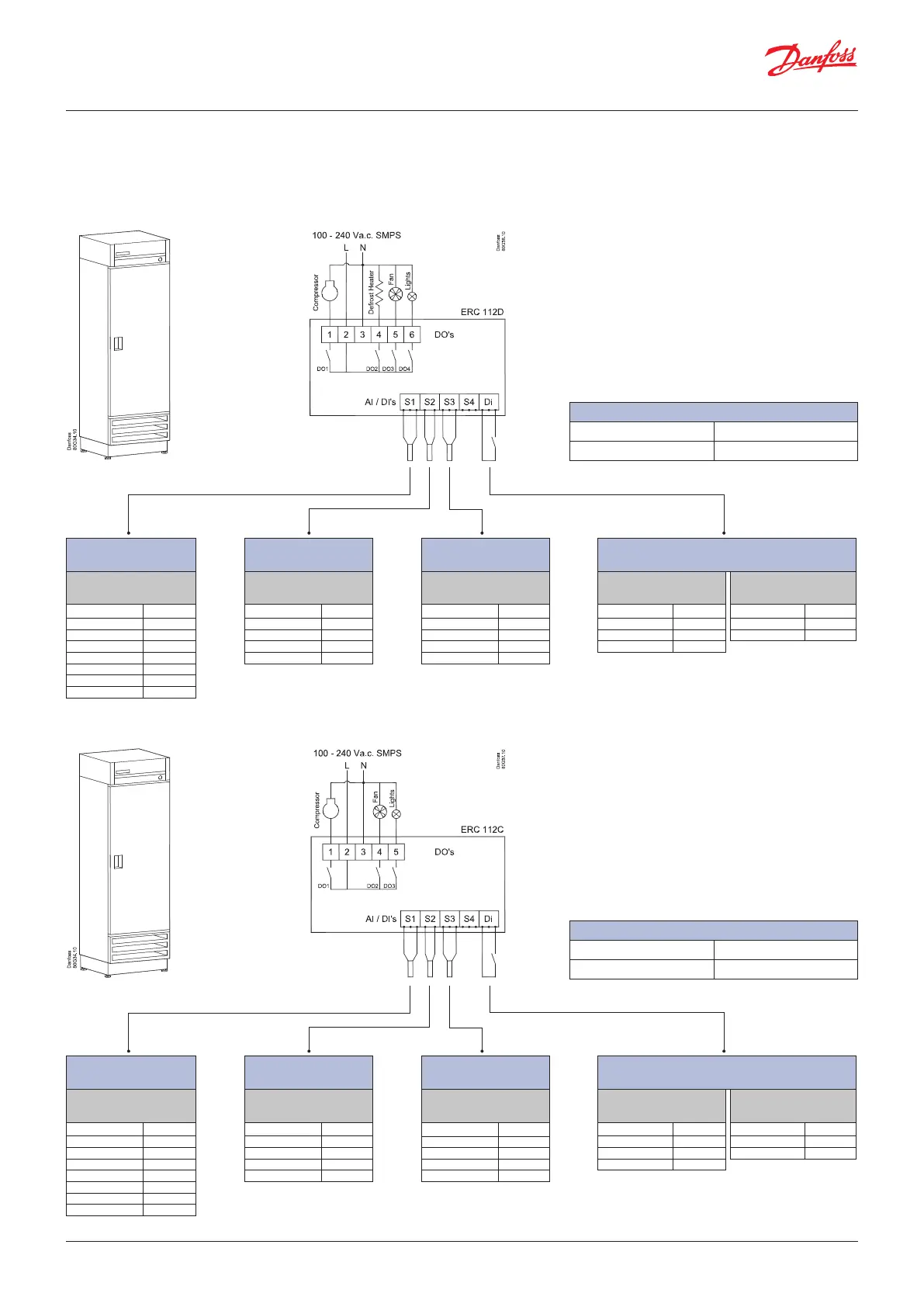

ERC 112D Controller
Red LED with buzzer 080G3213
Red LED with buzzer 080G3217
ERC 112C Controller
Red LED with buzzer 080G3212
Red LED with buzzer 080G3216
Gastro No-frost freezer
Gastro Cooler
Temperature Sensor for
Cabinet Temperature
Control
Temperature Sensor for
Evaporator Temperature
Control
Temperature Sensor for
Condenser Temperature
Control
Door input
PVC Standard
Connector type (S1) 3-pole
PVC Standard
Connector type (S2) 2-pole
PVC Standard
Connector type (S3) 3-pole
Door sensor cable
di/S4 3-pole
Magnetic door sensor
di/S4 3-pole
470 mm 077F8751 1000 mm 077F8786 1000 mm 077F8756 1000 mm 080G3340 1000 mm 080G3320
1000 mm 077F8757 1500 mm 077F8790 1500 mm 077F8760 2000 mm 080G3341 2000 mm 080G3322
1500 mm 077F8761 2000 mm 077F8794 2200 mm 077F8766 3000 mm 080G3342 3000 mm 080G3324
2000 mm 077F8765 3000 mm 077F8798 3000 mm 077F8768 4000 mm 080G3343
2200 mm 077F8767 6000 mm 080G2029 6000 mm 080G2039
3000 mm 077F8769
3500 mm 077F8723
6000 mm 080G2019
Temperature Sensor for
Cabinet Temperature
Control
Temperature Sensor for
Evaporator Temperature
Control
Temperature Sensor for
Condenser Temperature
Control
Door input
PVC Standard
Connector type (S1) 3-pole
PVC Standard
Connector type (S2) 2-pole
PVC Standard
Connector type (S3) 3-pole
Door sensor cable
di/S4 3-pole
Magnetic door sensor
di/S4 3-pole
470 mm 077F8751 1000 mm 077F8786 1000 mm 077F8756 1000 mm 080G3340 1000 mm 080G3320
1000 mm 077F8757 1500 mm 077F8790 1500 mm 077F8760 2000 mm 080G3341 2000 mm 080G3322
1500 mm 077F8761 2000 mm 077F8794 2200 mm 077F8766 3000 mm 080G3342 3000 mm 080G3324
2000 mm 077F8765 3000 mm 077F8798 3000 mm 077F8768 4000 mm 080G3343
2200 mm 077F8767 6000 mm 080G2029 6000 mm 080G2039
3000 mm 077F8769
3500 mm 077F8723
6000 mm 080G2019
User Guide | ERC 112 Refrigeration Controller
© Danfoss | DCS (vt) | 2019.07 BC200686422115en-000802 | 27

Danfoss erc 112 Specifications

General

Type	Electronic Refrigeration Controller
Supply Voltage	230 VAC
Relay Outputs	3
Application	Refrigeration
Digital Inputs	1
Protection Class	II
Sensor Type	NTC
Storage Temperature	-20°C to 70°C
