The ERC 112 is an electronic refrigeration
controller with an LED display especially
developed for bottle coolers and commercial
fridges and freezers. It is particularly suited for
OEM customers where time, easy and reliable
installation and high quality need to go hand in
hand with flexibility.
The display can be ordered in red or blue.
The controller is available with the upper left
button as "ECO" or "Defrost".
The lower left-button can be supplied with
"Light", "Stand by" or "Super chill".
Clips Are used to secure the controller in place in the
case of rear mounting. They are not used with
front mounting.
There are two identical clips, one placed on
either side of the controller.
Front frame The front frame provides a proper finish but can
also be used to secure the controller in place
when using front mounting. In this case, clamps
are not required. Contact Danfoss for details.
"S1"
Temperature sensor for
cabinet
"S2"
Temperature sensor for
defrost
"S3"
Temperature sensor for
condenser, light sensor or
Motion sensor
"S4"
Temperature sensor
Pt 1000 ohm/0°C
or door signal
"di"
Door signal or
Motion sensor
Defrost sensor
The function of an input can be reprogrammed,
but the connector can not be moved.
The connector is designed to only one location.
"S1" to "S1", "S2" to "S2", etc.
Control temperature sensor
There are different lengths.
Defrost temperature sensor
Should be mounted on the evaporator.
Condenser temperature sensor
Should be mounted on the condenser.
Light sensor
Is optional and is used to measure the level of
ambient light around the cabinet so that night
and day "Economy", "Normal" modes of operation
can automatically be set, as well as the brightness
of the display.
Motion sensor
Should be mounted on the cabinet front.
Door sensor connector cable
Is optional and is a connector and cable with
spade terminals compatible with door contacts
used in refrigeration applications.

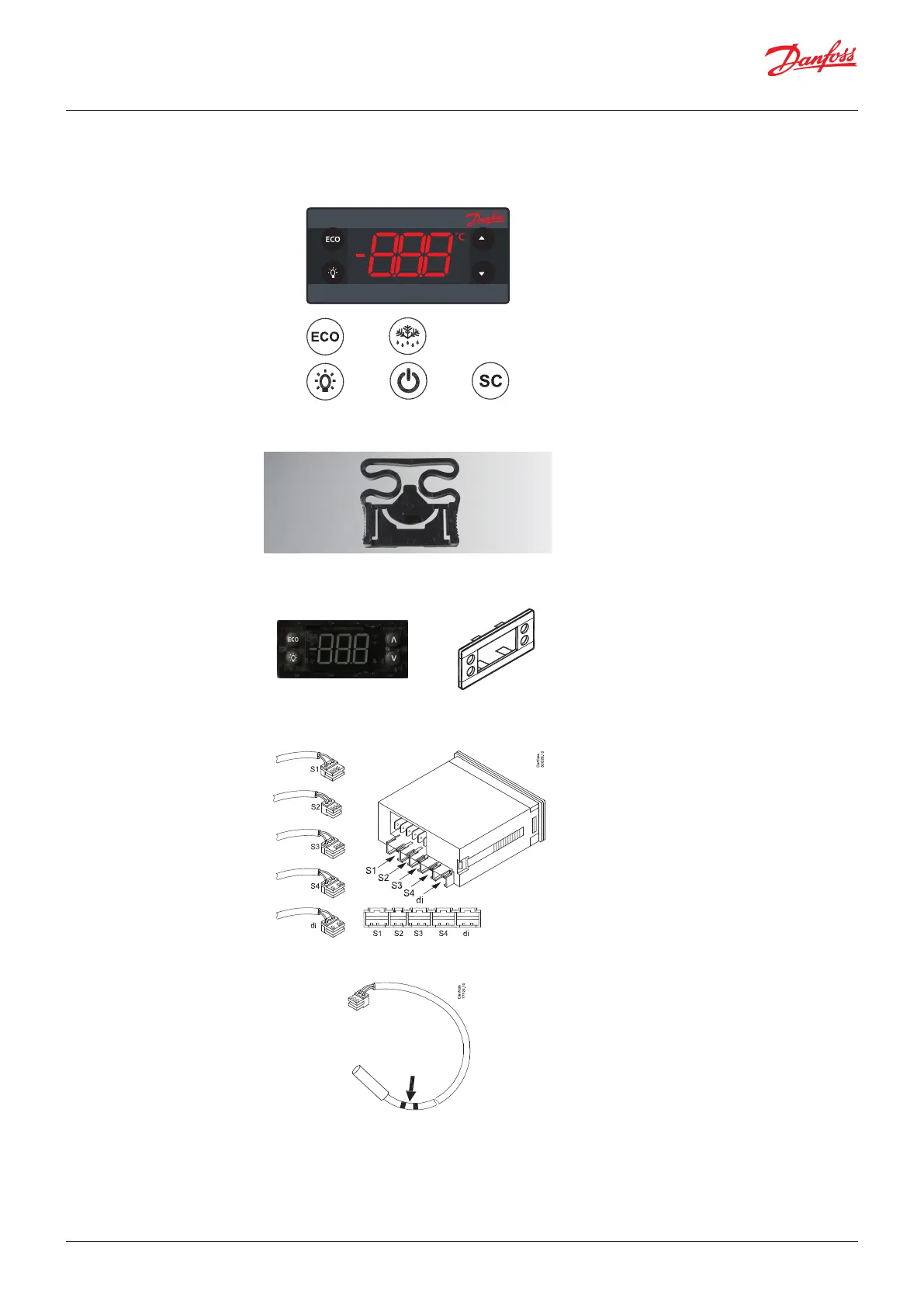

Product overview
Controller without front frame Front frame
User Guide | ERC 112 Refrigeration Controller
4 | BC200686422115en-000802 © Danfoss | DCS (vt) | 2019.07

Danfoss erc 112 Specifications

General

Type	Electronic Refrigeration Controller
Supply Voltage	230 VAC
Relay Outputs	3
Application	Refrigeration
Digital Inputs	1
Protection Class	II
Sensor Type	NTC
Storage Temperature	-20°C to 70°C
