The following example sets up the conguration between
a Rockwell scanner and a VLT
®
Midi Drive FC 280, where
the I/O assembly 100/150 is used.
130BE193.10

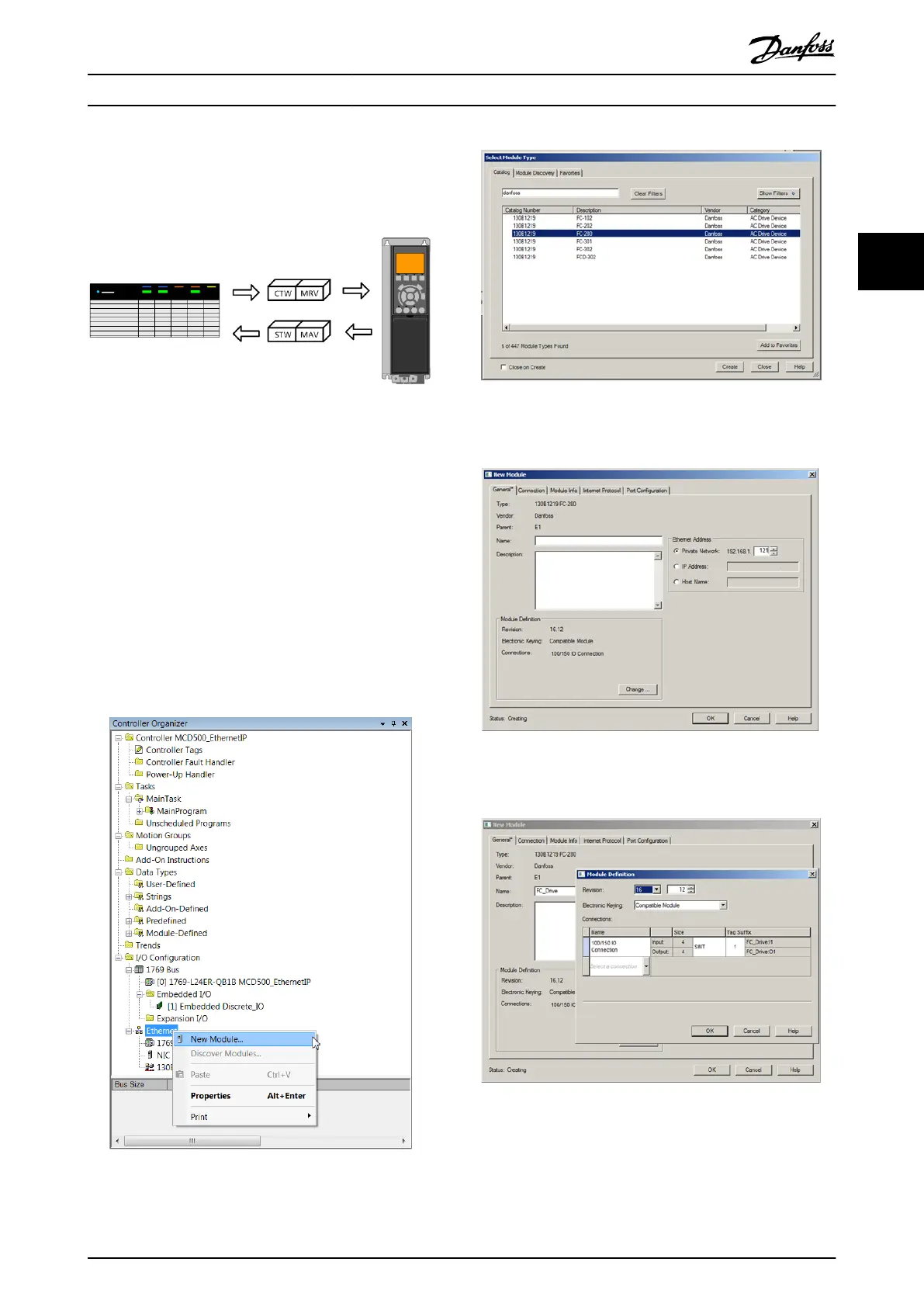

Illustration 3.9 Setting Up the Conguration between a
Rockwell Scanner and a VLT
®
Midi Drive FC 280
The scanner sends 2 words. The 1
st
word is the frequency
converters control word (CTW), and the 2
nd
word is the
main reference value (MRV). The frequency converter sends
2 words to the scanner. The 1
st
word is the status word
(STW), and the 2
nd
word is the main actual value (MAV)
(actual speed).
The frequency converter has the IP address 192.168.1.121,
and the data is updated cyclic every 20 ms in each
direction (RPI = 20 ms). To get the best network
performance, the data is sent unicast between the scanner
and the VLT
®
Midi Drive FC 280.
130BE162.10
Illustration 3.10 Adding the Danfoss Frequency Converters to
the Scanner
130BF023.10
Illustration 3.11 Limiting the Number of Devices in the Catalog
View
130BF024.10
Illustration 3.12 Naming the Frequency Converter and
Assigning the IP Address
130BF025.10
Illustration 3.13 Selecting the Change Option in the Module
Denition Part
Conguration Programming Guide
MG07H102 Danfoss A/S © 06/2016 All rights reserved. 9
3 3
