4.3 FC Control Prole
4.3.1 Control Word according to FC Prole

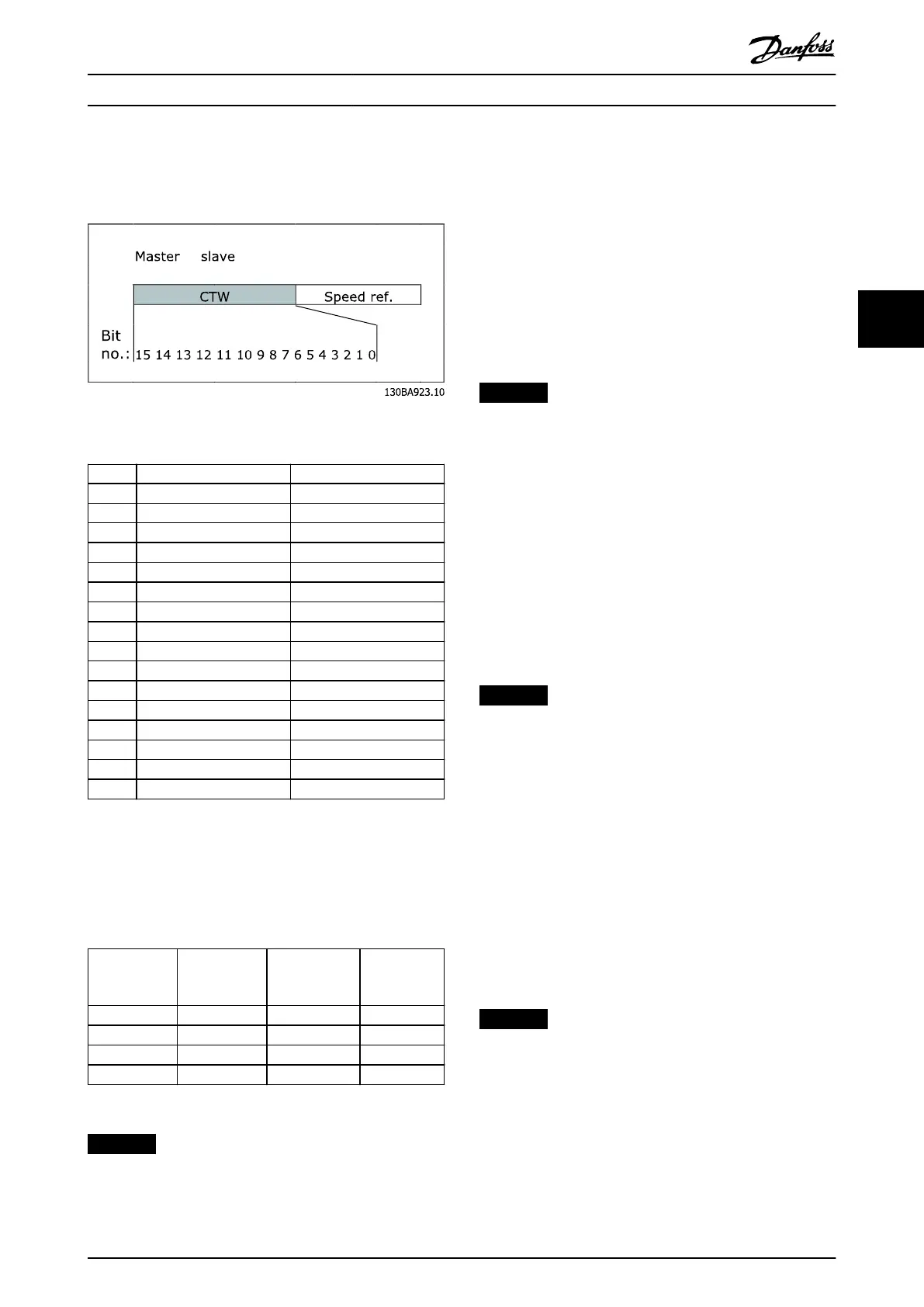

Illustration 4.2 FC Control Prole
Bit Bit value = 0 Bit value = 1
00 Reference value External selection lsb
01 Reference value External selection msb
02 DC brake Ramp
03 Coasting No coasting
04 Quick stop Ramp
05 Hold output frequency Use ramp
06 Ramp stop Start
07 No function Reset
08 No function Jog
09 Ramp 1 Ramp 2
10 Data invalid Data valid
11 No function Relay 01 active
12 No function No function
13 Parameter set-up Selection lsb
14 Parameter set-up Selection msb
15 No function Reverse
Table 4.4 Control Word Bits
Explanation of control bits
Bits 00/01
Select between the 4 reference values, which are pre-
programmed in parameter 3-10 Preset Reference according
to Table 4.5.
Programmed
reference
value
Parameter Bit 01 Bit 00
1 3-10 [0] 0 0
2 3-10 [1] 0 1
3 3-10 [2] 1 0
4 3-10 [3] 1 1
Table 4.5 Reference Values
NOTICE
Parameter 8-56 Preset Reference Select denes how bit
00/01 gates with the corresponding function on the
digital inputs.
Bit 02, DC brake
Bit 02 = 0: DC braking and stop. Set braking current and
duration in parameter 2-01 DC Brake Current and
parameter 2-02 DC Braking Time.
Bit 02 = 1: Ramping, see parameter 3-41 Ramp 1 Ramp Up
Time.
Bit 03, Coasting
Bit 03 = 0: The frequency converter releases the motor
immediately (the output transistors are shut o), so that it
coasts to a standstill.
Bit 03 = 1: The frequency converter starts the motor when
all starting conditions are fullled.
NOTICE
Parameter 8-50 Coasting Select denes how bit 03 gates
with the corresponding function on a digital input.
Bit 04, Quick stop
Bit 04 = 0: A stop ramps down motor speed to stop via
parameter 3-81 Quick Stop Ramp Time.
Bit 04 = 01: The frequency converter starts the motor
when all starting conditions are fullled.
Bit 05, Hold output frequency
Bit 05 = 0: The present output frequency (in Hz) freezes. To
change the frozen output frequency, set the digital inputs
to [21] Speed up and [22] Speed down in
parameter 5-10 Terminal 18 Digital Input to
parameter 5-15 Terminal 33 Digital Input).
NOTICE
If freeze output is active, the frequency converter can
only be stopped by the following:
•
Bit 03 Coasting stop.
•
Bit 02 DC braking.
•
Digital input (parameter 5-10 Terminal 18 Digital
Input to parameter 5-15 Terminal 33 Digital
Input) programmed to DC braking, Coasting
stop, or Reset and coasting stop.
Bit 06, Ramp stop/start
Bit 06 = 0: A stop ramps down motor speed to stop via
the selected ramp-down parameter.
Bit 06 = 1: The frequency converter starts the motor when
all starting conditions are fullled.
NOTICE
Parameter 8-53 Start Select denes how bit 06 Ramp
stop/start gates with the corresponding function on a
digital input.
Bit 07, Reset
Bit 07 = 0: No reset.
Bit 07 = 1: Reset of trip. Reset is activated on the leading
edge of the signal, that is, when changing from logic 0 to
logic 1.
Control Programming Guide
MG07H102 Danfoss A/S © 06/2016 All rights reserved. 15
4 4
