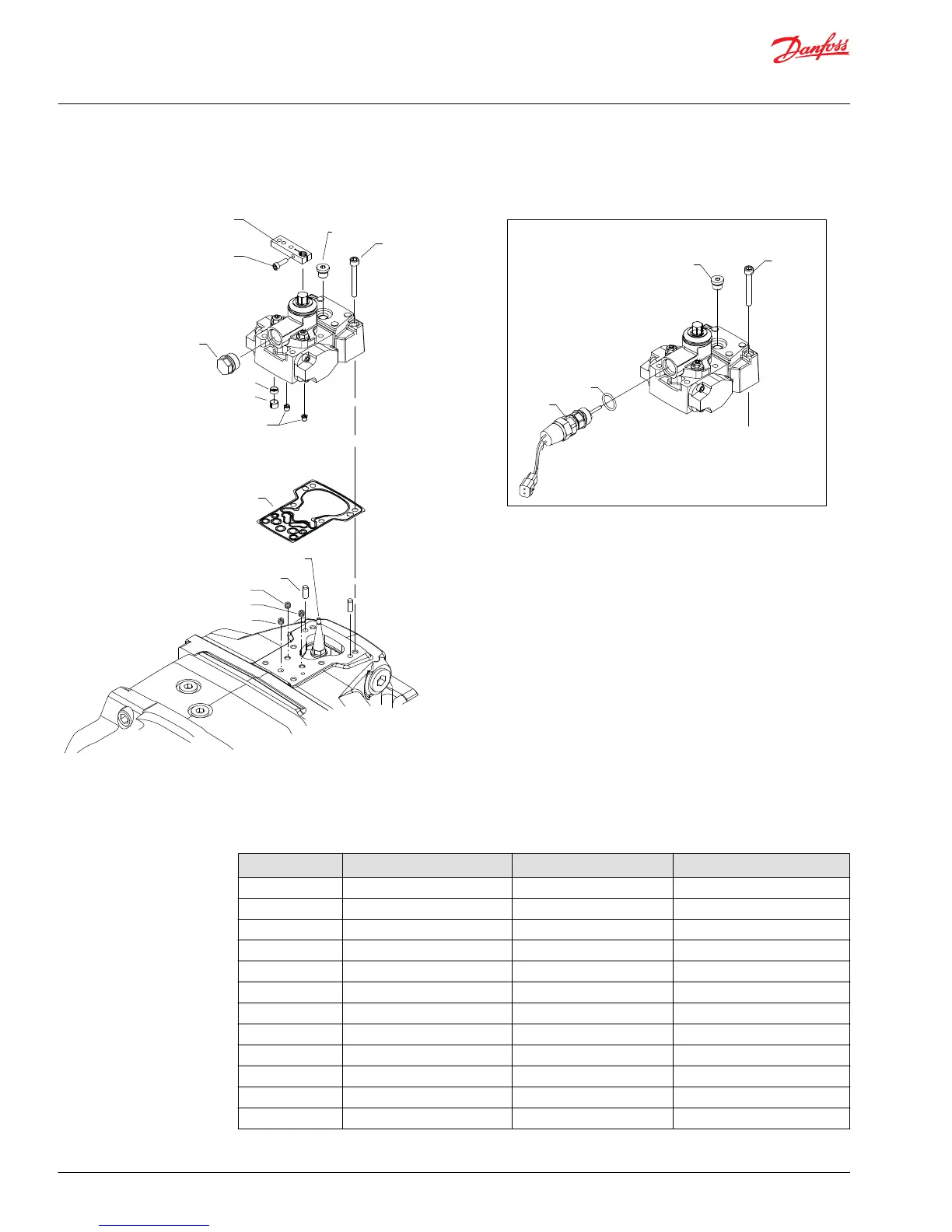

MDC Legend - tandems
Wrench size and torque
Item Description Wrench size Torque
D065 O-ring plug 3/16 internal hex 12 N•m [9 lbf•ft]
D084 screen - -
D098 ring - -
D200 feedback pin 13 mm deep well socket 22.5-27.5 Nm [16.6-20.3 lbf•ft]
D250 cap screw 5 mm internal hex 13.3 Nm [9.8 lbf•ft]
D750 neutral start switch - -
D751 Oring - -
D735 plug 3/4 inch 30 Nm [22 lbf•ft]
F00A servo orifice 3 mm internal hex 2.5 Nm [1.8 lbf•ft]
F00B servo orifice 3 mm internal hex 2.5 Nm [1.8 lbf•ft]
F00P supply orifice 3 mm internal hex 2.5 Nm [1.8 lbf•ft]
F00T tank orifice 3 mm internal hex 2.5 Nm [1.8 lbf•ft]
Service Manual
H1 45/53/60/68 Tandem Closed Circuit Axial Piston Pumps
Minor repair
50 |
©
Danfoss | June 2018 520L0928 | AX00000103en-US0303
