Angle sensor on EDC
Removal
1. Clean the exterior of the pump to remove debris.
2. Remove protection cover screws (D767) using a 4 mm internal hex wrench.
3. Remove the protection cover from the control.
4. If protection cover is damaged, discard.
5. Remove sensor screws (D770) using a 4 mm internal hex wrench.
6. Remove and discard the sensor.

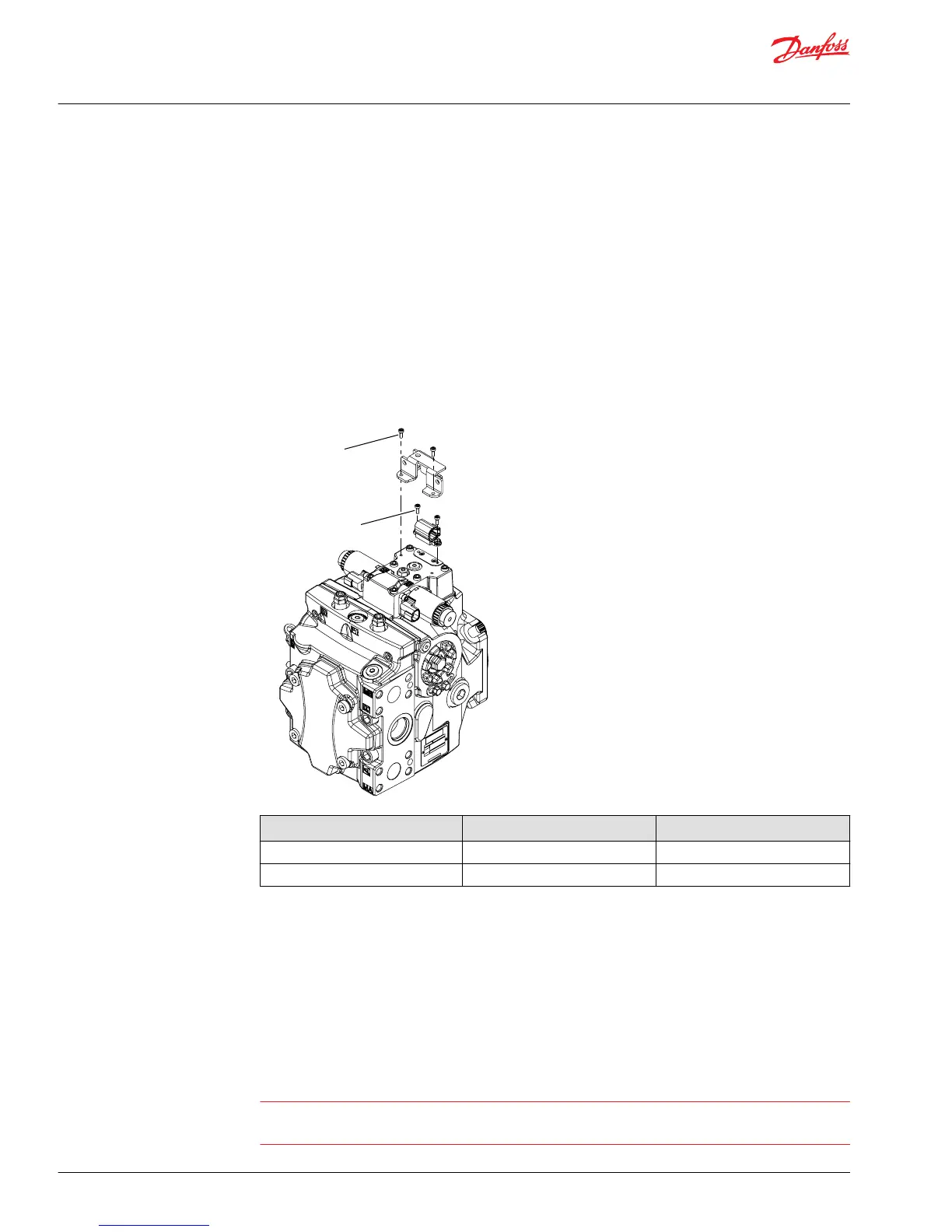

Position sensor
D767
D770
Item Wrench size Torque
D767 4 mm 1.85 N•m [1.36 lbf•ft]
D770 4 mm 1.85 N•m [1.36 lbf•ft]
Installation
1. Position sensor on control housing.
2. Using a 4 mm internal hex wrench, fasten sensor to control housing with screws (D770). Torque
screws to 1.85 N•m [1.36 lbf•ft].
3. Postion protection cover on control housing over sensor.
4. Using a 4 mm internal hex wrench, fasten protection cover with screws (D767). Torque screws to 1.85
N•m [1.36 lbf•ft].
W
Warning
Calibration of sensor output in vehicle software is manditory after sensor replacement because
output signal can vary from one sensor to the next.
Service Manual
H1 45/53/60/68 Tandem Closed Circuit Axial Piston Pumps
Minor repair
52 |
©
Danfoss | June 2018 520L0928 | AX00000103en-US0303
