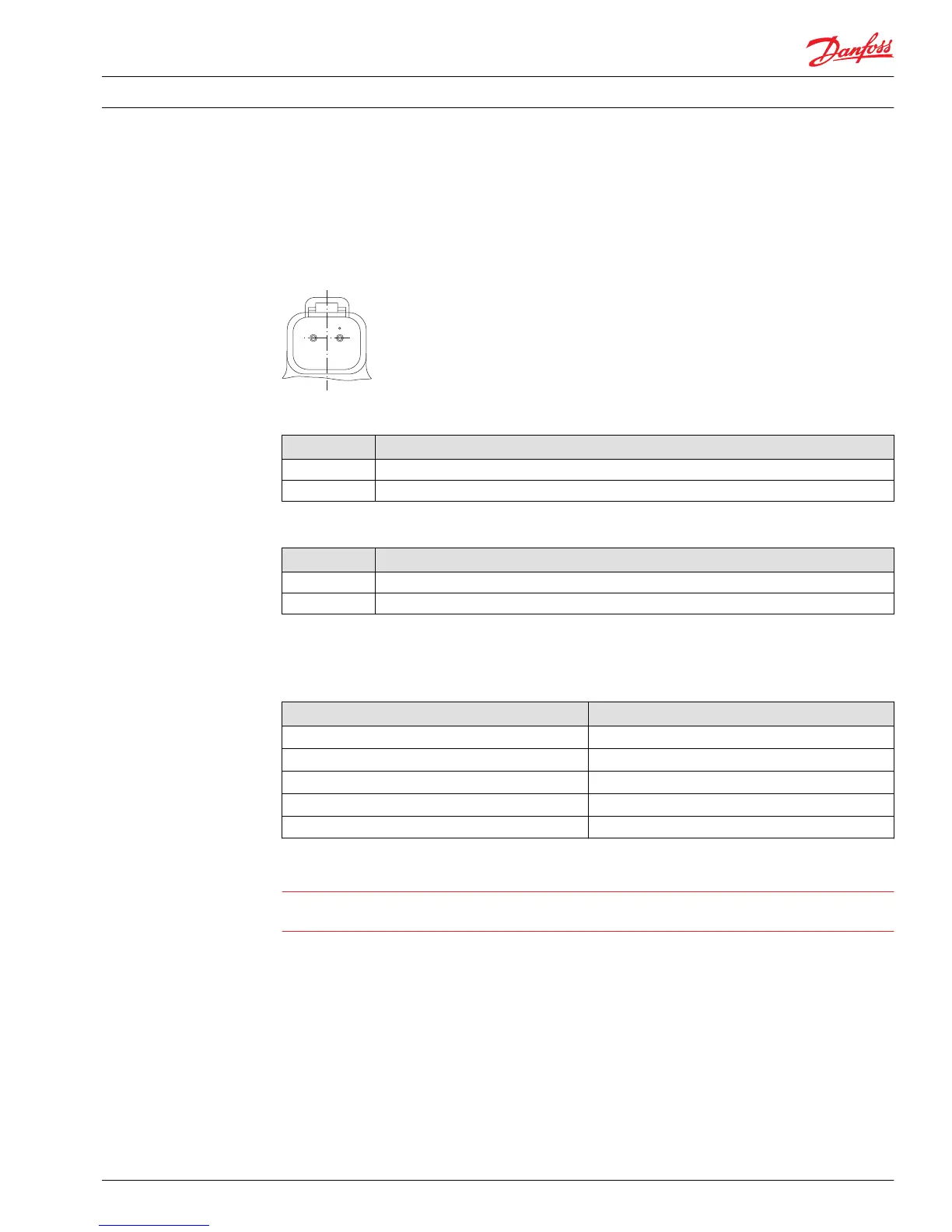

Danfoss H1P Series Electrical Installation

Pinout
DEUTSCH connector
Pin location
1 2
Pinout
Pin Function
1 PWM signal
2 Ground
Pinout (alternative)
Pin Function
1 Ground
2 PWM signal
Pin compatibility
PLUS+1
®
module pin type
Pin Function
1,2 DOUT
1,2 DOUT/PVG Power
1, 2 PWMOUT/DOUT/PVG Power supply
1, 2 PWMOUT/DOUT/PVGOUT
1, 2 Power ground
W
Warning
Unintended vehicle or machine movement hazard. Verify the wiring harness to ensure the correct PLUS
+1
®
pin is properly connected to each control pin.
Electrical Installation
H1 Pump 3-Position (FNR) Electric Control
Electrical installation
11025001 • Rev BA • September 2015 7
