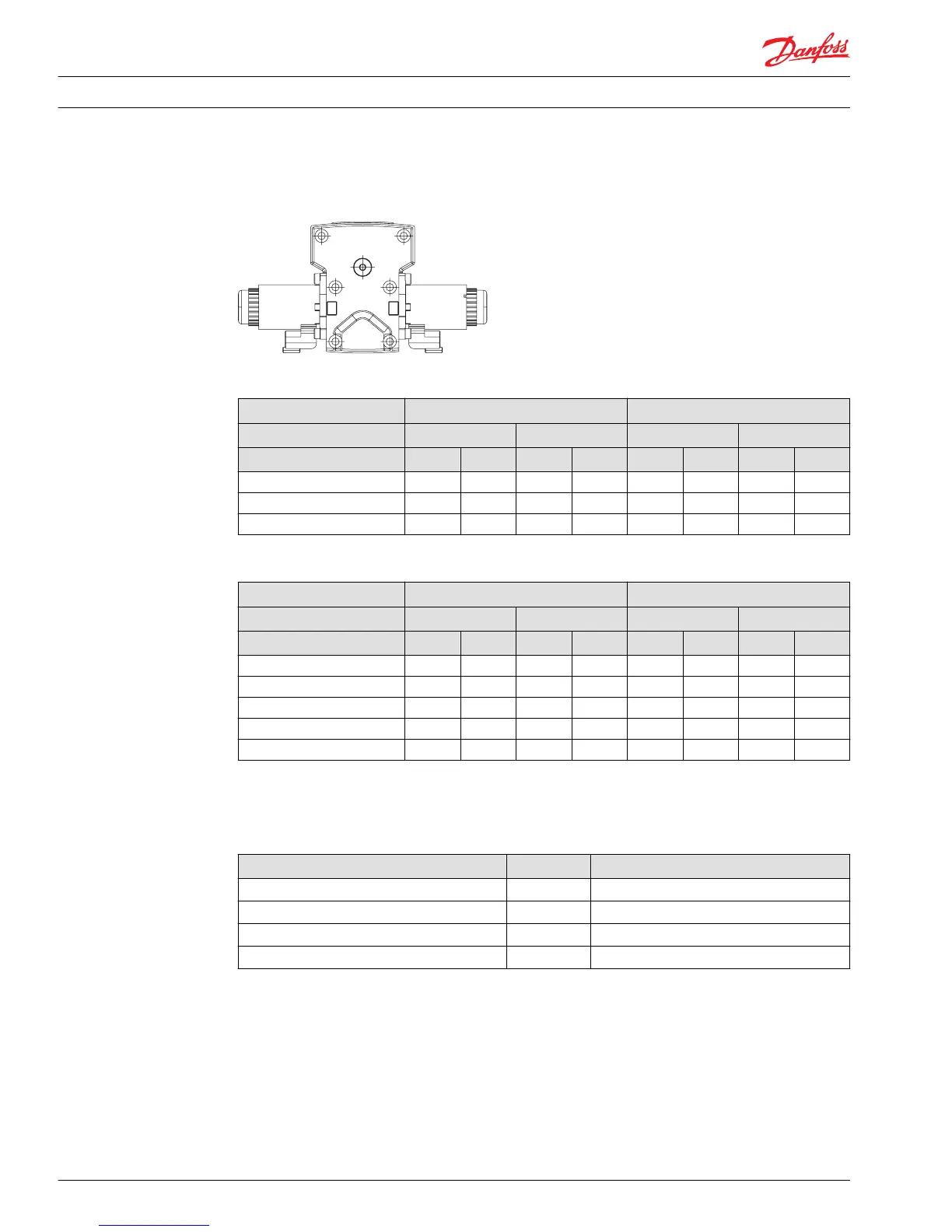

Danfoss H1P Series Electrical Installation

Input/output matrix
3-position FNR/C1 and C2 location
C1
C2
Single pump output flow direction versus control signal
Shaft rotation CW CCW
Front Rear Front Rear
Coil energized C1 C2 C1 C2 C1 C2 C1 C2
Port A in out — — out in — —
Port B out in — — in out — —
Servo port pressurized M5 M4 M5 M4 M5 M4 M5 M4
Tandem pump output flow direction versus control signal
Shaft rotation CW CCW
Front Rear Front Rear
Coil energized C1 C2 C1 C2 C1 C2 C1 C2
Port A in out — — out in — —
Port B out in — — in out — —
Port C — — in out — — out in
Port D — — out in — — in out
Servo port pressurized M5 M4 M5 M4 M5 M4 M5 M4
Mating connector
DEUTSCH connector parts list
Description Quantity Ordering number
Connector
1 DEUTSCH DT06-2S
Wedge lock
1 DEUTSCH W2S
Socket contact (16 and 18 AWG)
2 DEUTSCH 0462-201-16141
Mating connector kit
1 Danfoss K29657
Electrical Installation H1 Pump 3-Position (FNR) Electric Control
Electrical installation
8 11025001 • Rev BA • September 2015
