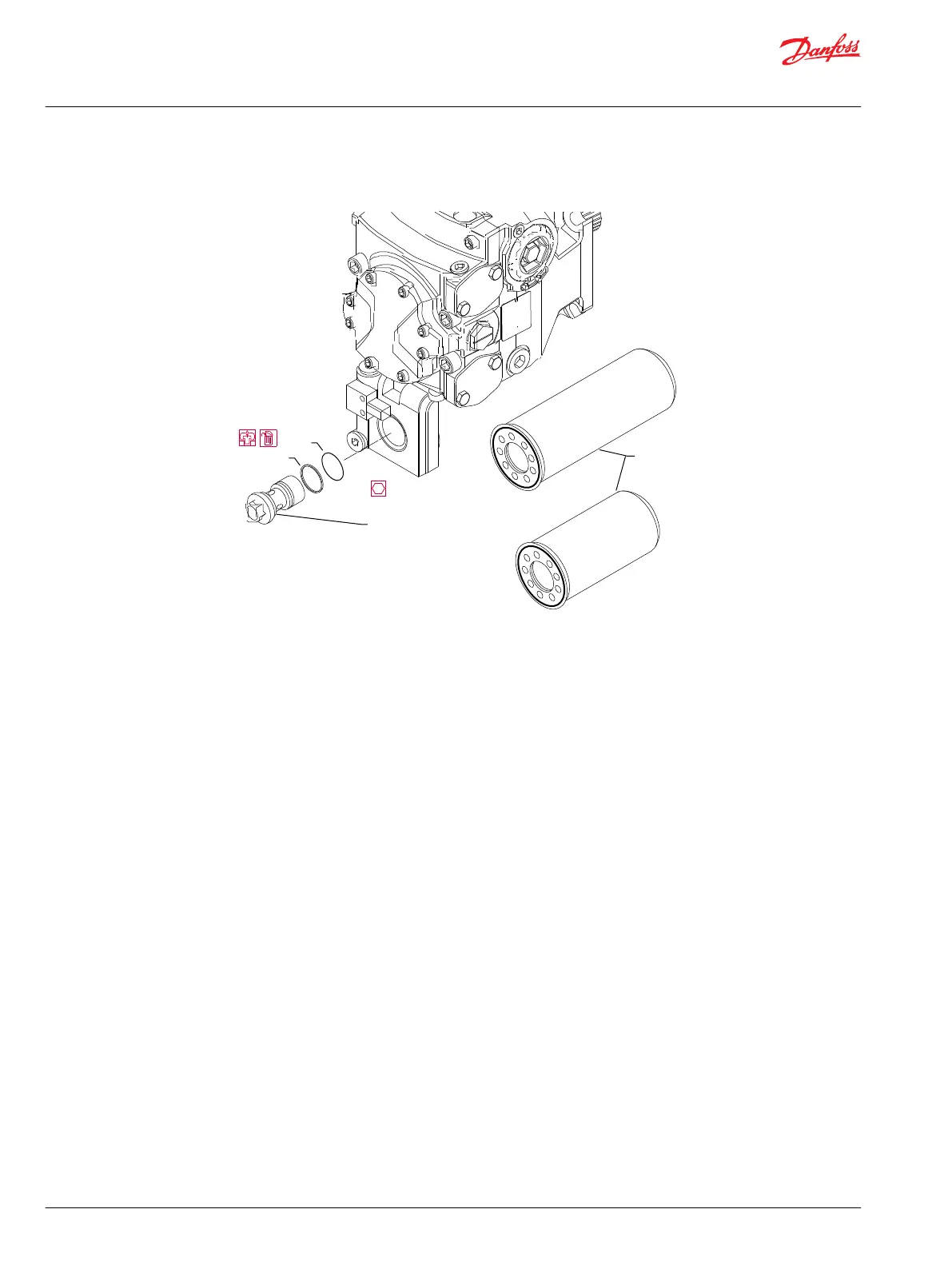

Danfoss H1P Series User Manual

External Filter Repair
T015
24mm
P106 035E
T150
T035
T045
1. With the prime mover off, hold the filter (T150) in place, and remove the plug (T015) using a 24 mm
wrench.
2. Remove the filter.
3. Remove and discard the seal (T045) and O-ring (T035).
4. Inspect the plug and sealing surfaces in the filter bracket.
5. Replace any damaged components.
6. Install new seal (T045) and O-ring (T035) on plug.
7. Apply hydraulic fluid to the O-ring and seal for lubrication.
8. Insert the plug into the bracket.
9. Use a 24 mm wrench to hold the plug in place and install the replacement filter.
Hand tighten filter till it contacts O-ring, then tighten 1/2 turn further.
10. Start the prime mover.
Cycle the pump through normal machine operation and check for leaks.
Service Manual
H1P 069—H1P 250 Axial Piston Single Pumps
Minor Repair
54 |
©
Danfoss | September 2020 AX152886482551en-000504
