P106 497E
D250
Electric control
mounting bolt
E350
Servo can locking bolt
L010 Pressure limiter adjusting screw
L024 Pressure limiter locking nut
L028 Pressure limiter plug (special)
L012 Pressure limiter cartridge
D015 Neutral adjusting screw
D060 Neutral adjust locking nut
D050 Coil mounting bolt
B015 O-ring plug, 7/16 - 20
G302 O-ring plug, 5/16 - 24 UNF
G300 O-ring plug, 9/16 - 18
B035 O-ring plug, see table
G250 O-ring plug, 9/16 - 18
G302
O-ring plug
5/16 - 24 UNF
D065 O-ring plug, 7/16 - 20
B020 O-ring plug
1-1/16 - 12

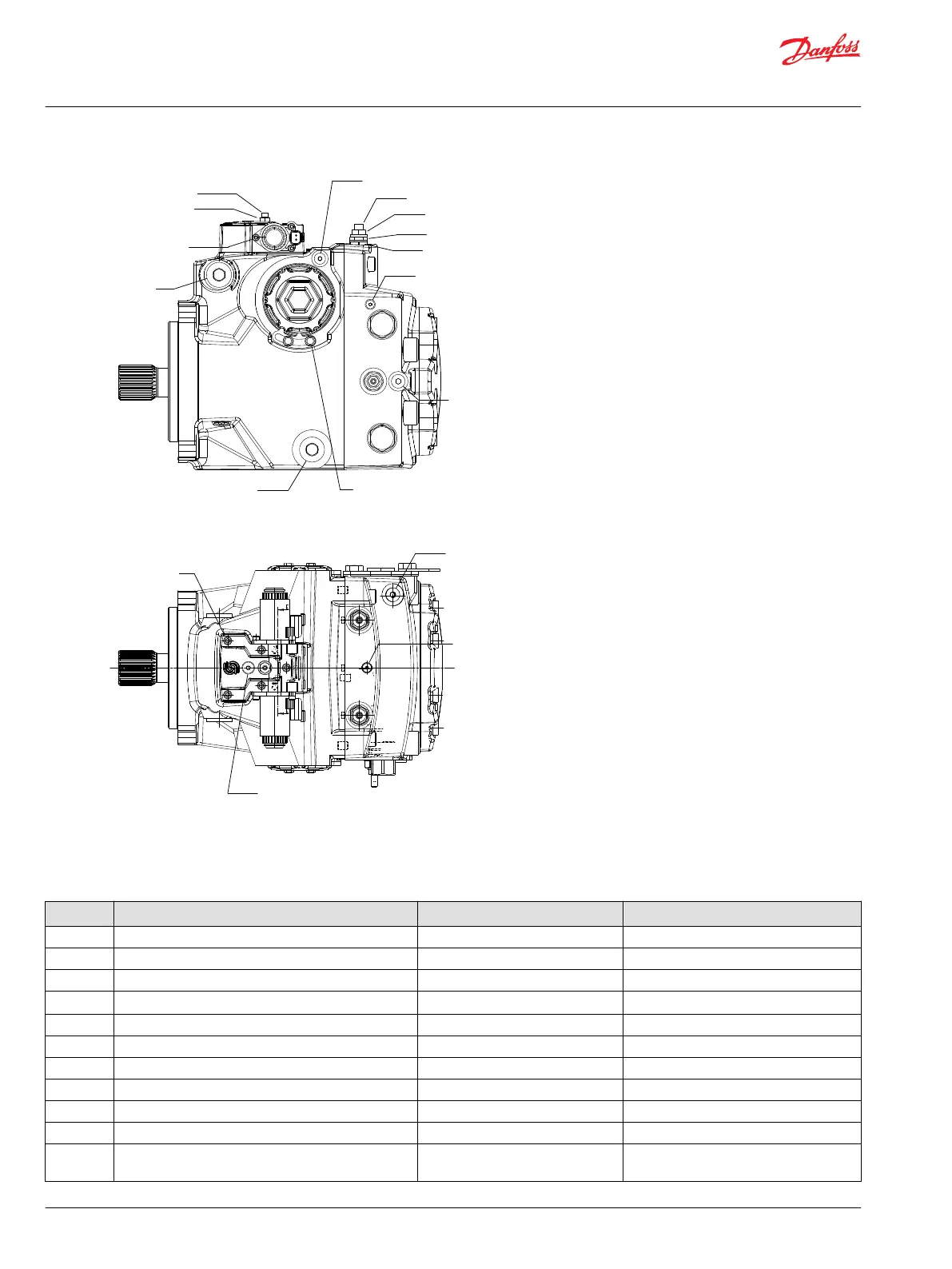

Fastener Size and Torque Chart
H1P 069—250
Item Fastener Wrench size Torque
D015 Neutral adjust screw 4 mm internal hex NA
D050 Coil mounting bolt 4 mm internal hex 8 N•m [6 lbf•ft]
D060 Neutral adjust locking nut 13 mm 10 N•m [7 lbf•ft]
D200 Swash plate feedback pin (not shown) 13 mm deep well socket
25 N•m [18 lbf•ft]
D250 Electric control mounting bolt 5 mm internal hex 13.3 N•m [9.8 lbf•ft]
E350 Servo can locking bolt 10 mm 14.5 N•m [11 lbf•ft]
T015 Filter mounting bolt 24 mm 21 N•m [15 lbf•ft]
T025 Filter adapter gage plug 6 mm internal hex 18 N•m [13 lbf•ft]
V010 Charge pressure cartridge 22 mm 52 N•m [38 lbf•ft]
V020 Charge pressure adjusting screw 4 mm internal hex NA
V022 Charge pressure locking nut 13 mm
19 mm (210/250)
12 N•m [9 lbf•ft]
Service Manual
H1P 069—H1P 250 Axial Piston Single Pumps
Torque Chart
