Danfoss iC7 Series

e30bj658.11
17
15
7
3
5
2
1
9
8
6
4
13
11
10
16
14
12
18
A+
A–
B+
B–
1

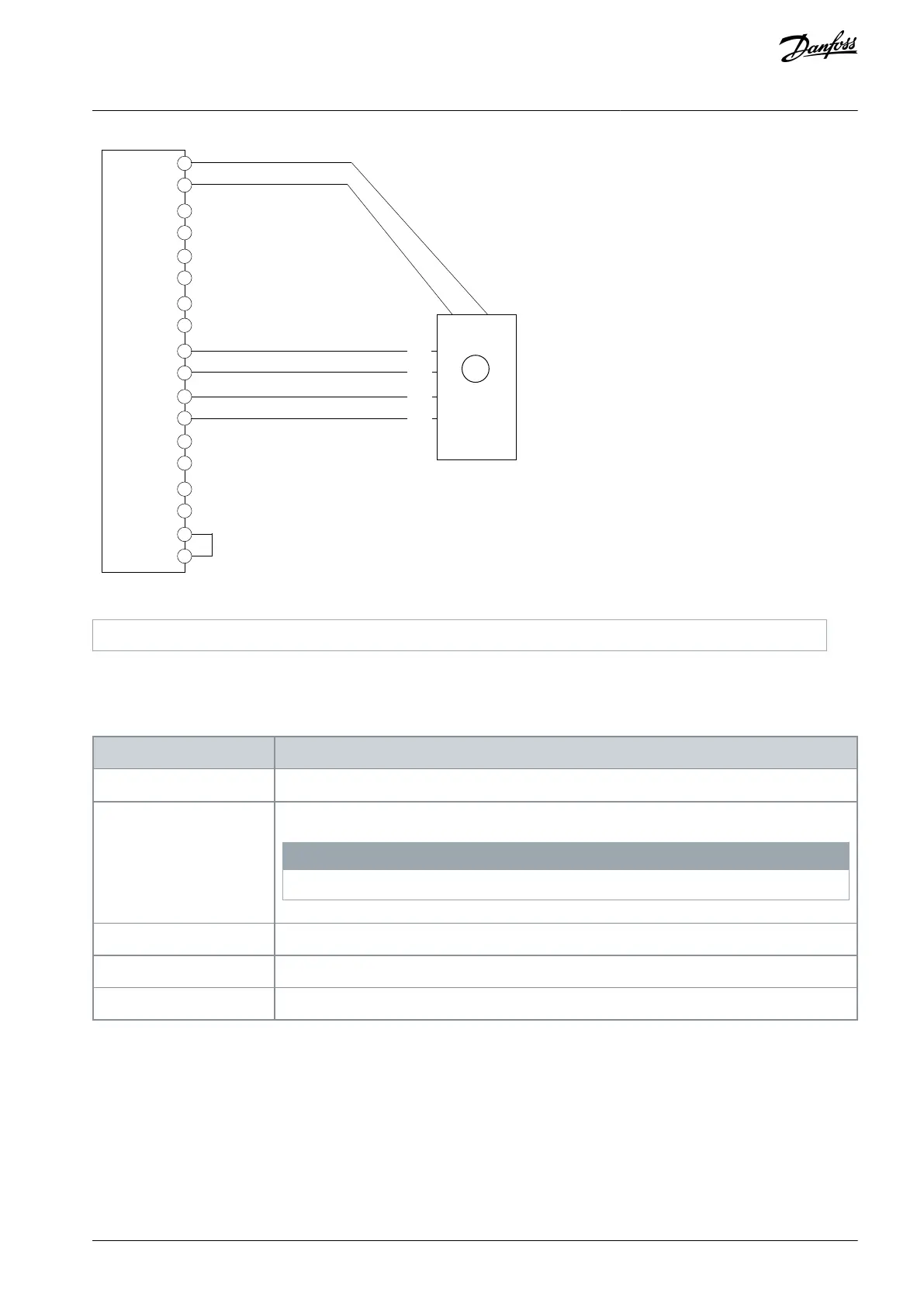

Illustration 12: Wiring Configuration for SinCos Encoder
1
Encoder
5.5.7 SSI Encoder
Absolute position is read from the encoder and used to set the actual position after power-up.
Table 14: Parameters for SSI Encoder
Parameter
Setting
9.4.1 Interface Configuration
Select [17] SSI Z,D.
9.4.4 Encoder Supply Voltage
Set the appropriate supply voltage.
N O T I C E
Voltage can be up to 24 V. Setting the voltage too high can damage the connected encoder.
9.6.1 Singleturn Resolution
Set the number of bits used for 1 revolution.
9.6.2 Multiturn Resolution
Set the number of bits used for revolution count.
9.6.5 BiSS/SSI Clock Rate
Set the clock rate used for SSI or BiSS.
