Danfoss iC7 Series

e30bk902.10
17
15
7
3
5
2
1
9
8
6
4
13
11
10
16
14
12
18
Ref+
Ref–
Sin+
Sin–
Cos
Cos–
B+
B–
A+
A–
1
2
3

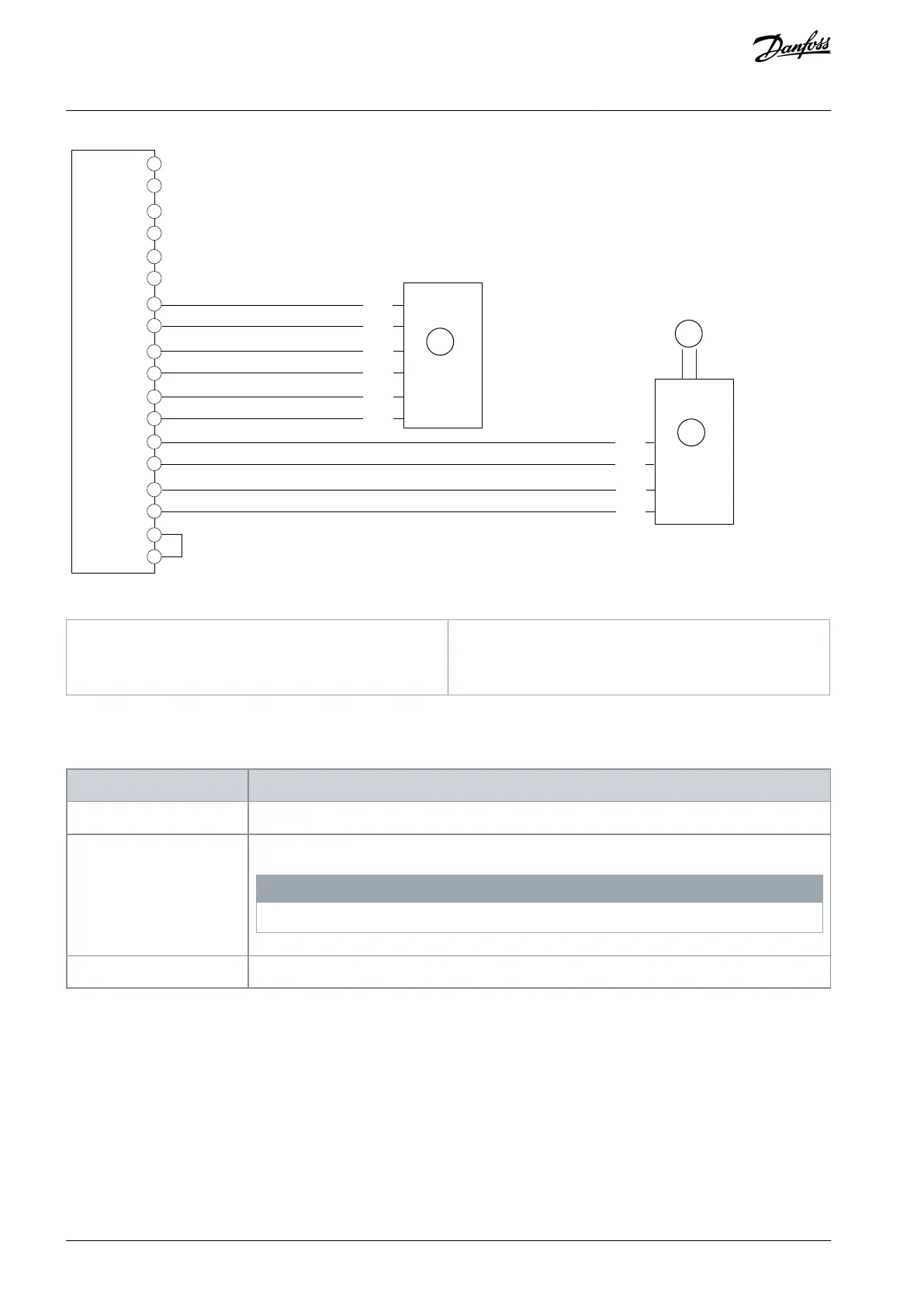

Illustration 11: Wiring Configuration for Resolver and Incremental (TTL) Encoder
1
Resolver
2
External power supply
3
Incremental encoder (only TTL on Z and D)
5.5.6 SinCos Encoder
Table 13: Parameters for SinCos Encoder
Parameter
Setting
9.4.1 Interface configuration
Select [10] SinCos A,B.
9.4.4 Encoder Supply Voltage
Set the appropriate supply voltage.
N O T I C E
Voltage can be up to 24 V. Setting the voltage too high can damage the connected encoder.
9.5.1 Resolution Device 1
Set the resolution of the encoder in pulses per revolution.
AQ390830267692en-000601 / 136R027324 | Danfoss A/S © 2023.06
Encoder/Resolver Installation and
Configuration
Functional Extension Options
Operating Guide
