Danfoss iC7 Series

e30bk899.10
17
15
7
3
5
2
1
9
8
6
4
13
11
10
16
14
12
18
A+
A–
B+
B–
Clock+
Clock–
Data+
Data–
1
3
2

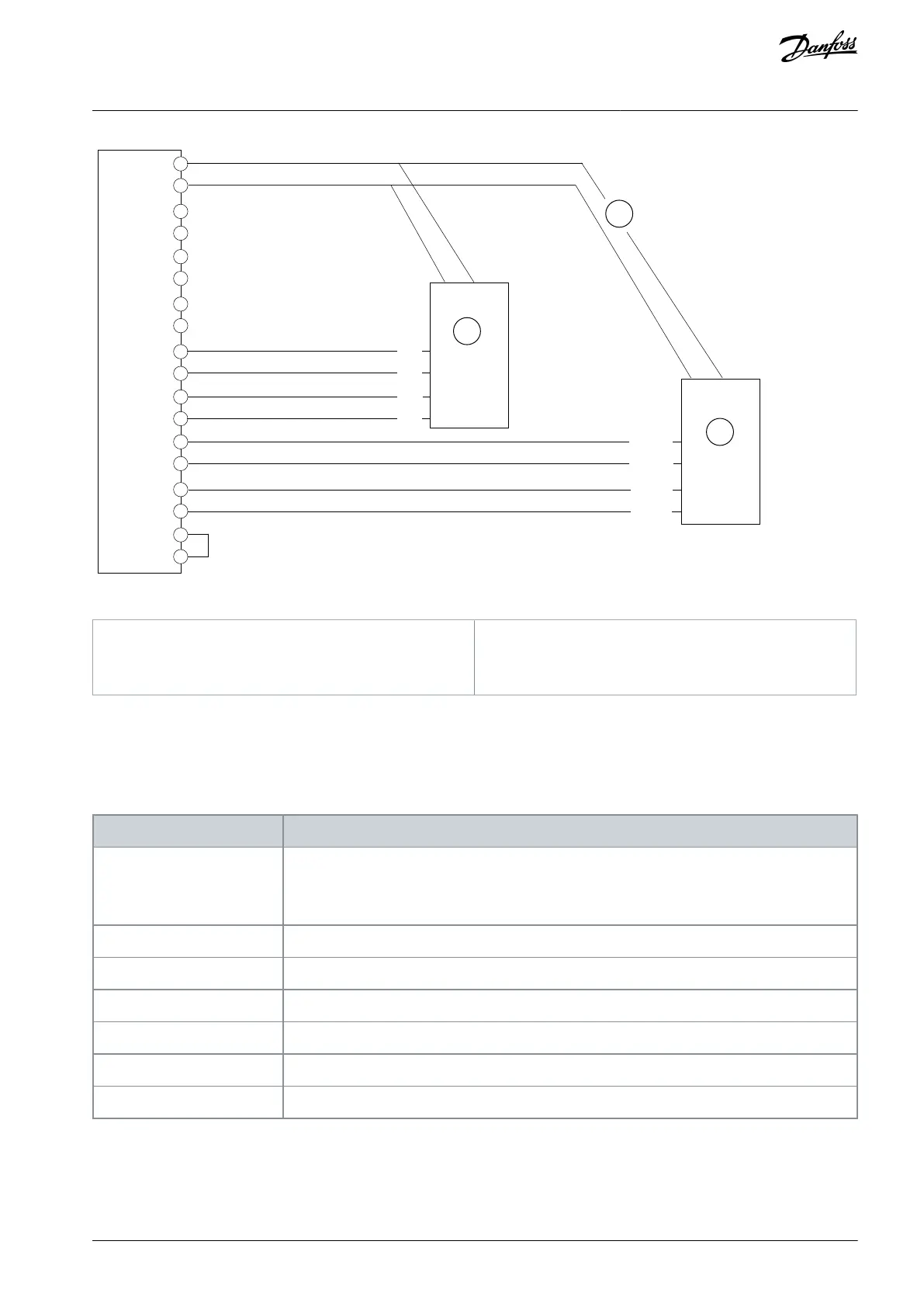

Illustration 14: Wiring Configuration for SSI and Incremental (TTL or HTL) Encoder
1
Incremental encoder
2
External power supply
3
SSI absolute encoder
5.5.9 SSI Encoder with Incremental or SinCos Track
This example shows the connection of an SSI encoder with incremental (TTL, HTL) or SinCos track on Z,D and A,B as channel 1. The
absolute position is read from the encoder and used as actual position. The incremental/SinCos track is used to compensate for
communication delay and too few absolute position readings due to communication speed.
Table 16: Parameters for SSI Encoder with Incremental or SinCos Track
Parameter
Setting
9.4.1 Interface configuration
Select the type of connected encoder:
[33] SSI Z,D with 2 track incremental A,B.
[34] SSI Z,D with 2 track SinCos A,B.
9.4.4 Encoder Supply Voltage
Set the appropriate voltage.
9.5.1 Resolution Channel 1
Set the resolution of the incremental track connected to A and B in pulses per revolution.
9.6.1 Singleturn Resolution
Set the number of bits used for 1 revolution of the connected SSI encoder.
9.6.2 Multiturn Resolution
Set the number of bits used for counting the revolutions of the connected SSI encoder.
9.6.4 SSI Data Format
Select the data format of the connected SSI encoder.
9.6.5 BiSS/SSI Clock Rate
Select the clock rate according to the SSI encoder specifications.
AQ390830267692en-000601 / 136R0273 | 27Danfoss A/S © 2023.06
Encoder/Resolver Installation and
Configuration
Functional Extension Options
Operating Guide
