User Guide | Intelligent Purging System (IPS 8) for Ammonia - Technical data, installation and use
© Danfoss | DCS (ms) | 2021.03
BC344024774466en-000201 | 15

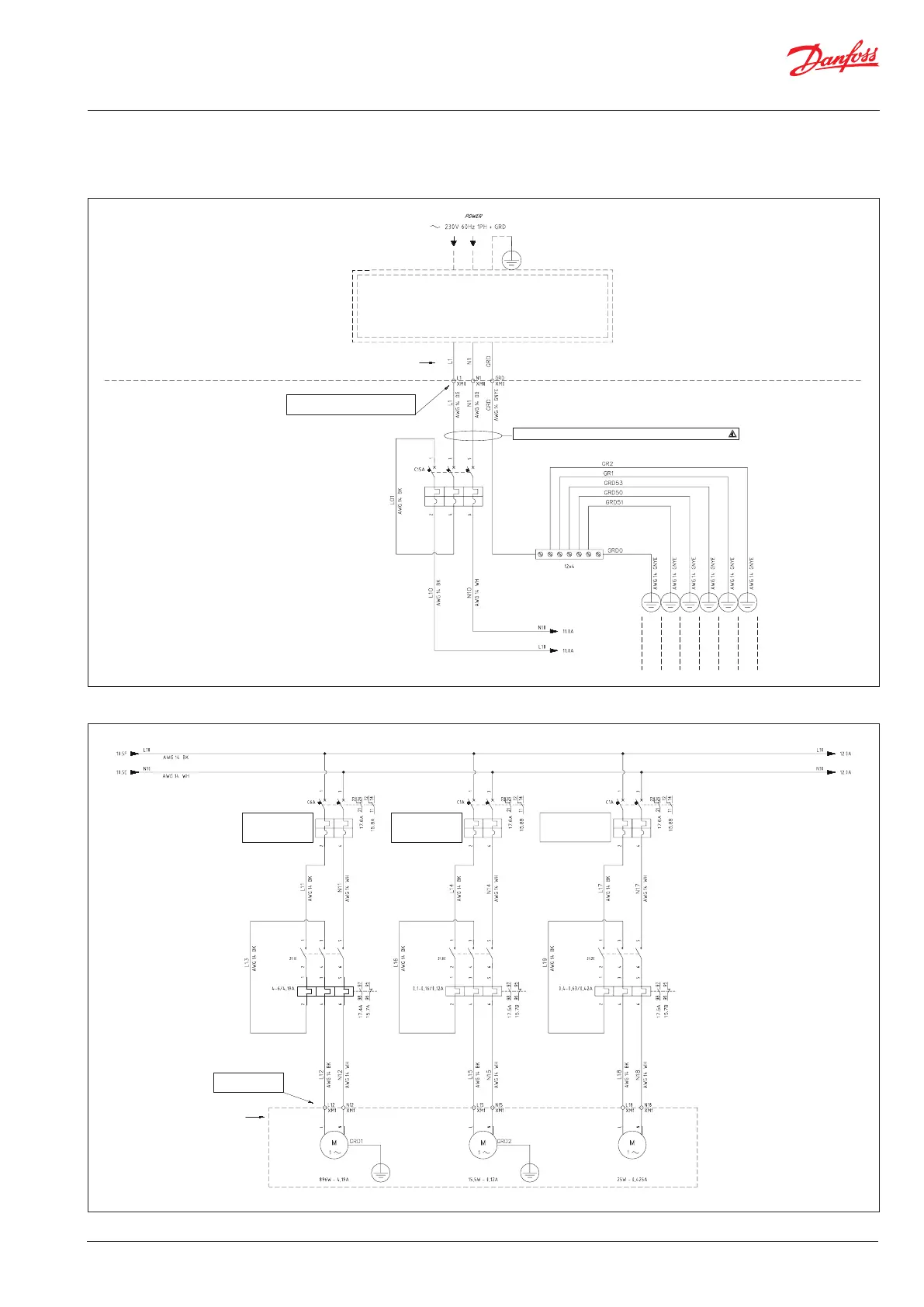

Electrical wiring
(continued)
M1
COMPRESSOR
M2
CONDENSER FAN
VR1
AIR EXTRACTION FAN
21KM1 21KM2 21KM3
Field Installed
Use Copper Conductors Only 75°
11FR1 11FR311FR2
Terminal block
torque 0,5-0,6 Nm
11QF311QF211QF1
Terminal Block For Field Installed
Calibrate aux.cont.
OF-OF
Calibrate aux.cont.
OF-OF
Calibrate aux.cont.
OF-OF
Fig. 17
Fig. 18
10GRD
Main protection shall be provided in
the field, use Fuse 16A CC Fast or
Circuit Breaker C16A
Use Copper Conductors Only 75°
Terminal Block For Field Installed
Torque 0,5-0,6 Nm
Field Installed
Insulate conductors in heat shrink tubing with signaling
10QF0
Electric Panel
TERRE IMPIANTO SYSTEM SIDE
LATO IMPIANTO SYSTEM SIDE
PIASTRA FRONTALE FRONTAL PLATE
PORTA QUADRO PANEL DOOR
CARPENTERIA QUADRO PANEL CARPENTRY PIASTRA QUADRO PANEL PLATE
