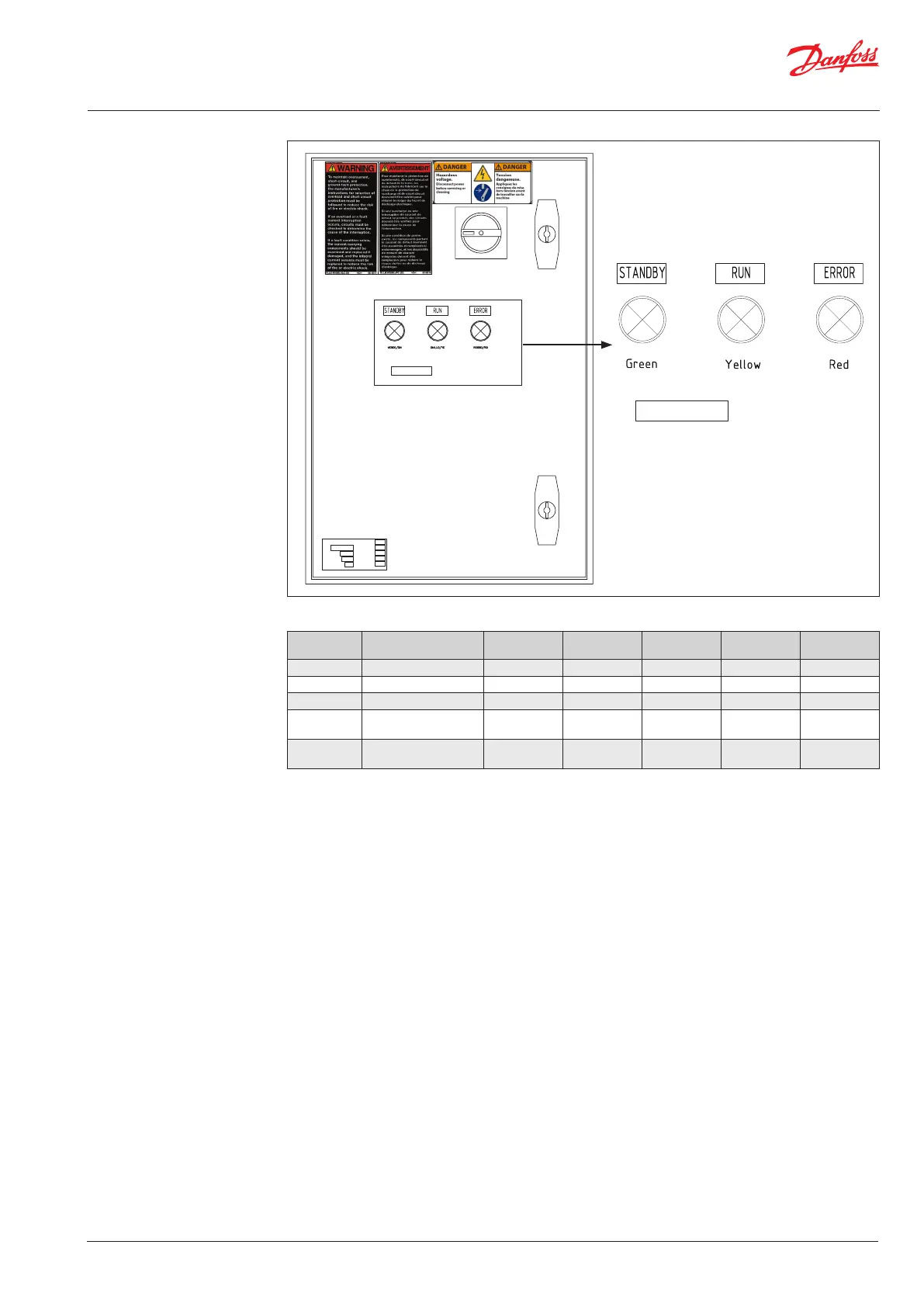

Fig. 25
Lights ON Status
Compressor
ON
Compressor
OFF
Purge Valve
ON
Purge Valve
OFF
Alarm
Green Stand by x x
Yellow Run x x
Green & Yellow Purging x x
Green & Yellow
& Red
Uninterupted Long time
purging (> 150 h)
x x*
Red
Occurs when: Check list
of alarms description
(x**) x** x
* The purger continuous purging until max running period (default 160 h) is reached and the purger compressor will stop
** The purger compressor stops when alarm occurs
Light Indicators
21HL1 21HL2 21HL3
PURGING
Progeco srl
MODEL
WIRING DIAGRAM
ELECTRIC SUPPLY
FULL LOAD CURRENT
Industrial control panel for general use
LARGEST MOTOR
FLA
LARGEST RESISTANCE
RLA
SCCR CURRENT
CONSTRUCTION YEAR
ENCLOSURE
RATING
DANFOSS INTELLIGENT
PURGING SYSTEM (IPS 8) – NAM
RIV19E01
1PH + N/GRD
230V 60Hz
6,2A
4,19A
0,24A
18kA
03 / 2020
TYPE 12
Via Laghi, Calcinelli (PU)
www.progecoautomazione.it
21HL1 21HL2 21HL3
PURGING
