Navigation - built in MCX
controller
(Placed at the rear of the front
panel door)
Quick Startup
After switching on the controller, a display
window will momentarily show the actual
software version, followed by the default main
operating window shown in Fig. 26.
While in operation mode, the Up/Down arrow
buttons lead the user to the status windows
described in Table 01 below.

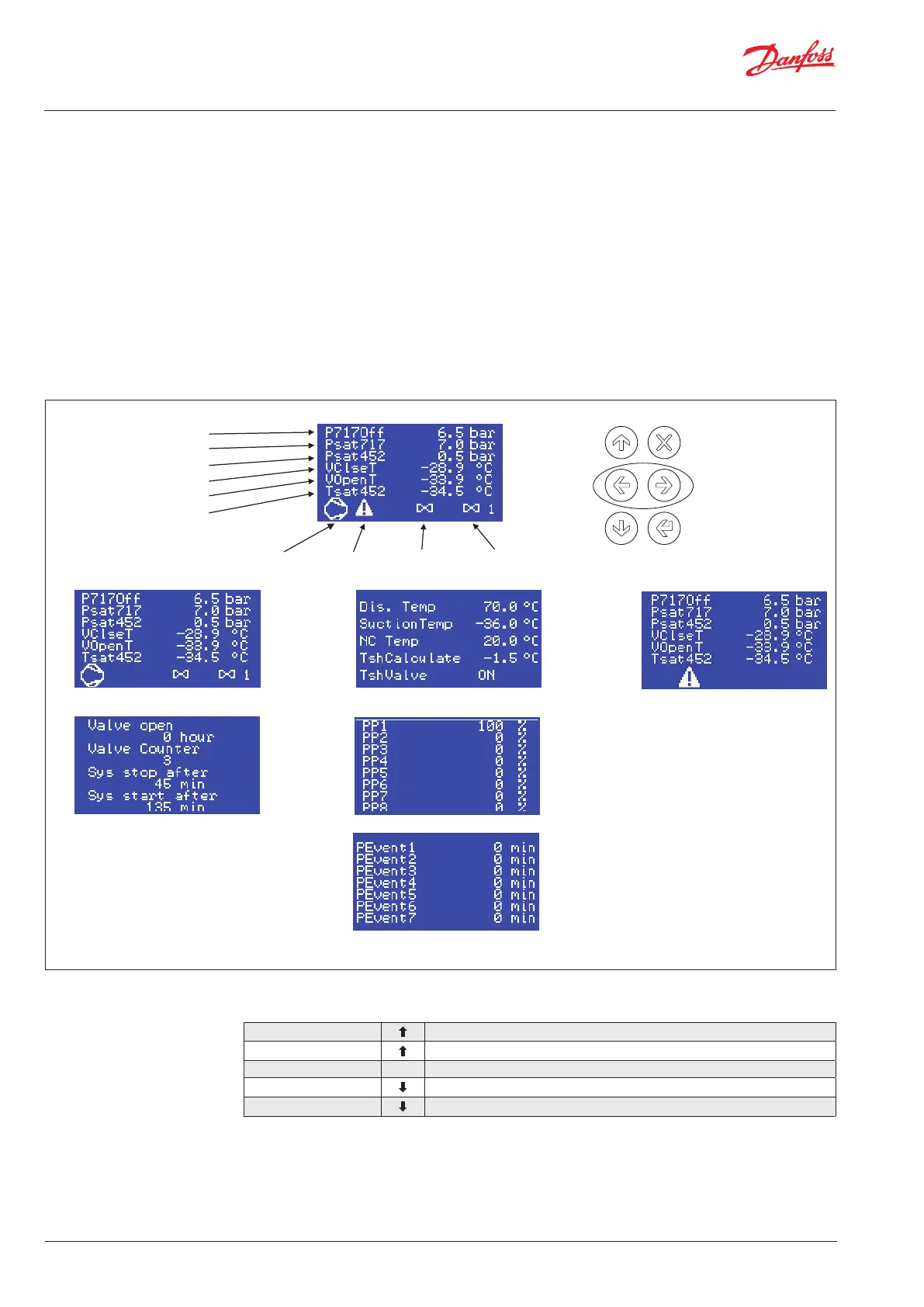

Fig. 26 - Default main window. Operating (start) mode. (Examples only)
Table 01 - Status windows
Purge Point percentage Distribution of the actual purging on the various purge points
Dis. temp.
Actual R452A discharge temperature (°C)
Main Window default See above
Cycle info
Acc. time Purge valve open (h)
Past events
Last 7 purging events (min)
For the fastest possible system configuration after connecting all purge points to the IPS and following
first power up of the IPS, follow these simple instructions:
1. Navigate from the Main Menu to Login
2. Enter password '200'.
3. Choose 'Parameters'.
4. Choose 'Unit Config'
5. Choose 'Valve Settings'
6. Enter the amount of purge solenoid valves connected to the IPS.
R717 low Pres limit
Actual R717 Pres
Actual R452A Pres
Upper Threshold for Purge Valv
e
Lower Threshold for Purge Valv
e
Actual R452A Temp
Compressor on Error/Alarm Purge valve open Purge point (1-8)
Main screen, current informaon on IPS status
Status of purging process and purging counters
Log of purging events
Informaon on Purge points acvity
Temperature and superheat status
Esc .
Up
Down Enter
Not
Used
