Danfoss MCX-RTU User Manual

User Guide | MCX-RTU Rooftop
RS8KE102 | 13
© Danfoss | ADAP-KOOL® | 2018.11
Access Broadcast Sensor Values from the Main Status Screen using the Left Arrow button.

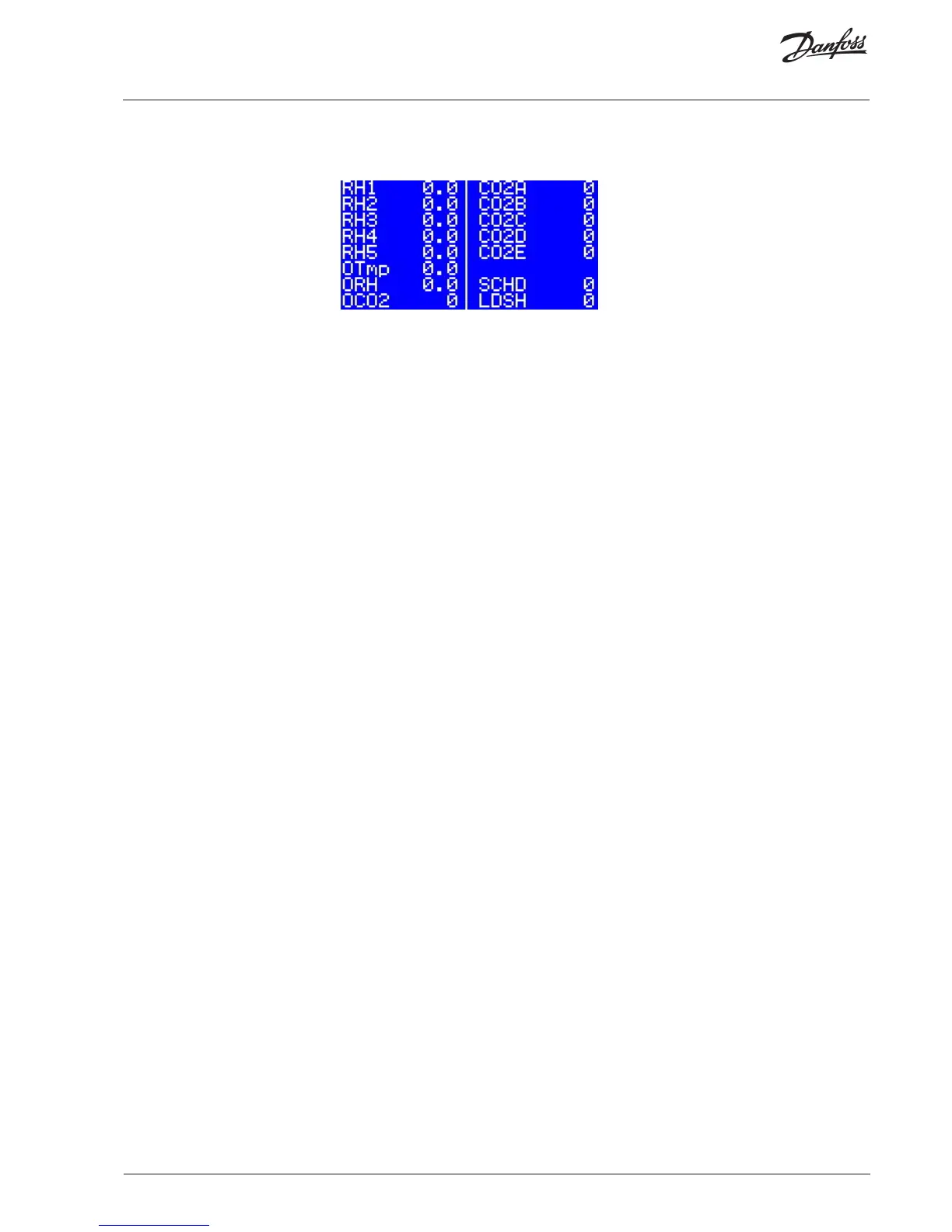

Broadcast Sensor Screen
This screen shows the values that have been received via the broadcast from the AK-SM 800. The
sensors that start with RH and CO2, are just that.
Then you have the three outdoor sensors. The two values at the bottom right are
SCHD(Schedules – bit mask) and LDSH(Load Shed Value)

Danfoss MCX-RTU Specifications

General

Brand	Danfoss
Model	MCX-RTU
Category	Control Unit
Language	English
