Character posi-
tion
Code
Description
AC
AC socket + cabinet light + motor heater control
AD
AC socket + cabinet light + insulation monitor
AE
AC socket + cabinet light + extended I/O terminals + cabinet heater
AF
AC socket + cabinet light + extended I/O terminals + motor heater control
AG
AC socket + cabinet light + extended I/O terminals + insulation monitor
AH
AC socket + cabinet light + extended I/O terminals + cabinet heater + motor heater control
AI
AC socket + cabinet light + extended I/O terminals + cabinet heater + insulation monitor
AJ
AC socket + cabinet light + extended I/O terminals + motor heater control + insulation monitor
AK
AC socket + cabinet light + extended I/O terminals + cabinet heater + motor heater control + insula-
tion monitor
AL
AC socket + cabinet light + cabinet heater + motor heater control
AM
AC socket + cabinet light + cabinet heater + insulation monitor
AN
AC socket + cabinet light + cabinet heater + motor heater control + insulation monitor
AO
AC socket + cabinet light + motor heater control + insulation monitor
The customer socket provides a supply for measurement tools, equipment, or a computer. The socket type is CEE 7/3 ("Schuko",
Type F) or NEMA 5-15 grounded (Type B). The default voltage is 230 V AC (IEC variant) and 115 V AC (UL variant). When using an
external supply, the maximum output power is 450 VA (IEC variant) and 230 VA (UL variant). When using a transformer supply, the
maximum output power is 200 VA for both variants.
e30bu193.10
-XD1
-FCC
-XD10
1
-XD1
2 A
N
L

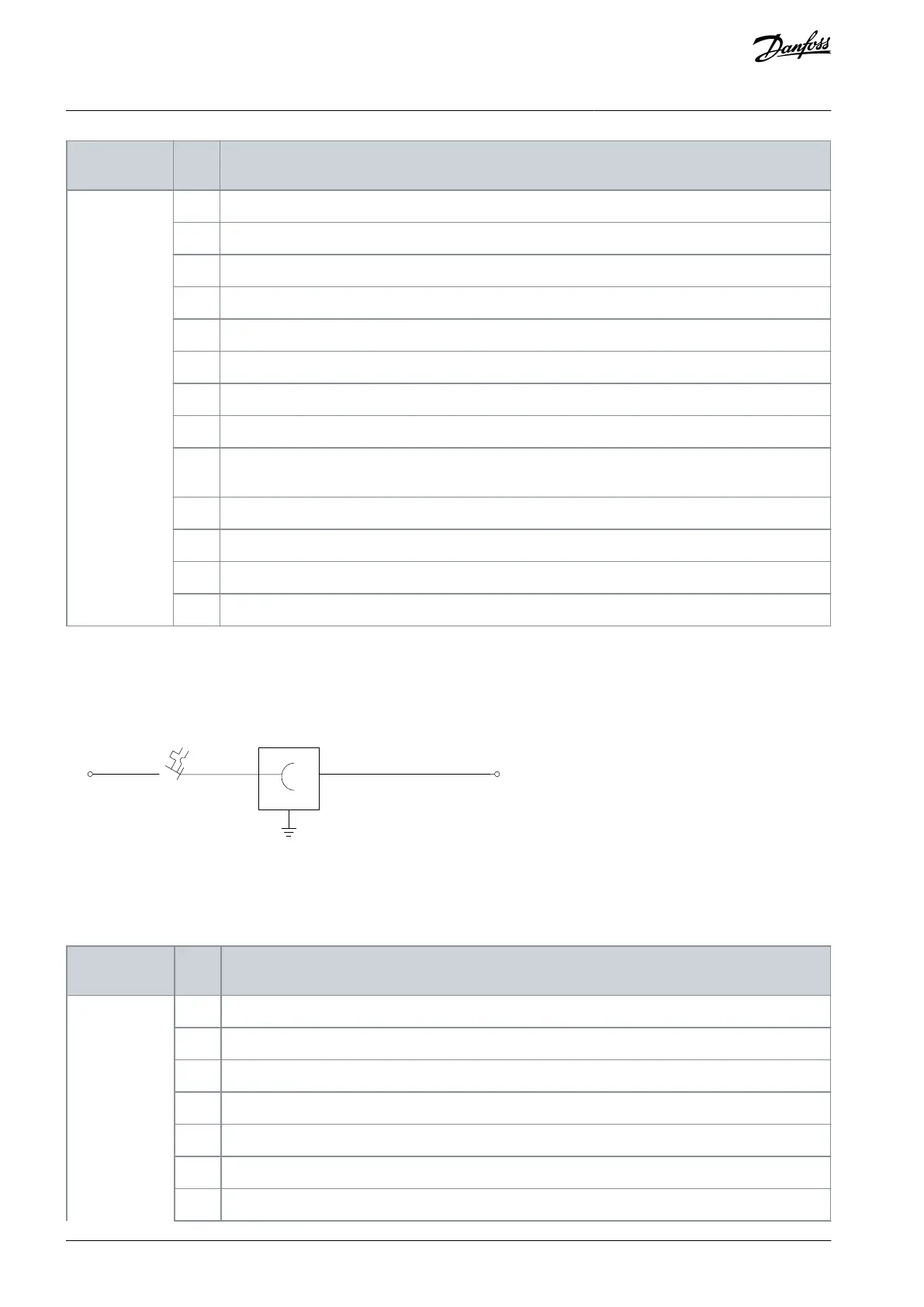

Illustration 52: AC Customer Socket Terminals
5.7.6.5 Extended I/O Terminals
Table 58: Auxiliary Function Type Codes
Character posi-
tion
Code
Description
23–24
A2
Extended I/O terminals
AA
AC socket+cabinet light + extended I/O terminals
AE
AC socket+cabinet light + extended I/O terminals + cabinet heater
AF
AC socket+cabinet light + extended I/O terminals + motor heater control
AG
AC socket+cabinet light + extended I/O terminals + insulation monitor
AH
AC socket+cabinet light + extended I/O terminals + cabinet heater + motor heater control
AI
AC socket+cabinet light + extended I/O terminals + cabinet heater + insulation monitor
AQ262141314214en-000301 / 130R088090 | Danfoss A/S © 2021.11
Electrical Installation
VLT® HVAC Drive FC 102
Operating Guide
