The cabinet heater option increases the inside temperature of the cabinet above the ambient temperature, preventing condensa-
tion in the cabinet. Each cabinet has 1 cabinet heater. The heater element is self regulating. The external supply is connected to
terminal -XD1.1. When the drive is not in run state, the control relay -QAM changes the supply to the output terminals (-XD4). When
the drive is in run state, the control relay disconnects the supply to the cabinet heater. The function is disabled when MCB –FCE is
open.
L
-EB1.4
-EB1.3
-EB1.2
-EB1.1
-XD4

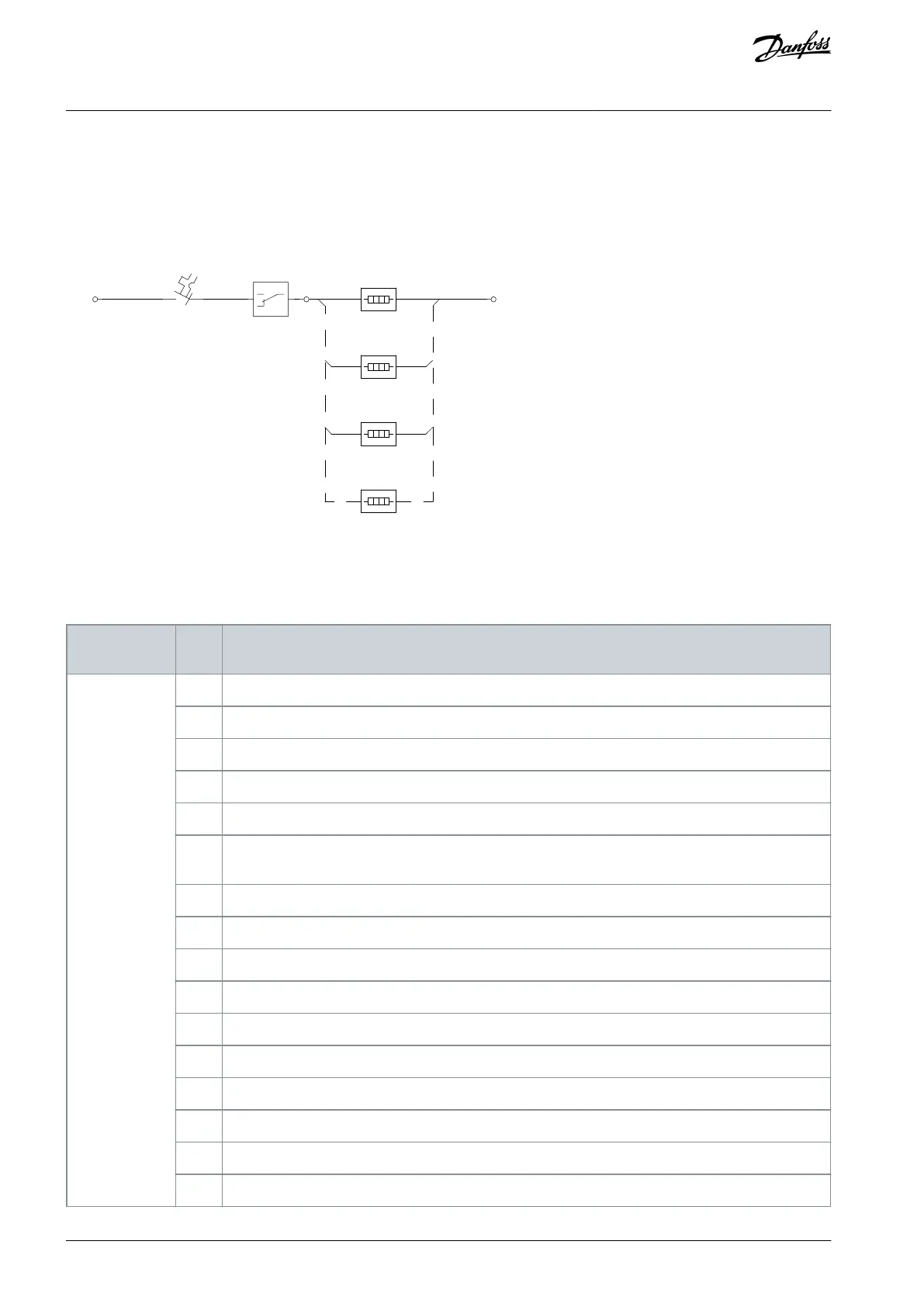

Illustration 53: Cabinet Heater Terminals
5.7.6.7 Motor Heater Control
Table 60: Auxiliary Function Type Codes
AC socket + cabinet light + motor heater control
AC socket + cabinet light + extended I/O terminals + motor heater control
AC socket + cabinet light + extended I/O terminals + cabinet heater + motor heater control
AC socket + cabinet light + extended I/O terminals + motor heater control + insulation monitor
AC socket + cabinet light + extended I/O terminals + cabinet heater + motor heater control + insula-
tion monitor
AC socket + cabinet light + cabinet heater + motor heater control
AC socket + cabinet light + cabinet heater + motor heater control + insulation monitor
AC socket + cabinet light + motor heater control + insulation monitor
Extended I/O terminals + motor heater control
Extended I/O terminals + cabinet heater + motor heater control
Extended I/O terminals + cabinet heater + motor heater control + insulation monitor
Extended I/O terminals + motor heater control + insulation monitor
Cabinet heater + motor heater control
Cabinet heater + motor heater control + insulation monitor
Motor heater control + insulation monitor
AQ262141314214en-000301 / 130R088092 | Danfoss A/S © 2021.11
Electrical Installation
VLT® HVAC Drive FC 102
Operating Guide
