Serviceability: Open center plug is serviceable.
1. Use a 6 mm internal hex to remove cavity plug from valve.
2. Use a 3 mm internal hex to remove open center plug.
3. Clean or replace open center plug.
4. Install open center plug.
5. Torque plug to 4 Nm [35 lbf•in].
6. Install new seal washer and install cavity plug. Torque to 35 Nm [130 lbf•in].
Open center plug

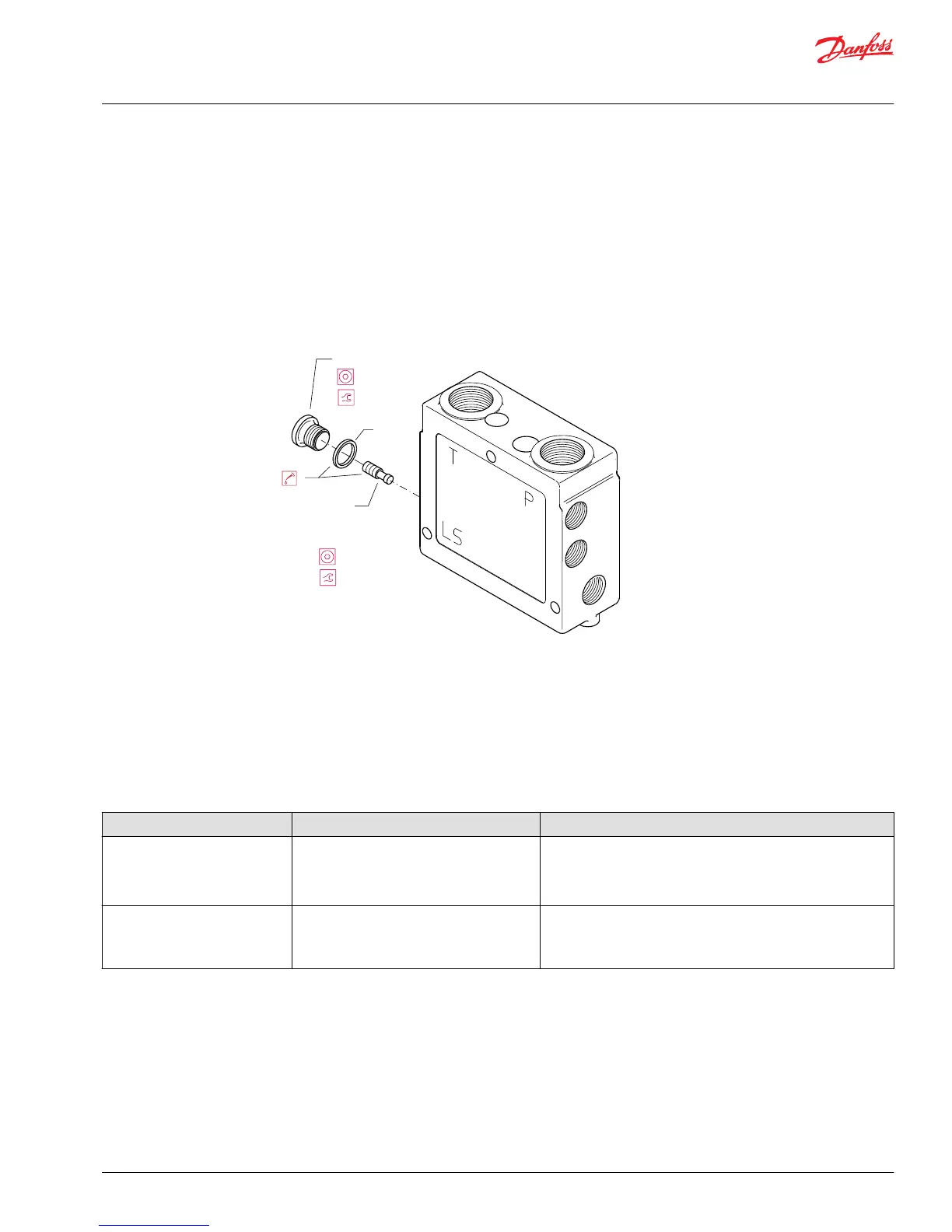

Closed center plug and orifice
Description: Plug that is installed in the inlet cover for a system with a variable displacement pump.
Location: In the PVP module (Inlet cover).
Function: Allow connection for the load sense signal to the pump and provide connection to the main
system relief valve.
Failure mode Cause Corrective action
Valve operates at system relief
setting at all times
Plug and orifice are not seated properly
Reinstall orifice and torque to 4 Nm [35 lbf•ft] using a 3 mm
internal hex wrench.
Reinstall plug and torque to 8 Nm [71 lbf•in] using a 8 mm internal
hex wrench
Can not adjust main relief above
pump pressure setting of 30 Bar
[450 psi] Delta for closed inlet
sections
Orifice is plugged Remove and clean orifice. Reinstall
Serviceability: Closed center plug and orifice are serviceable.
1. Use a 6 mm internal hex to remove cavity plug from valve.
2. Use a 4 mm internal hex to remove closed center plug.
3. Use a 2.5 mm internal hex to remove orifice.
4. Clean or replace orifice. Install orifice. Torque to 4 Nm [35 lbf•in].
5. Install new seal and install closed center plug. Torque to 8 Nm [71 lbf•in].
6. Install new O-ring and install plug. Torque to 35 Nm [130 lbf•in].
Service Manual
PVG 32 Proportional Valve Group
PVG 32 Component Troubleshooting
©
Danfoss | February 2017 11039167 | AX00000031en-US0301 | 23
