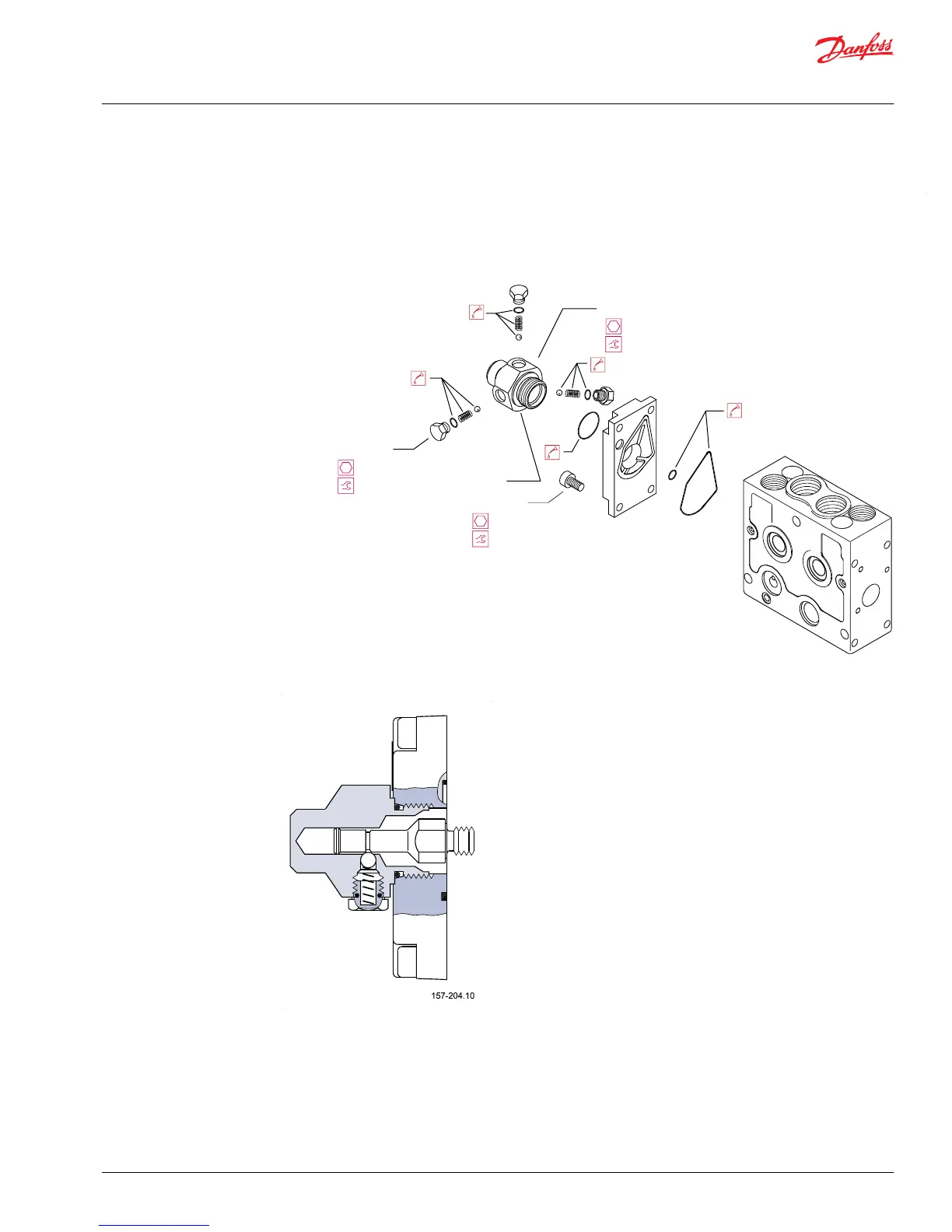

PVMR module
P107 811E
Mechanical detent
11 mm
4 Nm
[35 lbf•in]
Plug (x3)
5 mm
8 Nm
[71 lbf•in]
Screw (x4)
36 mm
15 Nm
[133 lbf•in]
Plug
Service Manual
PVG 32 Proportional Valve Group
PVG 32 Component Troubleshooting
©
Danfoss | February 2017 11039167 | AX00000031en-US0301 | 43
