STARTING AND CHARGING THE GATEWAY
View of Secop Bluetooth®
Gateway
Switching on To switch on the gateway:
1. Plug the Secop Bluetooth® gateway into the RS485 communication interface of the controller.
2. Switch on the Secop Bluetooth® gateway.
3. The gateway enters operating mode. LED 2 ashes green rapidly for approx. 3 seconds and then
slowly green. (For LED sequences, please see the overview in section 6.)
The Secop Bluetooth® gateway is equipped with a high-performance rechargeable battery, so an external
power source is not required. This makes the gateway particularly suitable in mobile applications.
We recommend charging the battery before using the device for the rst time.
To avoid overcharging and faulty operation, always use the battery charger supplied with the gateway.
The time required for full charging is approximately 2 hours.
To charge the battery:
1. Connect the charger to the USB port at the rear of the Bluetooth® gateway
2. Then connect the charger to the wall socket.
3. The status of the charging process is indicated by LED1 (Charging) on the gateway, as follows:
Battery status, during charging with the USB power supply
Charging the battery
LED1 Meaning
RED Battery is charging - charge duration to full capacity for empty battery approx. 2 hours
OFF RS485 Secop Bluetooth® gateway is not connected to the charger or the battery is fully charged.
1. Keep the gateway fully charged, so it is ready for eld work.
2. Keep an USB-cable/charger as a backup in the car just for the case someone forgets to charge the
gateway battery
Recommandations

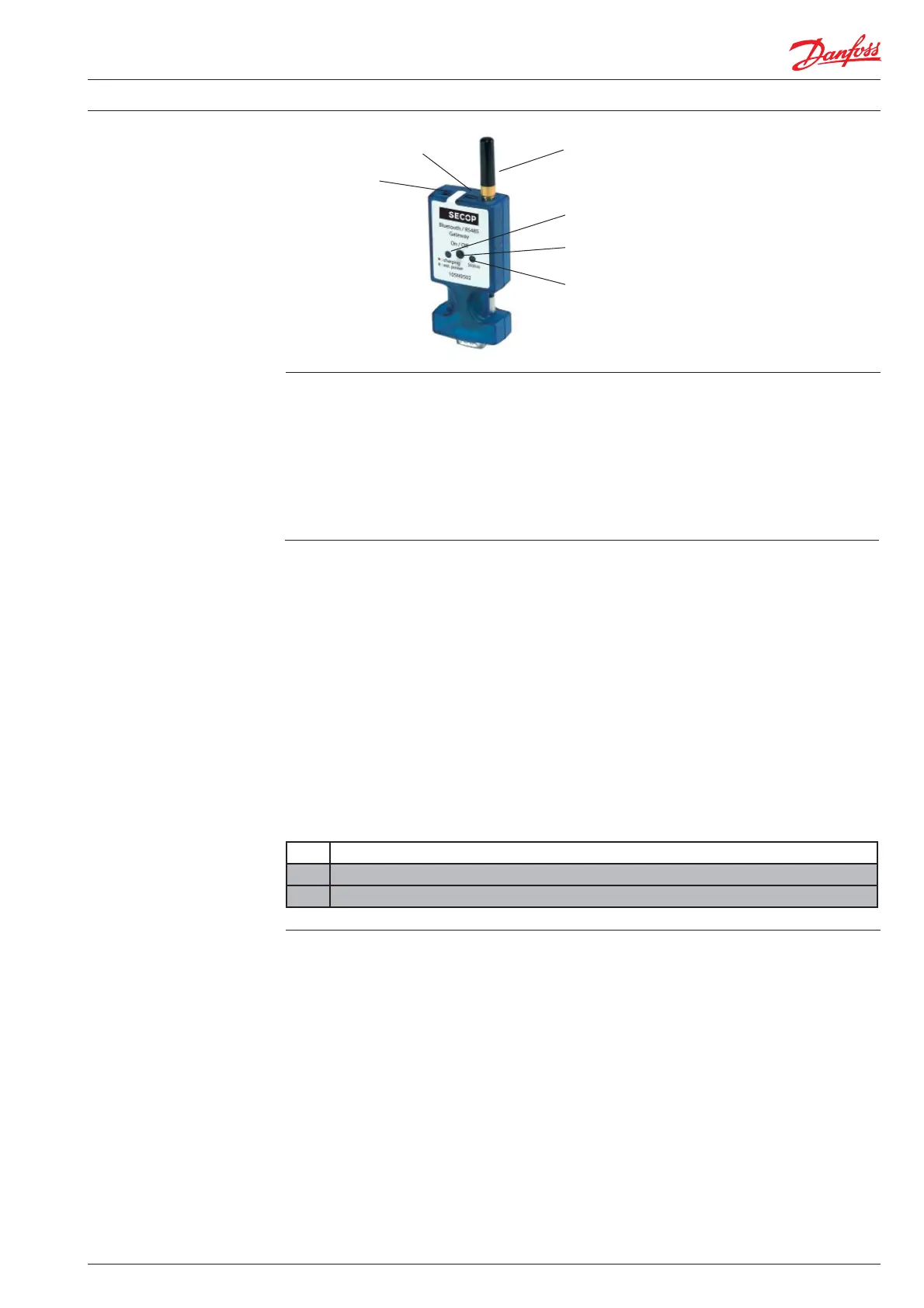

USB port for
charging battery
Antenna
DC power jack
6-24V DC supply
LED1 (battery
status)
On/O push
button switch
LED2 (operating
status
