Page #37 background image

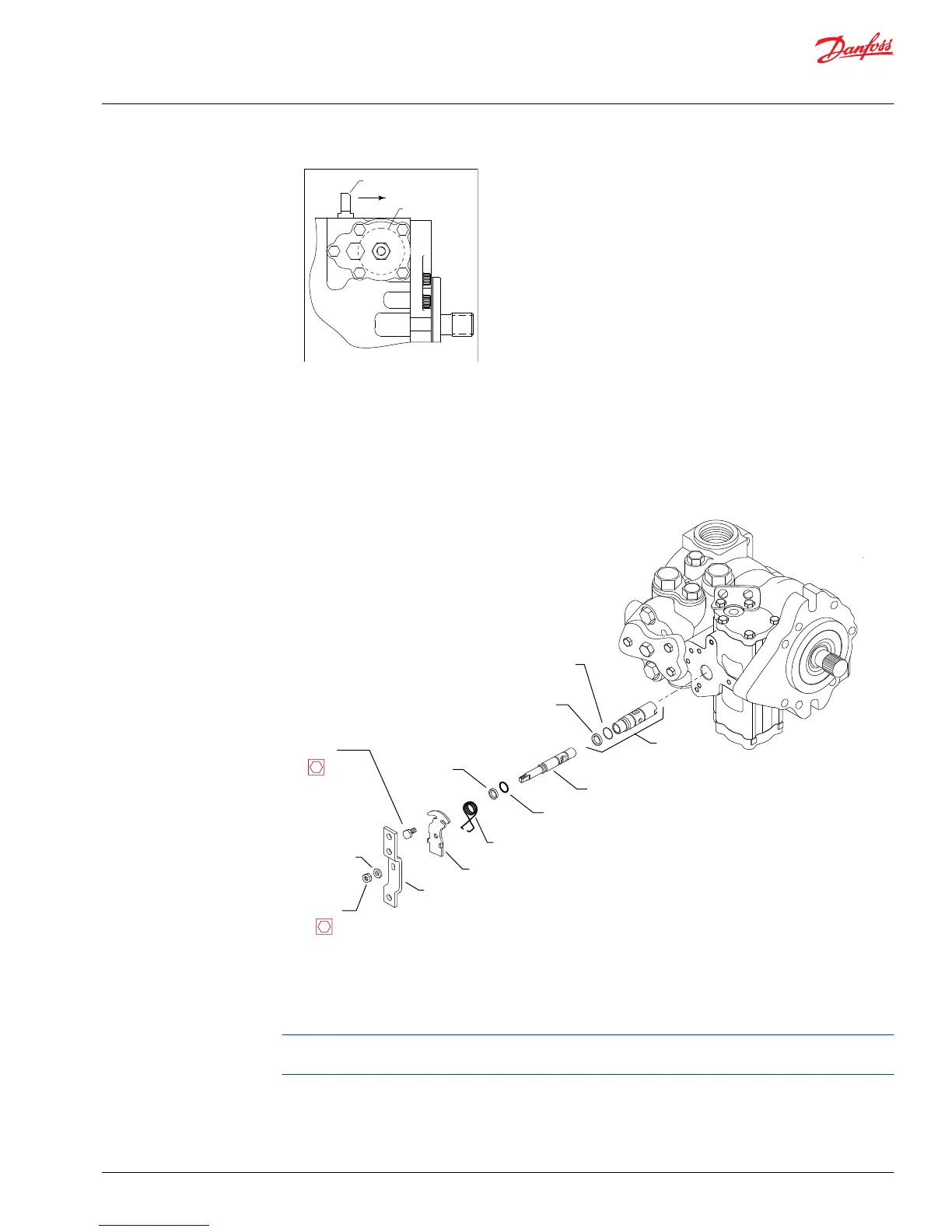

P107 958E
Servo piston
Alignment slot
3. Install neutral return spring (1214), neutral return bracket (1216), handle (1215), and washer (1235)
onto spool (1207).
4. Using a 1/2 in. hex wrench, install lock nut (1213). Torque to 15 N•m [11 lbf•ft].
5. Lubricate and install spool (1207) into sleeve (1402).
6. Using a 3/8 in. hex wrench, install screw (1210). Torque to 14 N•m [10 lbf•ft]. See Manual Displacement
Control Neutral-Return Bracket Adjustment on page 23, for adjustment procedure.
Manual displacement control
P106 639E
1213
1/2 in
1210
3/8 in
302
1214
1216
1215
1208
1235
1207
303
1209
1402
Electronic displacement control/hydraulic displacement control
Removal
If you suspect control of failure, replace control and test pump for proper operation. When installing
control, ensure that sleeve groove engages spring pin on swashplate.
Service Manual
Series 40 M46 Variable Pumps
Minor repair
©
Danfoss | September 2017 11026743 | AX00000027en-US0202 | 37
