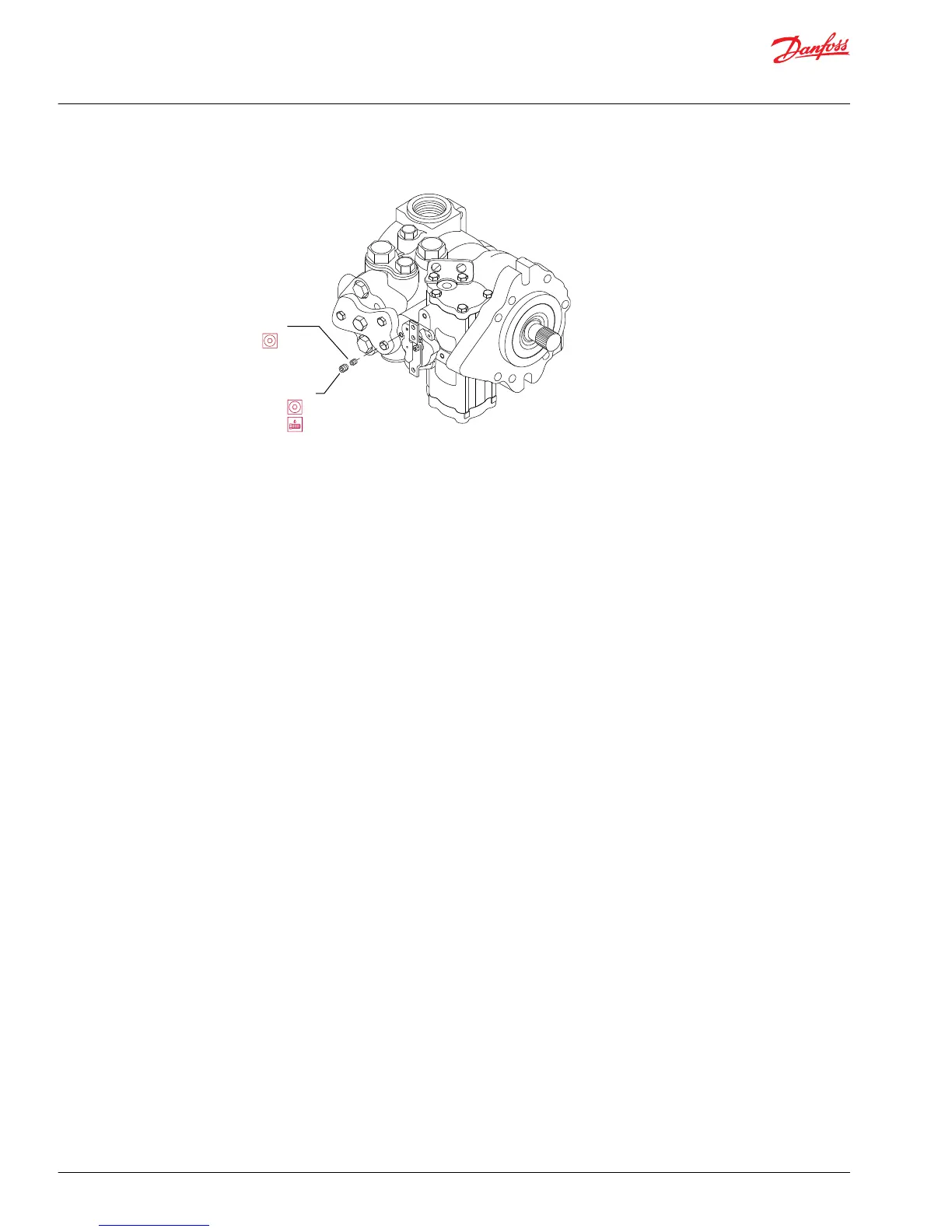

MDC orifice repair
P106 654E
1219
3/16 in
1401
1/8 in
EDC/HDC orifice repair
Removal
1. Remove servo covers. See Displacement limiter on page 28, for servo cover removal and installation
instructions.
2. Using a 7/32 in. internal hex wrench, remove orifice plugs (1403 and 1404).
Inspection
Clean orifice. Replace if necessary.
Reassembly
1. Using a 7/32 in. internal hex wrench, install orifice plugs (1403 and 1404). Torque to 3 N•m [2 lbf•ft].
Service Manual
Series 40 M46 Variable Pumps
Minor repair
40 |
©
Danfoss | September 2017 11026743 | AX00000027en-US0202
