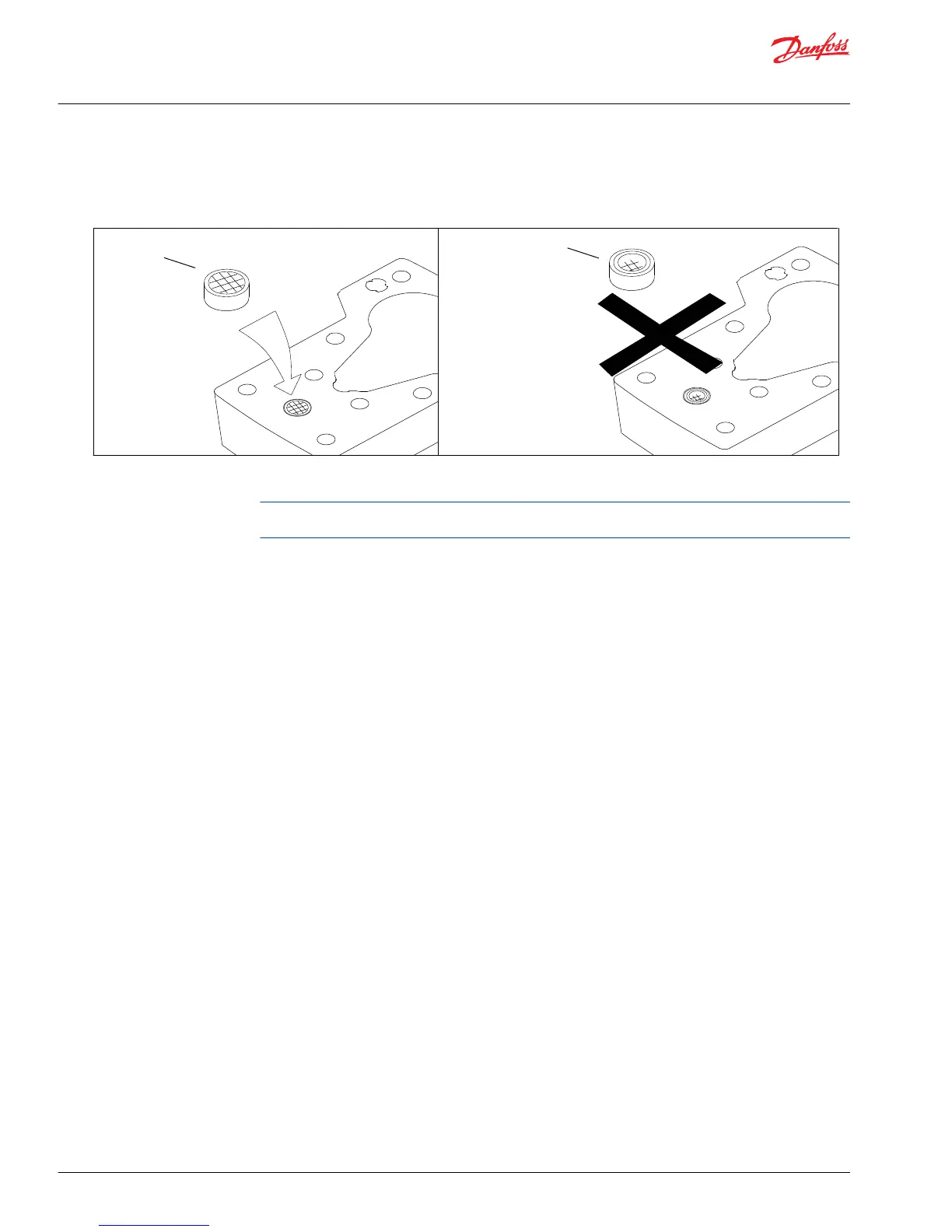

5. If you removed screen (D084), install a new one. Install with the mesh facing outward (see drawing).
Proper screen orientation
P106 519E
D084
D084
Incorrect screen
orientation
Correct screen
orientation
6. Install the control module and six cap screws (D250).
Remove plug on top of control to ensure the swashplate feedback pin is properly positioned in the
center of the control module when installing control.
Service Manual
Series 40 M46 Variable Pumps
Minor repair
42 |
©
Danfoss | September 2017 11026743 | AX00000027en-US0202
