VUIGI102 | 17© Danfoss | 2018.01

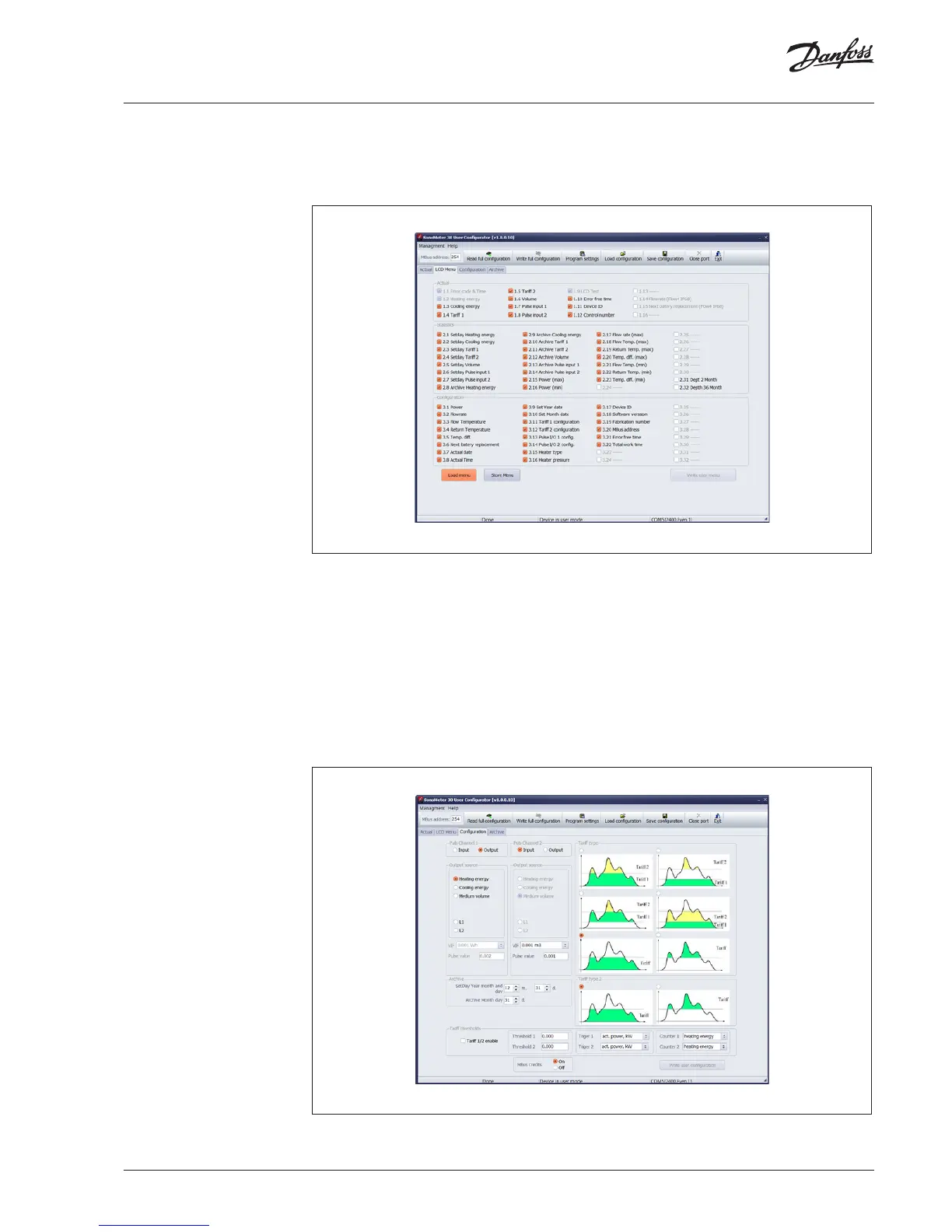

5.3.2.2 LCD Menu window
LCD configuration can be done in LCD Menu window. Selected parameters will be displayed in the
device LCD display.
Fig. 5.8 LCD Menu
Press Read, then select parameters and press Write.
If device LCD is successfully configured the message Device Ready will pop up.
LCD parameters can be changed only in test mode.
LCD configuration can be saved in the text file. Press Save display configuration to save LCD
configuration into file, or press Load display configuration to get LCD configuration from file.
5.3.2.3 Configuration window
Device pulse channels, archive time values and tariffs are configured in the window Configuration.
TEST mode needed.
Fig. 5.9 Configuration window
5. Meter access and
configuration
(continuous)
