Installation & User Guide SonoSelect and SonoSafe

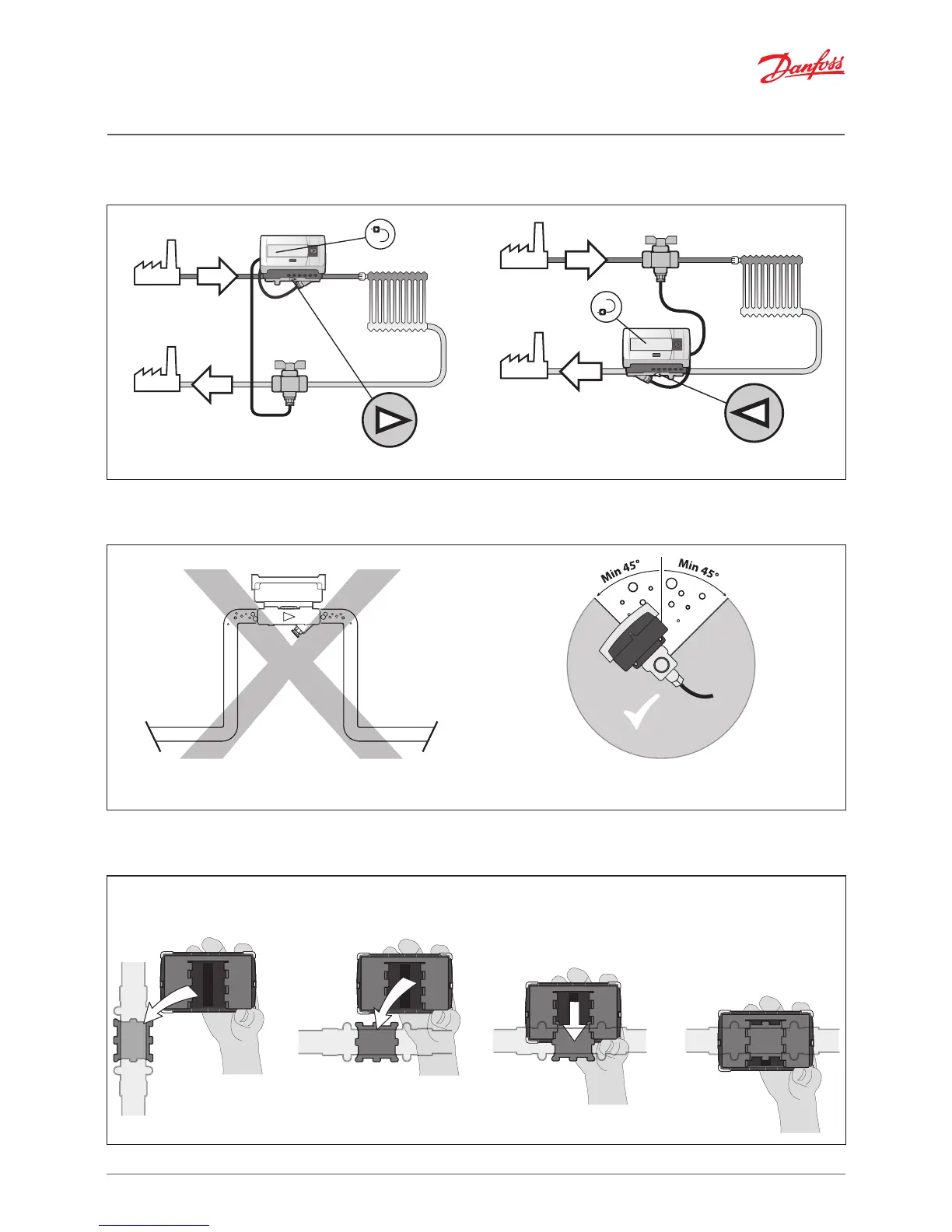

2.2 Identification of installation: Supply/Return pipe installation
Supply installation Return installation
Heat meters have red temp sensor in supply pipe and all cooling meters have blue temp sensor in supply pipe
2.3 Flow sensor installation
Pipe position: No limitations but avoid positions
where air can be collected.
Rotation in pipe axis: Flow sensor should be angled
in 45 to 315° to avoid air collection in flow sensor.
2.4 Mounting orientation, calculator
4 x 90°
Click!
1a.
2.
3.
1b.
