23 of 114M-AP-001-EN Rev. Q

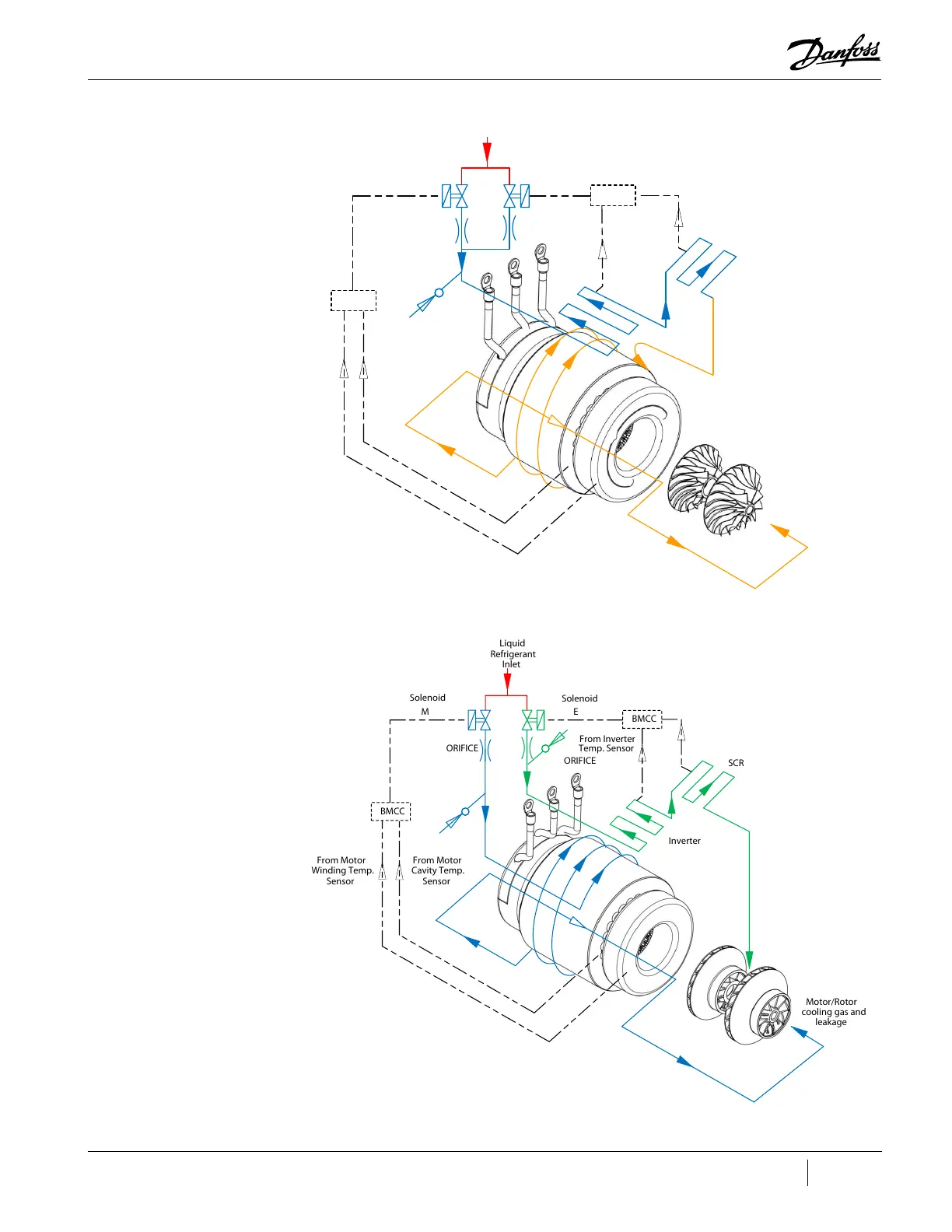

Figure 3-3 Compressor Cooling Circuit (TGS230 / TTS300)

Figure 3-4 Compressor Cooling Circuit (TTS300 Split-Cooling, TGS310, TTS350, TGS390, TGS490, TTS400, TT700, and TGS520)

BMCC

From Motor

Cavity Temp.

Sensor

From Motor

Winding Temp.

Sensor

Motor/Rotor

cooling gas and

leakage

BMCC

From Inverter

Temp. Sensor

Inverter

SCR

ORIFICEORIFICE

Solenoid

Liquid

Refrigerant

Inlet

BMCC

From Motor

Cavity Temp.

Sensor

From Motor

Winding Temp.

Sensor

Motor/Rotor

cooling gas and

leakage

BMCC

From Inverter

Temp. Sensor

Inverter

SCR

ORIFICE

Solenoid

Liquid

Refrigerant

Inlet
