16-68 Pulse Input #33 [Hz]
Range: Function:
0* [0 - 130000 ] View the actual value of the frequency
applied at terminal 33 as an impulse input.
16-69 Pulse Output #27 [Hz]
Range: Function:
0* [0 - 40000 ] View the actual value of impulses applied to
terminal 27 in digital output mode.
16-70 Pulse Output #29 [Hz]
Range: Function:
0* [0 - 40000 ] View the actual value of pulses to terminal 29
in digital output mode.
16-71 Relay Output [bin]
Range: Function:
0* [0 - 511 ] View the settings of all relays.

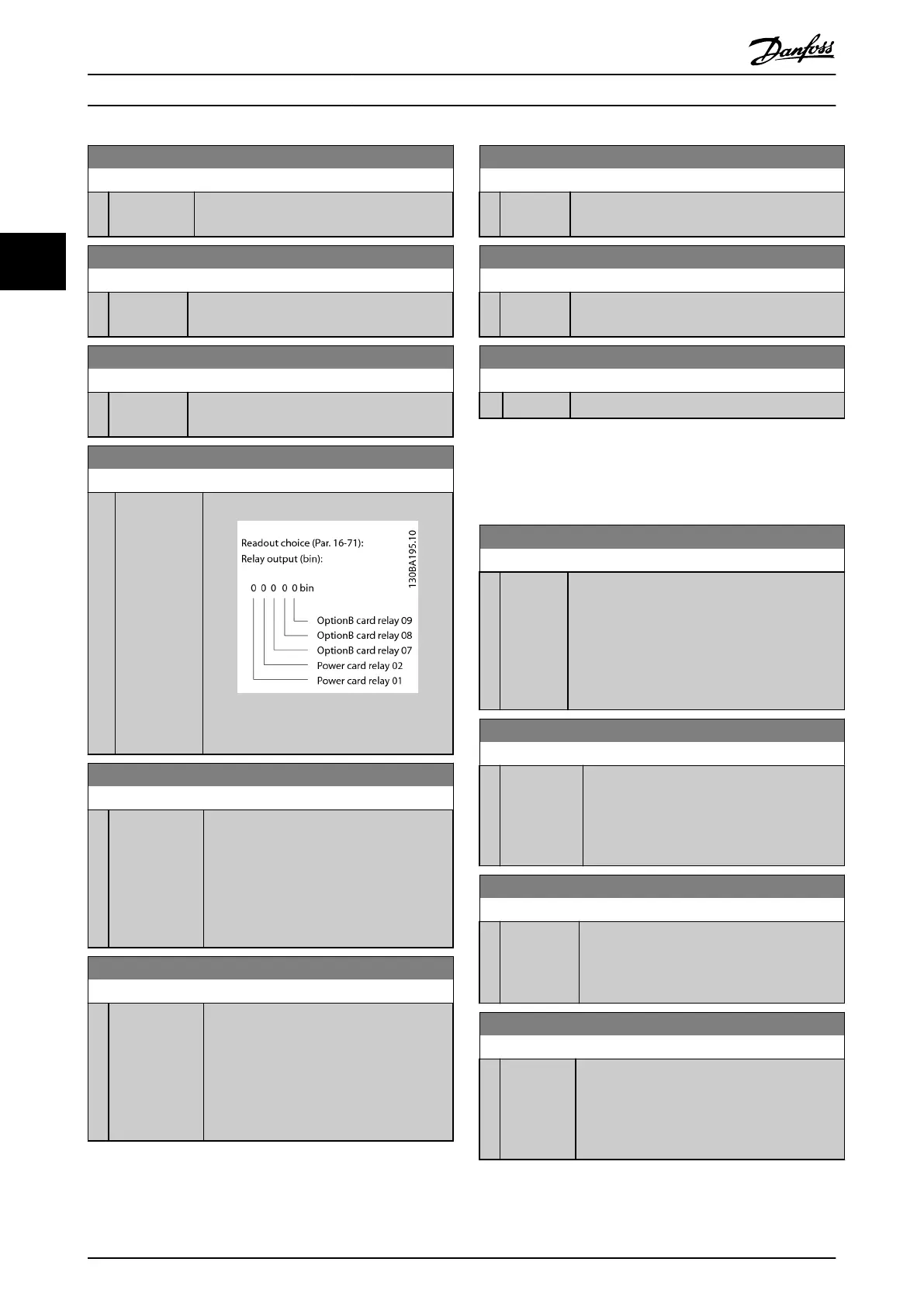

Illustration 3.46 Relay Settings
16-72 Counter A
Range: Function:
0* [-2147483648
- 2147483647 ]
View the present value of counter A.
Counters are useful as comparator operands,
see parameter 13-10 Comparator Operand.
The value can be reset or changed either via
digital inputs (parameter group 5-1* Digital
Inputs) or by using an SLC action
(parameter 13-52 SL Controller Action).
16-73 Counter B
Range: Function:
0* [-2147483648
- 2147483647 ]
View the present value of counter B.
Counters are useful as comparator operands
(parameter 13-10 Comparator Operand).
The value can be reset or changed either via
digital inputs (parameter group 5-1* Digital
Inputs) or by using an SLC action
(parameter 13-52 SL Controller Action).
16-75 Analog In X30/11
Range: Function:
0* [-20 - 20 ] View the actual value at input X30/11 of MCB
101.
16-76 Analog In X30/12
Range: Function:
0* [-20 - 20 ] View the actual value at input X30/12 of MCB
101.
16-77 Analog Out X30/8 [mA]
Range: Function:
0* [0 - 30 ] View the actual value at input X30/8 in mA.
3.16.6 16-8* Fieldbus & FC Port
Parameters for reporting the bus references and control
words.
16-80 Fieldbus CTW 1
Range: Function:
0* [0 -
65535 ]
View the 2-byte control word (CTW) received
from the bus master. Interpretation of the control
word depends on the eldbus option installed
and the control word prole selected in
parameter 8-10 Control Prole.
For more information, refer to the relevant
eldbus manual.
16-82 Fieldbus REF 1
Range: Function:
0* [-200 - 200 ] View the 2-byte word sent with the control
word from the bus master to set the reference
value.
For more information, refer to the relevant
eldbus manual.
16-84 Comm. Option STW
Range: Function:
0* [0 - 65535 ] View the extended eldbus communication
option status word.
For more information, refer to the relevant
eldbus manual.
16-85 FC Port CTW 1
Range: Function:
0* [0 -
65535 ]
View the 2-byte control word (CTW) received
from the bus master. Interpretation of the
control word depends on the eldbus option
installed and the control word prole selected
in parameter 8-10 Control Prole.
Parameter Descriptions
VLT
®
HVAC Drive FC 102
134 Danfoss A/S © 03/2015 All rights reserved. MG11CE02
