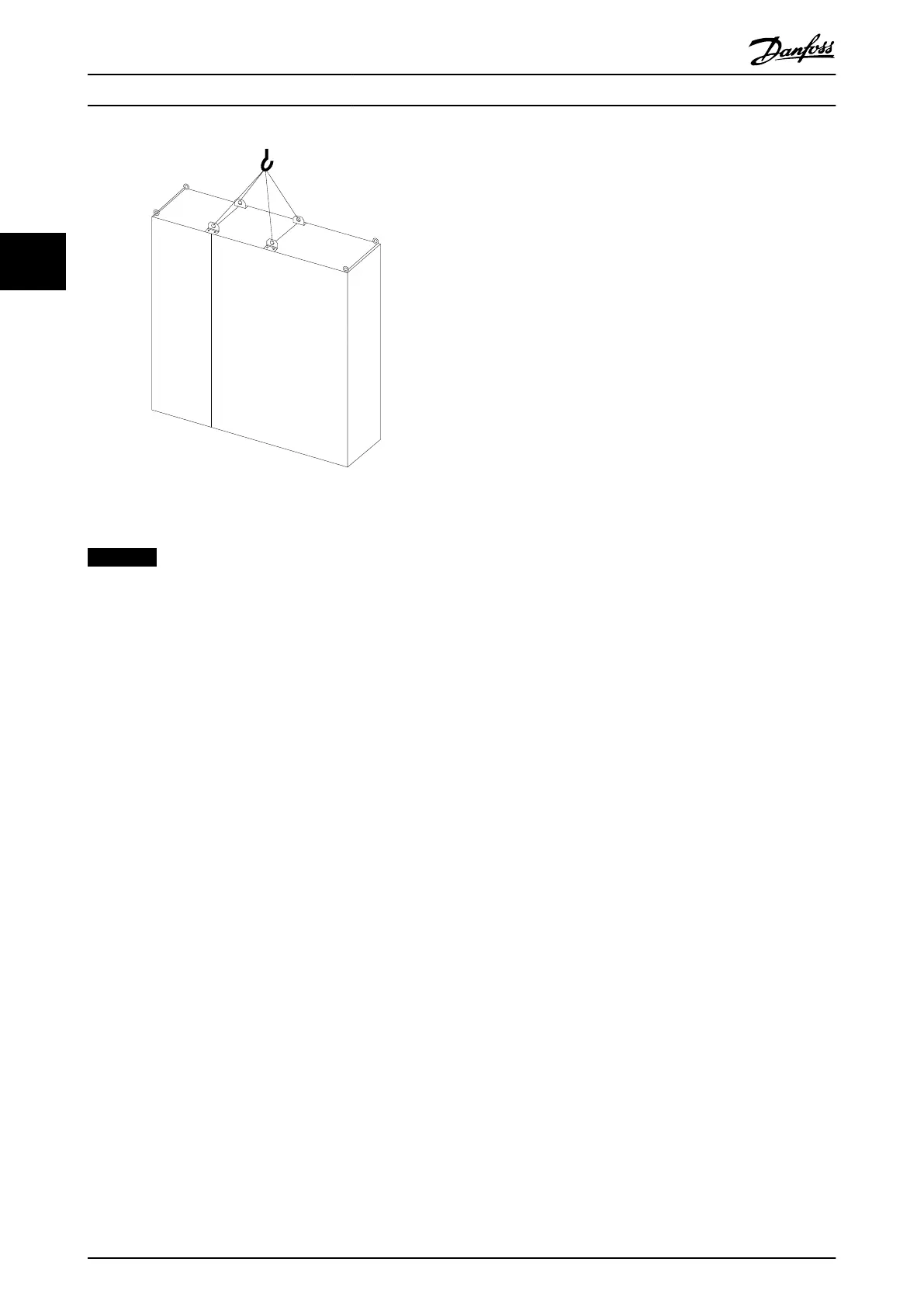

Illustration 3.8 Recommended lifting method, Enclosure Type
F11/F12/F13/F14
NOTICE
The plinth is provided in the same packaging as the
frequency converter but is not attached to enclosure
types F1-F4 during shipment. The plinth is required to
allow airflow to the frequency converter to provide
proper cooling. The F enclosures should be positioned
on top of the plinth in the final installation location. The
angle from the top of the frequency converter to the
lifting cable should be 60° or greater.
In addition to the drawings above a spreader bar is an
acceptable way to lift the F enclosures.
How to Install
VLT
®
Automation Drive FC 300 Operating Instructions
10 MG33U402 - Rev. 2013-12-16
33
