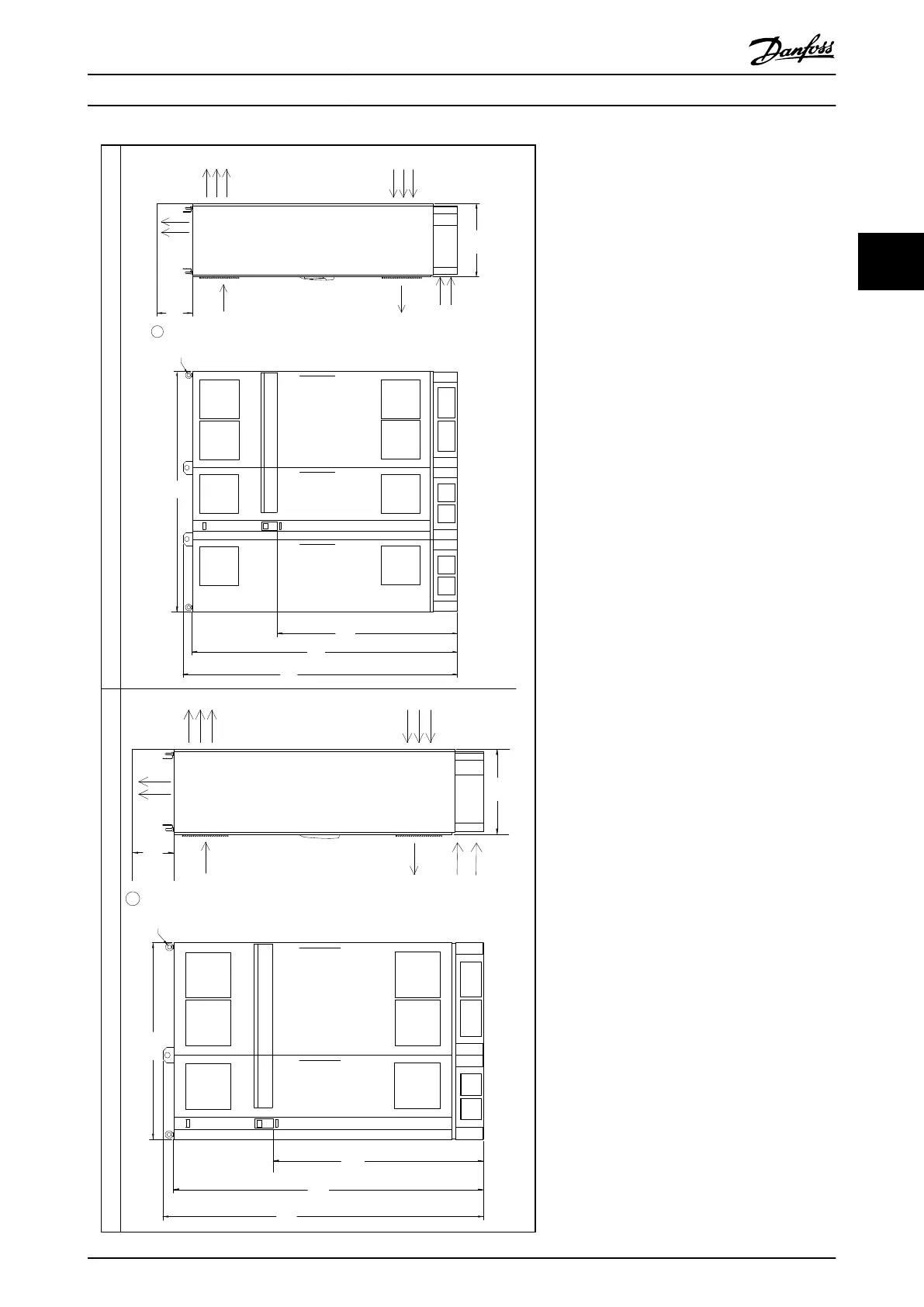

F1 IP21/54 - NEMA 1/12 F3 IP21/54 - NEMA 1/12
1
130BB027.10
2281.4
(89.82)
2206.4
(86.87)
1499.2
(59.02)
1400.0
(55.12)
ø29.0
(1.14)
225.0
(8.85)
607.0
(23.9)
225.0
(8.85)
1
130BB029.10
2280
(89.7)
2205
(86.8)
1497
(58.9)
1997
(78.6)
ø29
( 1.1)
607
(23.9)
1) Minimum clearance from ceiling
