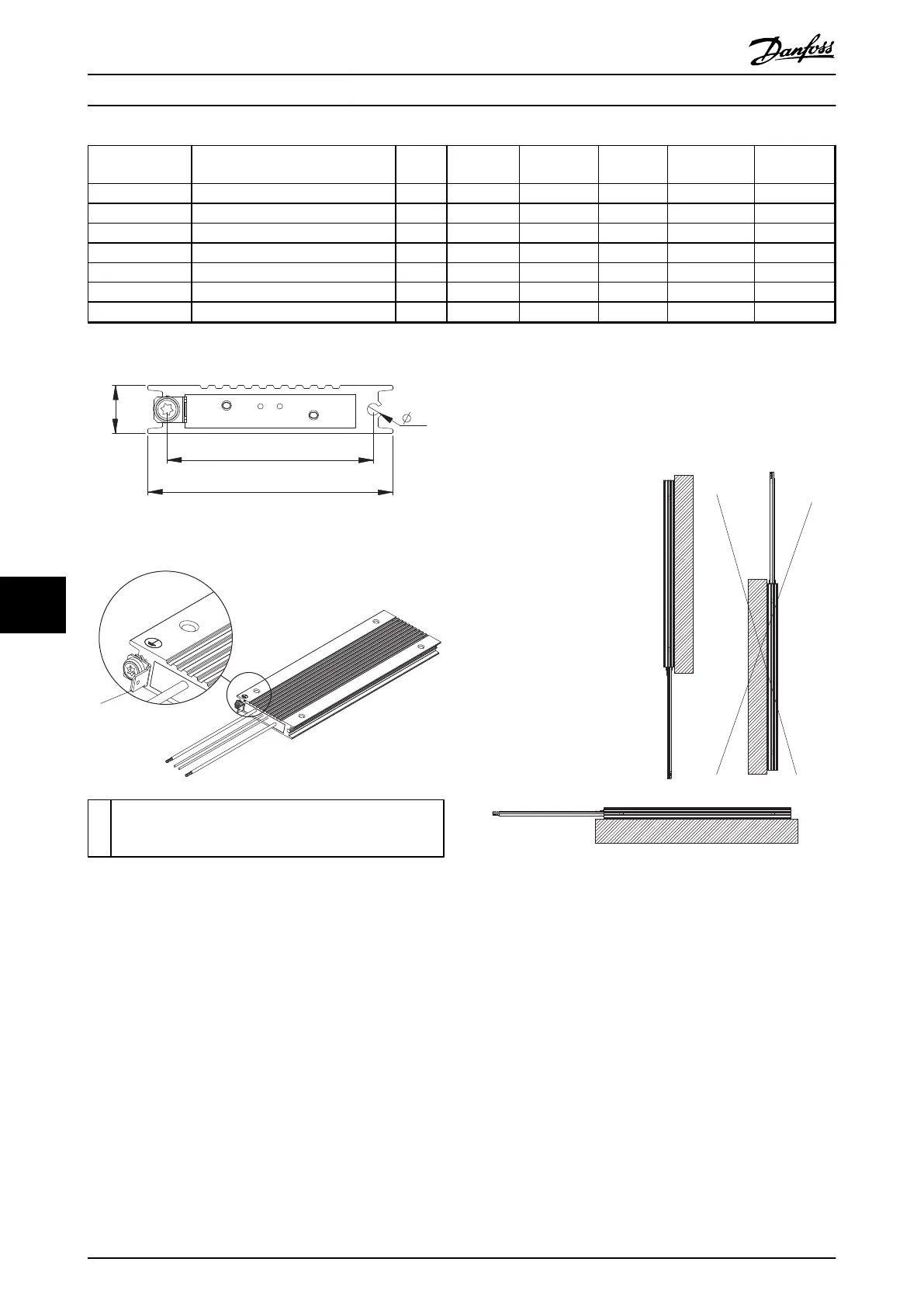

Danfoss VLT Brake Resistor MCE 101

Danfoss P/N Typecode
[Ω]
L ±2 mm L ±0.08 in
L1 ±0.5
mm
L1 ±0.02 in
Weight [kg]
175U3101 MCE101A1K20P200RE54CAW 1200 251 9.8 204 8.03 0.54
175U3300 MCE101A145RP300RE54CAW 145 355 13.98 154 (x2) 6.06 (x2) 1.58
175U3308 MCE101A850RP200RE54CAW 850 251 9.8 204 8.03 0.54
175U3309 MCE101A630RP300RE54CAW 630 355 13.98 154 (x2) 6.06 (x2) 1.58
175U3325 MCE101A35R0P300RE54CAW 35 355 13.98 154 (x2) 6.06 (x2) 1.58
175U3342 MCE101A200RP300RE54CAW 200 355 13.98 154 (x2) 6.06 (x2) 1.58
175U3361 MCE101A270RP300RE54CAW 270 355 13.98 154 (x2) 6.06 (x2) 1.58
Table 9.14 Mechanical Dimensions
[2.52]
64
[2.99]
76
[0.15]
3.7
[0.59]
15
130BD243.10
Illustration 9.36 IP54, End View Cable End
130BD245.12
1
1
PE
Male fast-on
tab 6.3x0.8
Illustration 9.37 IP54, 3D View
Mechanical mounting (see Illustration 9.38):
•
Vertical with cables down, or
•
Horizontal
130BD244.10
Illustration 9.38 Mechanical Mounting
