Danfoss VLT CDS 302

3.2.3 Mechanical Dimensions
IP 20 Chassis T2 [240 V] T4 [480 V] T6 [575 V]
VSH088 [15 kW] B4 B3 B3
VSH117 [18 kW] C3 B4 B4
VSH170 [22 kW] C3 B4 B4
IP 55 NEMA 12
VSH088 [15 kW] C1 B1 B1
VSH117 [18 kW] C1 B2 B2
VSH170 [22 kW] C1 B2 B2
Table 3.3 Related VSH Numbers
130BA219.11
1
130BA228.11
1

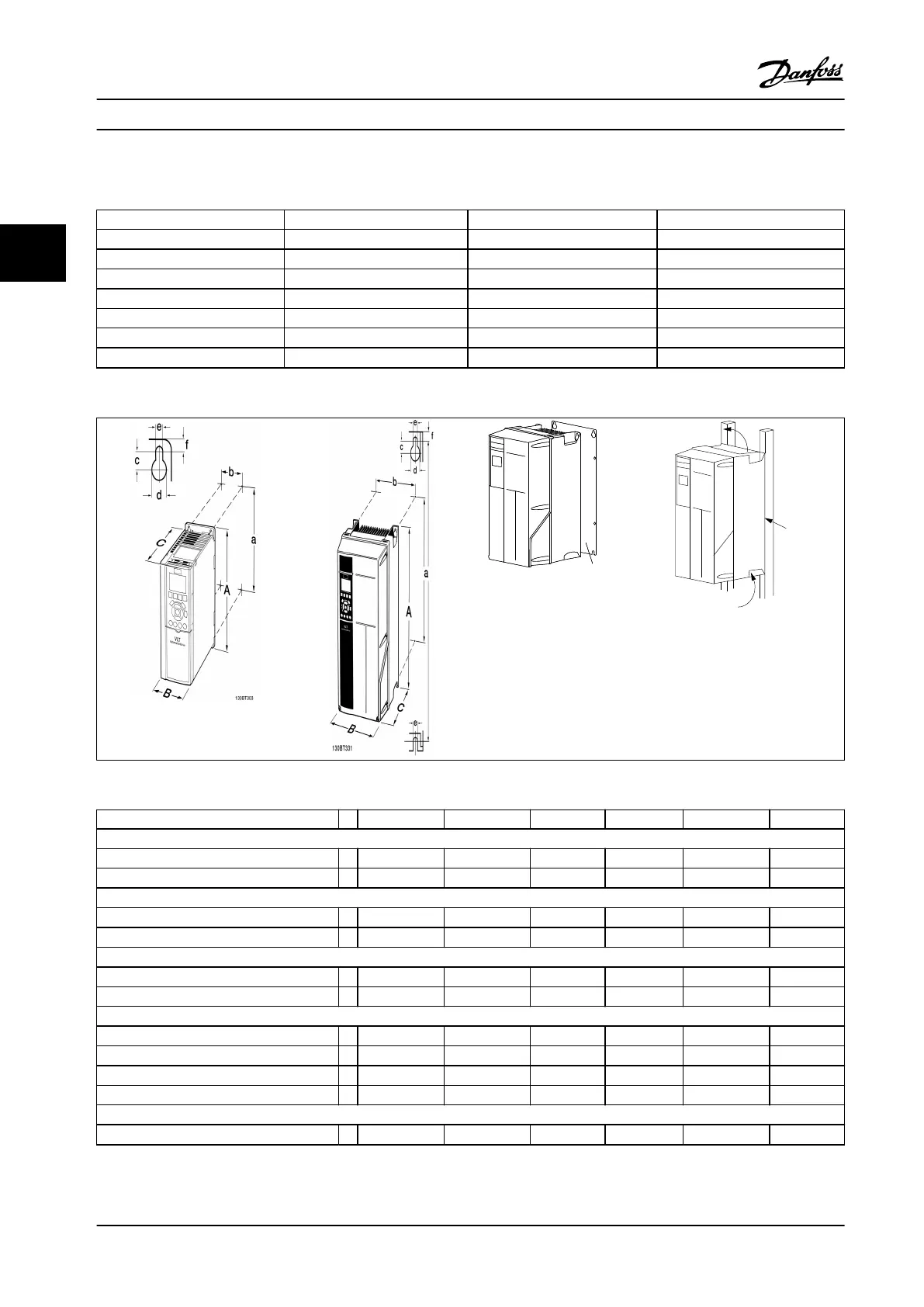

Table 3.4 Dimensional Drawings
B1 B2 B3 B4 C1 C3
Height [inch/mm]
Backplate A 18.90/480 25.59/650 15.71/399 20.47/520 26.77/680 21.65/550
Distance between mounting holes a 17.87//454 24.57/624 14.96/380 19.49/495 25.51/648 20.51/521
Width [inch/mm]
Back plate B 9.53/242 9.53/242 6.50/165 9.06/230 12.13/308 12.13/308
Distance between mounting holes b 8.28/210 8.28/210 5.51/140 7.87/200 10.71/272 10.63/270
Depth [inch/mm]
Without option C 10.24/260 10.24/260 9.80/249 9.53/242 12.21/310 13.11/333
With option C 10.24/260 10.24/260 10.24/260 9.53/242 12.21/310 13.11/333
Screw holes [inch/mm]
c 0.47/12.0 0.47/12.0 0.32 0.49/12.0
d Ø 0.75/19.0 Ø 0.75/19.0 0.47/12.0 Ø 0.75/19.0
e Ø 0.35/9 Ø 0.35/9 0.34/8.8 0.33/8.5 Ø 0.35/9 0.33/8.5
f 0.35/9 0.35/9 0.31/7.9 0.59/15 0.38/9.8 0.67/17
Other Specications
Max. weight [lbs/kg] 50.4/23 59.53/27 26.46/12 51.81/23.5 99.21/45 77.16/35
Table 3.5 Mechanical Dimensions
How to Install
VLT
®
Compressor Drives CDS 302/CDS 303
