1.4.2 The Start-up Wizard
The built-in wizard menu guides the installer through the
set-up of the frequency converter in a clear and structured
manner to set-up an open loop application. An open loop
application is here an application with a start signal,
analog reference (voltage or current) and optionally also
relay signals (but no feed back signal from the process
applied).
FC
+24 V
DIG IN
DIG IN
DIG IN
DIG IN
COM DIG IN
A OUT/D OUT
A OUT/D OUT
18
19
27
29
42
55
50
53
54
20
12
01
02
03
04
05
06
R2
R1
+
0-10 V
Start
+10 V
A IN
A IN
COM
130BD872.10
45
Reference
15
PRESSURE SWITCH

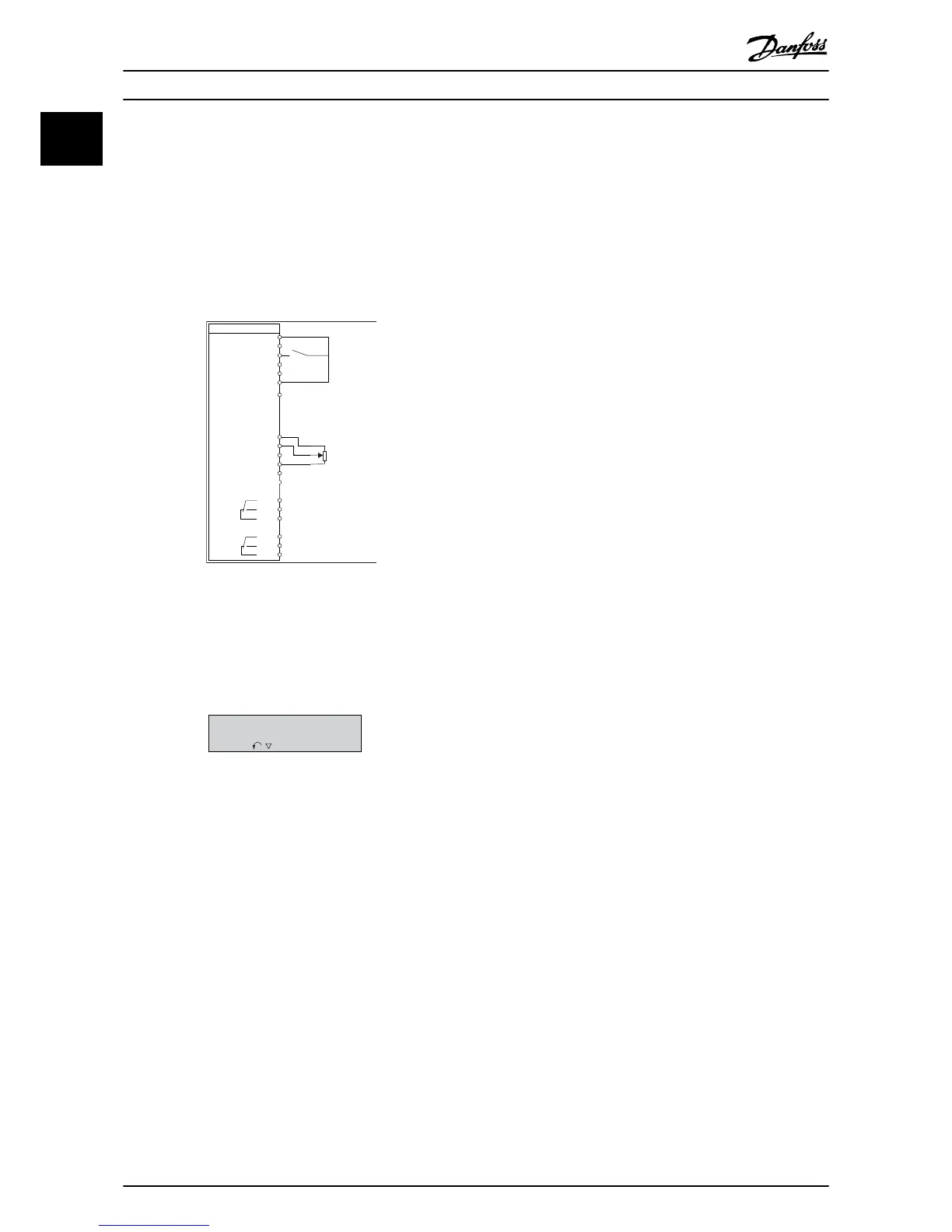

Illustration 1.13 Open Loop Application
The wizard is initially be shown after power-up until any
parameter has been changed. The wizard can always be
accessed again through the Quick Menu. Press [OK] to start
the wizard. Press [Back] to return to the status screen.
130BB629.10
Press OK to start Wizard
Push Back to skip it
Setup 1
Illustration 1.14 Start-up/Quit Wizard
