2 How to Program
2.1 Programming with MCT 10 Set-up
Software
The frequency converter can be programmed from the LCP
or from a PC via the RS485 COM port by installing the MCT
10 Set-up Software. Refer to chapter 1.6 Additional
Resources for more details about the software.
2.2 Local Control Panel (LCP)
The LCP is divided into 4 functional sections.
A. Display
B. Menu key
C. Navigation keys and indicator lights (LEDs)
D. Operation keys and indicator lights (LEDs)
130BB765.11
B
a
c
k
Com.
1-20 Motor Power
[5] 0.37kW - 0.5HP
Setup 1
A
B
1
12
13
14
15
11
11
10
9
8
7
6
5
4
3
2
C
D
S
t
a
tus
M
ain
M
enu
Q
uick
M
enu
Hand
On
OK
M
enu
Off
Reset
Auto
On
Alarm
Warn.
On
11

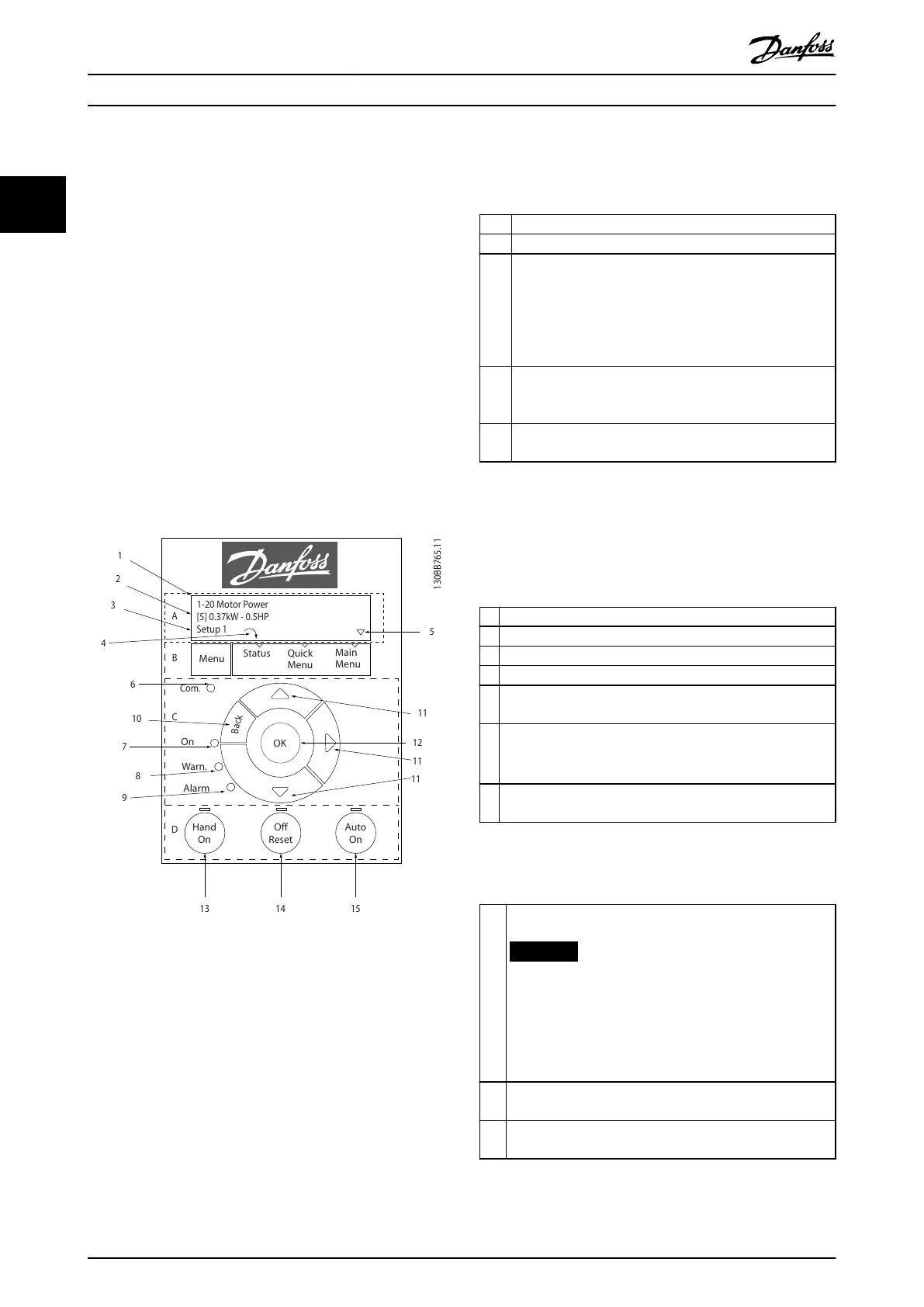

Illustration 2.1 Local Control Panel (LCP)
A. Display
The LCD-display is back-lit with 2 alphanumeric lines. All
data is shown on the LCP.
Information can be read from the display.
1 Parameter number and name.
2 Parameter value.
3 Set-up number shows the active set-up and the edit set-
up. If the same set-up acts as both active and edit set-up,
only that set-up number is shown (factory setting). When
active and edit set-ups dier, both numbers are shown in
the display (set-up 12). The number ashing, indicates the
edit set-up.
4 Compressor direction is shown to the bottom left of the
display – indicated by a small arrow pointing either
clockwise or counterclockwise.
5 The triangle indicates if the LCP is in Status, Quick Menu, or
Main Menu.
Table 2.1 Legend to Illustration 2.1
B. Menu key
Press [Menu] to select between Status, Quick Menu, or Main
Menu.
C. Navigation keys and indicator lights (LEDs)
6 Com LED: Flashes during bus communication.
7 Green LED/On: Control section is working.
8 Yellow LED/Warn.: Indicates a warning.
9 Flashing Red LED/Alarm: Indicates an alarm.
10 [Back]: For moving to the previous step or layer in the
navigation structure
11
[
▲
] [
▼
] [►]: For maneuvering between parameter groups,
parameters and within parameters. Can also be used for
setting local reference.
12 [OK]: For selecting a parameter and for accepting changes to
parameter settings.
Table 2.2 Legend to Illustration 2.1
D. Operation keys and indicator lights (LEDs)
13 [Hand On]: Starts the compressor and enables control of
the frequency converter via the LCP.
NOTICE
Terminal 27 Digital Input (parameter 5-12 Terminal
27 Digital Input) has stop inverse as default setting.
This means that [Hand On] does not start the
compressor if there is no 24 V to terminal 27.
Connect terminal 12 to terminal 27.
14 [O/Reset]: Stops the compressor (O). If in alarm mode,
the alarm is reset.
15 [Auto On]: The frequency converter is controlled either via
control terminals or serial communication.
Table 2.3 Legend to Illustration 2.1
How to Program
VLT
®
Compressor Drive CDS 803
8 Danfoss A/S © 06/2019 All rights reserved. MG18P202
