Danfoss VLT FC 100 Service Manual

130BX0502.10
1
2
3
4
6
7
8
9
10
11
12
13
14
15
16
17
5

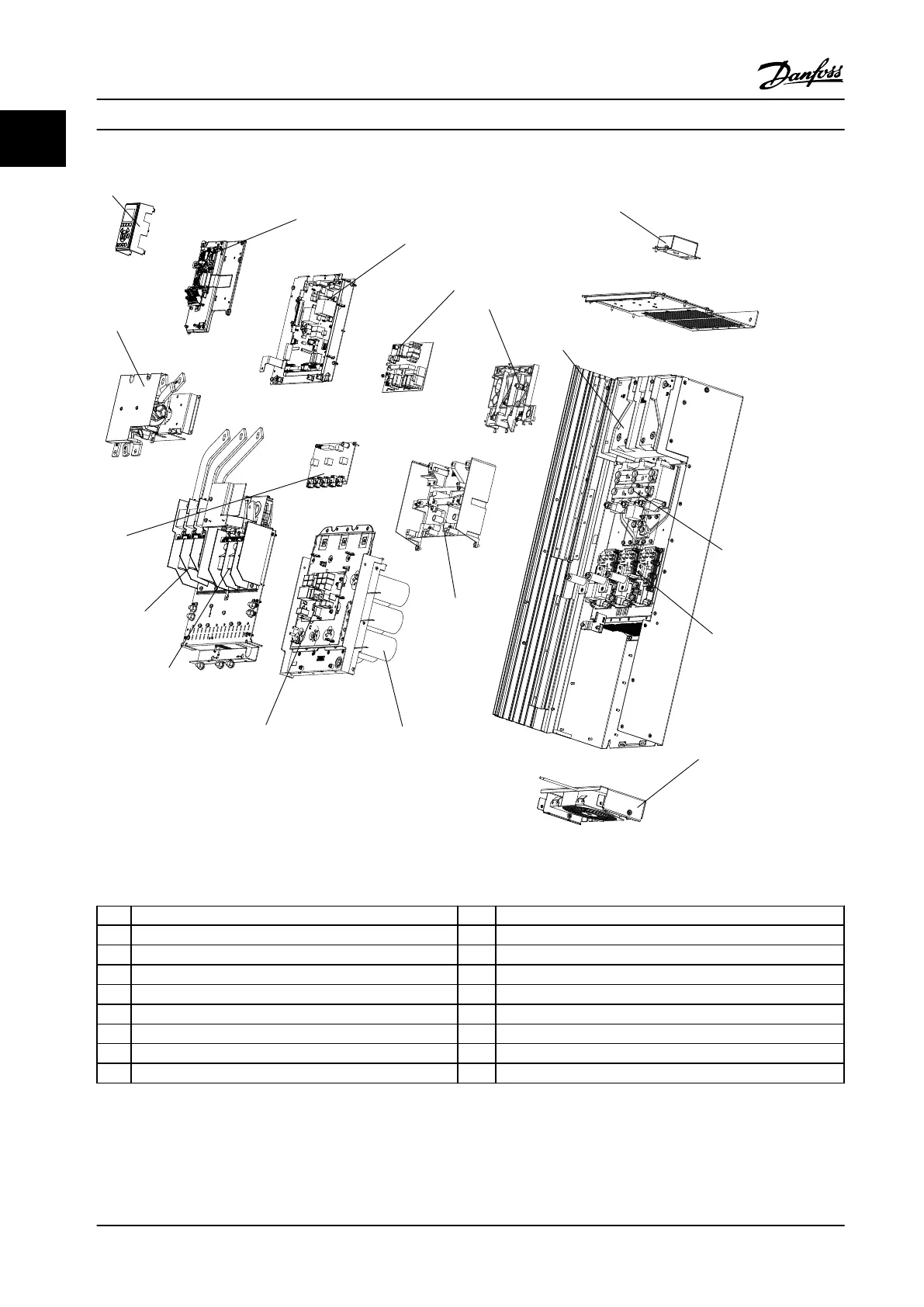

Figure 1.2 Exploded View D4h Frame Size (D2h Frame is similar)
1
Local control panel mounting bracket 10 Heatsink fan
2 Control card and mounting plate 11 Gate drive support bracket
3 Power card and mounting plate 12 Capacitor bank
4 Inrush card 13 Balance/High frequency card
5 Inrush card mounting bracket 14 Motor output terminals
6 Top fan (IP20 only) 15 Line power input terminals
7 DC inductor 16 Gate drive card
8 SCR/Diode modules 17 (optional) RFI filter
9 IGBT modules
Table 1.10 Legend to Figure 1.2
Introduction
Service Manual
12 Danfoss A/S © Rev. 2014-02-10 All rights reserved. MG94A222
1
1
